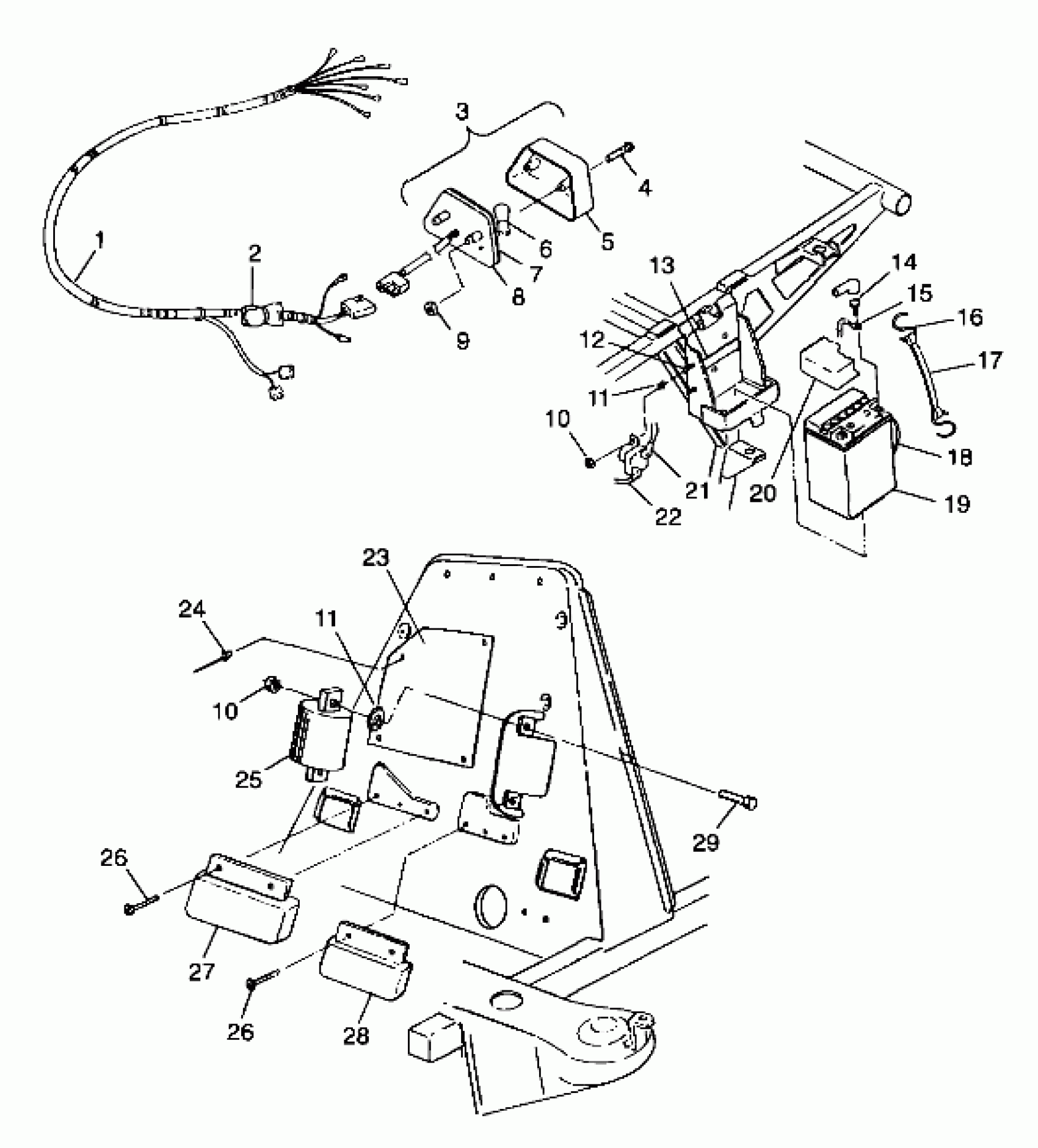

Polaris XPLORER 300 - A99CC28CA ELECTRICAL/TAILLIGHT - A99CC28CA (4949484948c009) Diagram

#

Description
Price

1

HARNESS-MAIN WIRE

2460554

Unavailable

2

KIT,CKT.BRKR,20 AMP

2200593

$63.99

3

TAIL LIGHT ASM. (Incl. 5-9)

2432034

$55.99

4

Screw, Taillight

4032029

$4.79

5

LENS,TAILLIGHT

4032046

$32.37

6

BULB,TAILLIGHT

4030043

$6.46

7

GASKET,TAILLIGHT

4032045

$4.03

8

BACKING,TAILLIGHT

4032064

$83.99

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

NUT(10)

7541925

$1.49

10

NUT(10)

7541925

$1.49

11

WASHER(10)

7571602

$4.79

11

WASHER(10)

7571602

$4.79

12

SCREW(10)

7512027

$1.49

13

PAD-BATTERY

5810290

$7.27

14

BOLT,BATT,KIT(SHORT) (Short)

2200361

$3.99

15

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

16

HOOK-BATT.H/D(10)

7010032

$1.59

17

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

18

TUBE,BATTERY VENT

5432077

Unavailable

19

Battery

4140006

$99.99

20

COVER,BATTERY

5431769

$14.39

21

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

22

CABLE,SOL/START,DBLBOOT

4010129

Unavailable

23

BOARD,TERMINAL,150 ALT,ATV

4040063

Unavailable

24

RIVET,(50)

7621336

$1.59

25

Ignition Coil Complete (See Magneto Pg. D2, Ref. 19)

-------

Unavailable

26

SCREW,(10)

7512024

$4.79

26

SCREW,(10)

7512024

$4.79

27

LIMITER,REV.SPEED

4060085

Unavailable

28

RECTIFIER/REGULATOR,LR39-1

4060193

Unavailable

29

SCREW(10)

7512007

$3.99
