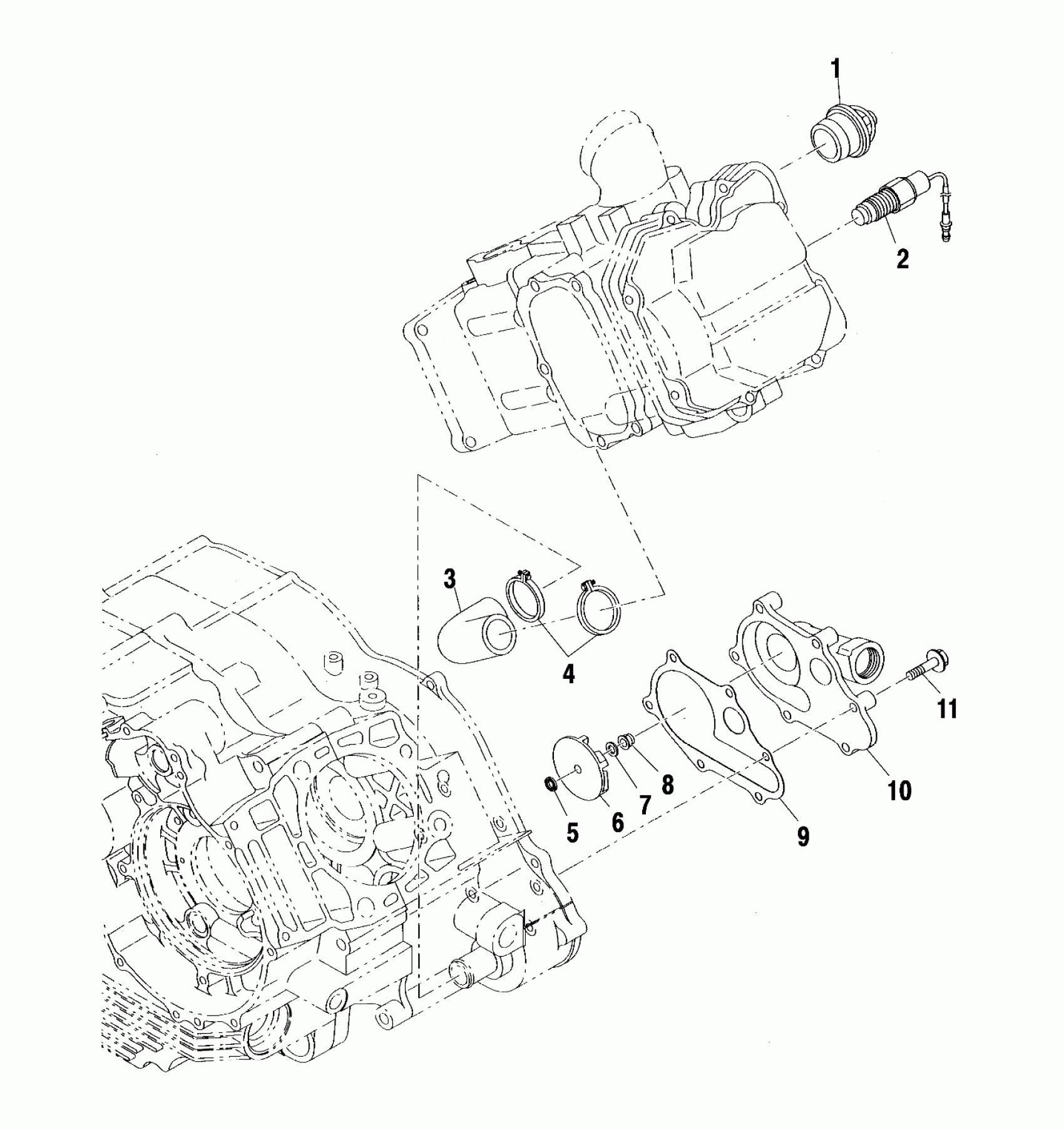

Polaris XPEDITION 425 - A02CK42AA/AB WATER PUMP - A02CK42AA/AB (4970327032C14) Diagram

#

Description
Price

1

THERMOSTAT

3084940

$93.08

2

Switch, Thermostat

3085352

$129.51

3

Hose, Main

3086217

$19.68

4

Clamp, Hose

3084191

Unavailable

5

WASHER, SEAL

3084942

Unavailable

6

Impeller

3086214

$11.11

7

GASKET, ALUMINUM

3083138

$1.19

8

NUT, SELF LOCK

3085077

$9.52

9

Gasket, Water Pump

3086216

$6.59

10

Cover, Water Pump

3086215

$49.21

11

Bolt, Flange

3086498

$3.17
