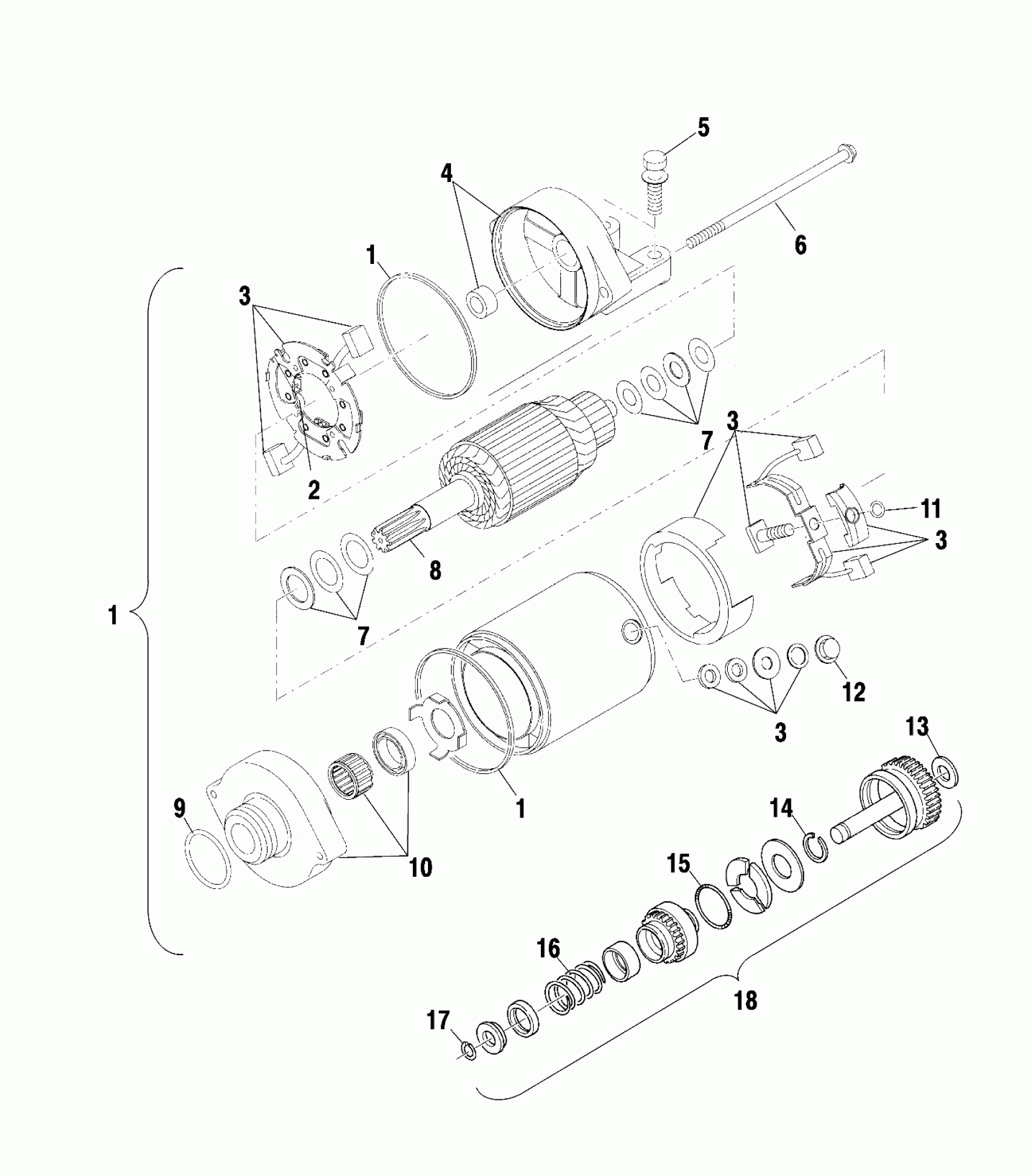

Polaris XPEDITION 425 - A02CK42AA/AB STARTING MOTOR - A02CK42AA/AB (4970327032D04) Diagram

#

Description
Price

1

RING, RUBBER

3084405

Unavailable

1

Motor, Starting [Incl. 1-4,6-12]

3086240

Unavailable

1

RING, RUBBER

3084405

Unavailable

1

Motor, Starting [Incl. 1-4,6-12]

3086240

Unavailable

1

RING, RUBBER

3084405

Unavailable

1

Motor, Starting [Incl. 1-4,6-12]

3086240

Unavailable

2

Spring, Brush

3240111

$1.38

3

Carbon Brush Set [Incl. 2,11,12]

3086242

$67.46

3

Carbon Brush Set [Incl. 2,11,12]

3086242

$67.46

3

Carbon Brush Set [Incl. 2,11,12]

3086242

$67.46

3

Carbon Brush Set [Incl. 2,11,12]

3086242

$67.46

4

Asm., Rear Bracket

3086245

Unavailable

5

Bolt and Washer

3083730

$4.76

6

Asm., Set Bolt

3086241

Unavailable

7

Washer Set

3084982

Unavailable

7

Washer Set

3084982

Unavailable

8

Asm., Armature

3086244

Unavailable

9

O-Ring

3240114

$6.99

10

Asm., Front Bracket [Incl. 9]

3086243

$102.38

11

O-RING

3084408

Unavailable

12

NUT, FLANGE

3083649

$3.97

13

Washer, Gear Shaft

3083737

$3.17

14

CLIP

3084412

$9.52

15

SPRING, WEIGHT

3084411

$15.56

16

SPRING, RETURN

3084410

Unavailable

17

CLIP

3084409

$7.14

18

Asm., Gear Shaft [Incl. 13-17]

3087030

$271.10
