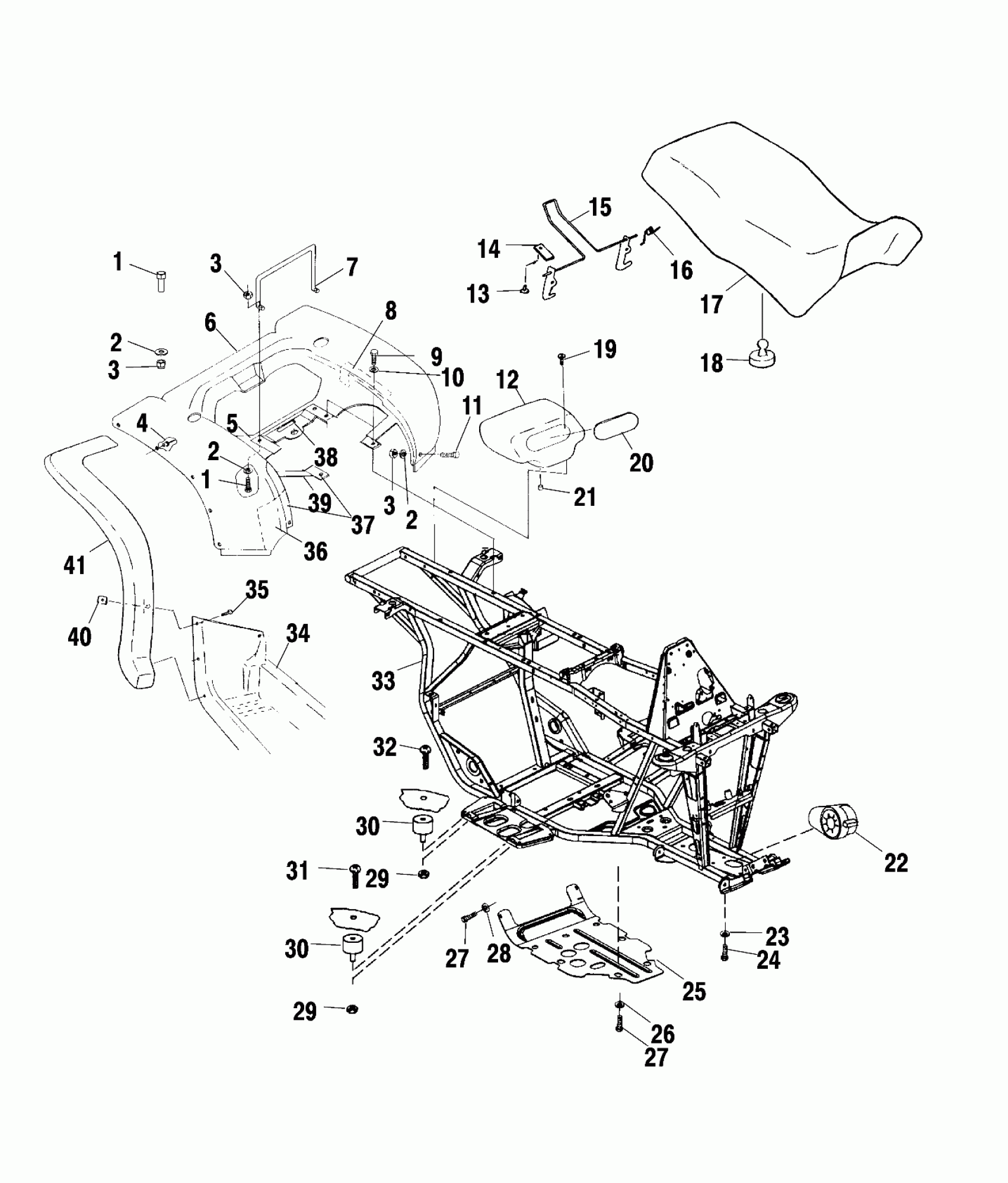

Polaris XPEDITION 425 - A02CK42AA/AB REAR CAB and SEAT - A02CK42AA/AB (4970327032A03) Diagram

#

Description
Price

1

Bolt

7511930

$2.38

1

Bolt

7511930

$2.38

2

WASHER

7555792

$4.76

2

WASHER

7555792

$4.76

2

WASHER

7555792

$4.76

3

Nut, Nylok

7541925

$0.79

3

Nut, Nylok

7541925

$0.79

3

Nut, Nylok

7541925

$0.79

4

Rivet

7661645

Unavailable

5

Foil, Rear Cab, Rear

5811107

Unavailable

6

Cab, Rear, Desert Dune (AA)

5432117-282

Unavailable

6

CAB, REAR, CAMO (AB)

5433282-283A

Unavailable

7

Retainer, Seat Latch

5224592

Unavailable

8

Foil, Tape, Rear Cab

5811308

$12.94

9

SCREW

7512242

$2.38

10

Washer, Flat

7555859

$1.19

11

Screw

7512085

Unavailable

12

Box, Tool

5431786

$53.17

13

RIVET

7621403

$1.19

14

BRACKET, LEVER RETAINER

5211033

$34.99

15

LATCH, SEAT

1040387

$48.56

16

SPRING, LATCH

7041370

$9.52

17

Covering, Seat

2682958-070

$149.75

17

Seat

2682441-070

$445.22

18

BUMPER-RUBBER

5412067

$3.97

19

Screw

7517375

$1.19

20

Cover, Tool Box

5431787

Unavailable

21

Cap, Drain

5410896

$5.65

22

ASM., FRONT GEARCASE [See Front Housing Pg. C2 for Details]

----

Unavailable

23

Washer, Spring Lock

7552603

$0.79

24

Screw

7512492

$1.19

25

Guard, Rock

5433435

Unavailable

26

WASHER-SKID PLATE

7556065

$4.76

27

SCREW

7517386

$1.19

27

SCREW

7517386

$1.19

28

Washer, Flat

7558301

$1.19

29

Nut, Nylok

7542122

$1.19

29

Nut, Nylok

7542122

$1.19

30

Mount, Rubber

5411548

$28.32

30

Mount, Rubber

5411548

$28.32

31

Screw

7515111

$4.94

32

Screw

7512297

$5.56

33

Frame, Main

1013668-067

Unavailable

34

Footwell, LH, Black

5433391-070

$196.83

34

Footwell, RH, Black

5433392-070

Unavailable

35

SCREW

7512232

$1.19

36

Foil, Rear Fender

5811111

Unavailable

37

Foil, Rear Cab, Front

5811106

Unavailable

38

Decal, Carb/Filter Information

7079902

Unavailable

39

Foil

5811087

Unavailable

40

NUT, U-TYPE SPEED

7670057

$1.19

41

Guard, Mud, Rear, LH

5431796-070

Unavailable

41

Guard, Mud, Rear, RH

5431797-070

Unavailable
