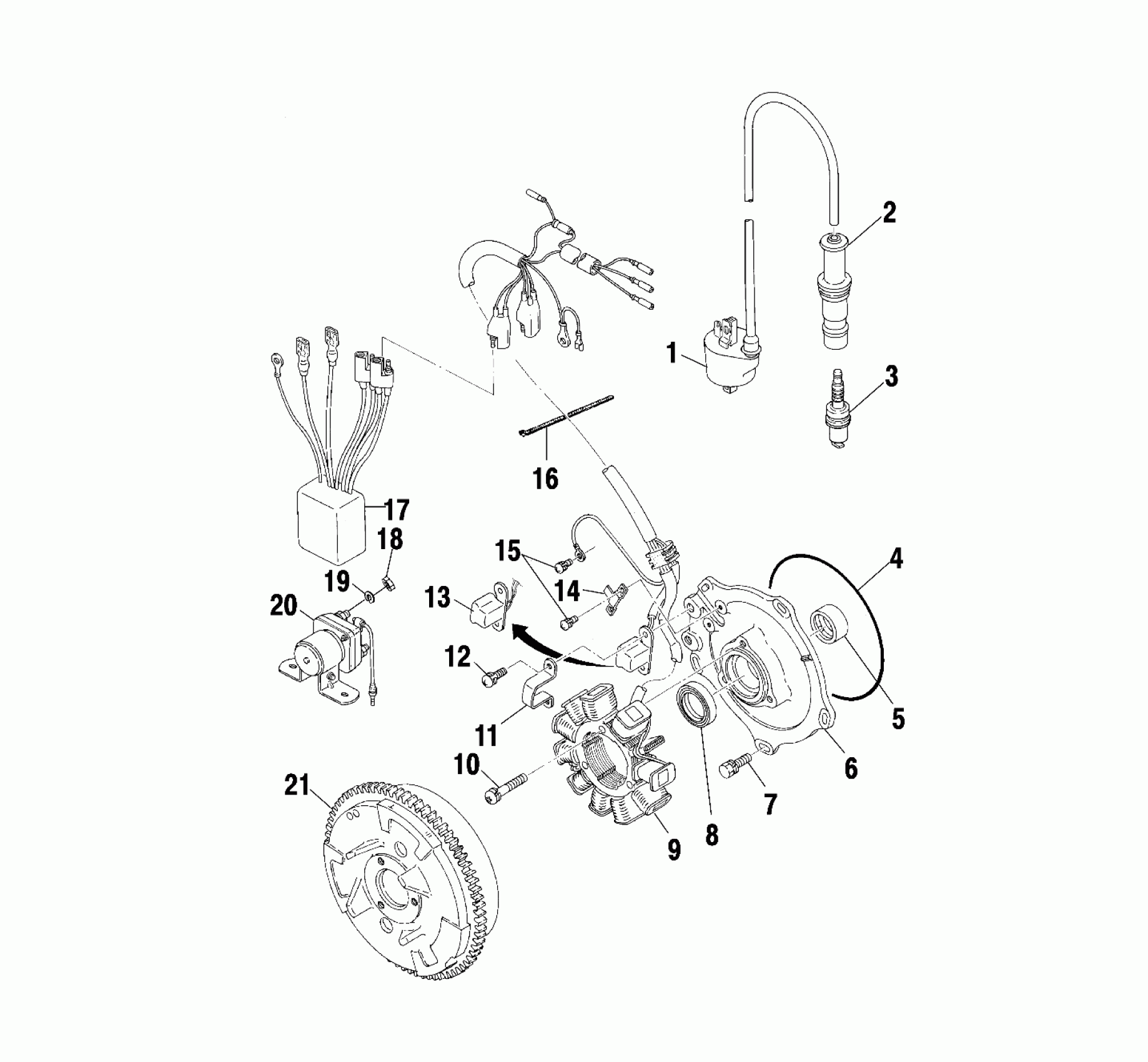

Polaris XPEDITION 425 - A02CK42AA/AB MAGNETO - A02CK42AA/AB (4970327032D03) Diagram

#

Description
Price

1

Asm., Ignition Coil [Incl. 1,2]

3084690

Unavailable

1

Ignition Coil

3084979

Unavailable

2

Cap, Plug, Spark

3084980

$59.99

3

Plug, Spark

3070175

$3.99

4

O-RING

3084978

$35.99

5

Metal, Bearing

3086234

Unavailable

6

Asm., Plate [Incl. 5,6,8-12,14,15]

3086232

Unavailable

6

Plate

3087140

Unavailable

7

Bolt and Washer

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

Stator [Incl. 13]

3086239

Unavailable

10

Screw and Washer

3081342

$1.49

11

Band, Pulse

3085554

Unavailable

12

Screw and Washer

3084976

Unavailable

13

Coil, Pulser

3087141

Unavailable

14

Clamp

3084977

Unavailable

15

Screw and Washer

3081256

$3.19

16

Band, Wire

3083447

Unavailable

17

CDI System

3086235

Unavailable

18

Nut

3083073

$2.39

19

Washer, Spring

3080077

$2.39

20

Switch, Magnetic

3086236

Unavailable

21

Asm., Magneto [Incl.5,6,8-15,21

3086238

Unavailable

21

Flywheel w/Ring Gear

3086231

Unavailable
