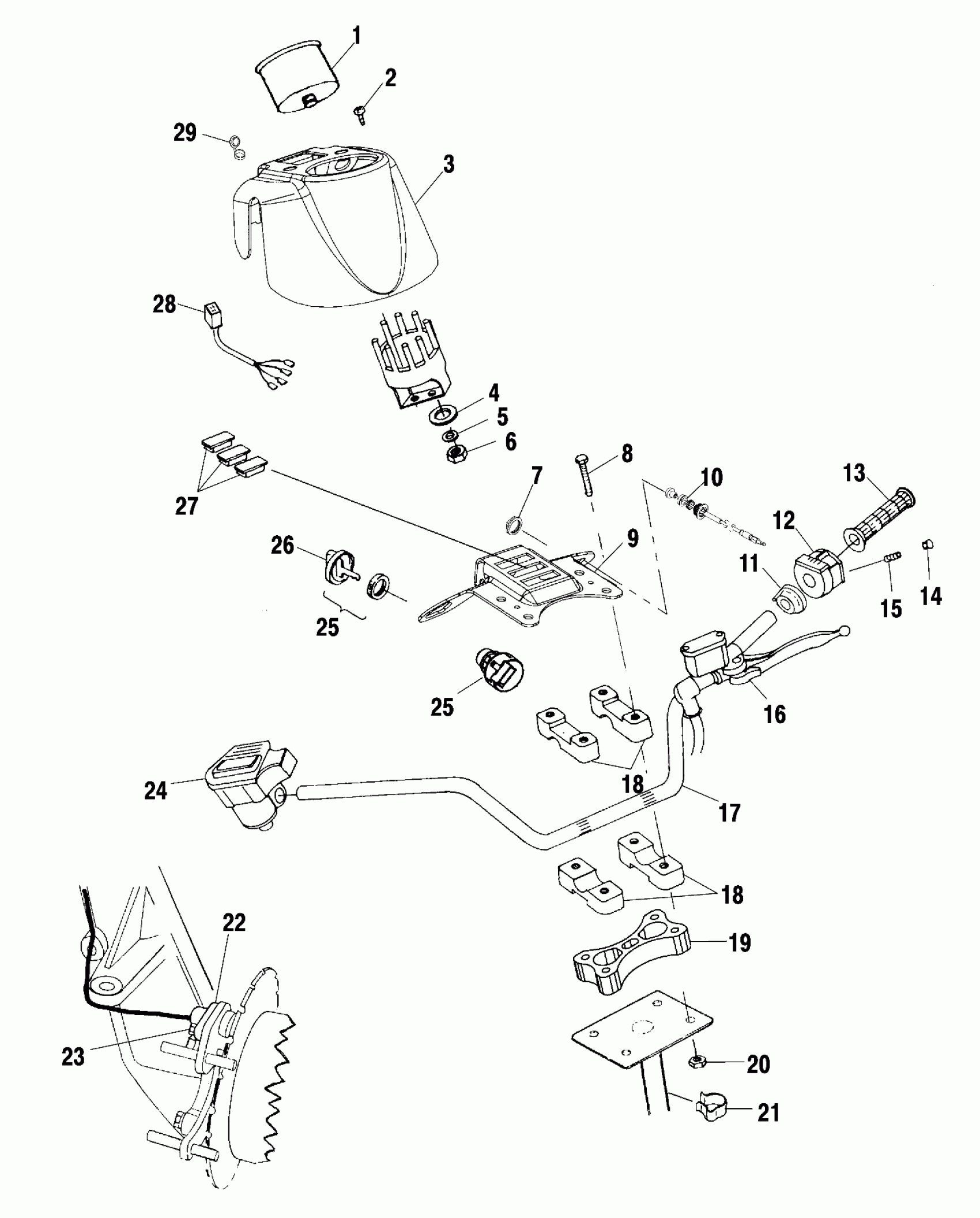

Polaris XPEDITION 425 - A02CK42AA/AB HANDLEBAR and HEADLIGHT POD - A02CK42AA/AB (4970327032B09) Diagram

#

Description
Price

1

Asm., Speedometer

3280357

Unavailable

2

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

3

Panel, Instrument

5433843-070

$53.59

4

Washer, Flat

7558212

$1.49

5

Washer, Lock

7555868

Unavailable

6

Nut

7541933

$4.99

7

Nut, Choke

7080922

$3.19

8

Screw

7517224

Unavailable

9

Bracket, Panel, Instrument

5244341-067

$5.75

10

Cable, Choke

7081008

$79.99

11

Spacer, Switch, LH

5433903

Unavailable

12

Switch, Handlebar, H/L/O, REV/OR

4010422

$123.54

13

Grip, Handlebar

5433834-070

$24.27

14

PLUG, HOLE

5432952

$5.59

15

SCREW, SET

7517625

$4.79

16

ASM., MASTER CYLINDER [See Controls - Master Cylinder/Brake Line Pg. B7]

-------

Unavailable

17

Handlebar

5224715-067

Unavailable

18

Block, Handlebar

5630629

$11.59

18

Block, Handlebar

5630629

$11.59

19

Block, Riser

5630633

$19.03

20

Nut, Nylok

7542122

$1.49

21

Clip

7080631

$6.29

22

Sensor, Hall Effect

4010298

$111.99

22

Cap, Hall Effect

5132382

$23.99

23

Screw

7517658

$5.59

24

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B6, REF. 5]

-------

Unavailable

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: Order Ignition Key by using the four digit number on the key.

4010278

Unavailable

25

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

25

Switch, Ignition [Incl. Key]

4010390

Unavailable

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: Order Ignition Key by using the four digit number on the key.

4010278

Unavailable

25

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

25

Switch, Ignition [Incl. Key]

4010390

Unavailable

26

KEY SWITCH KEY COVER

5433534

$12.35

27

Plug

5430967

$5.65

27

Indicator, "HOT TEMP"

4040053

$31.99

27

Indicator, Neutral/Reverse

4040054

$31.99

28

Harness, Pod, Headlight

2460728

$13.19

29

Cover, Screw, Hinged

5432420

Unavailable
