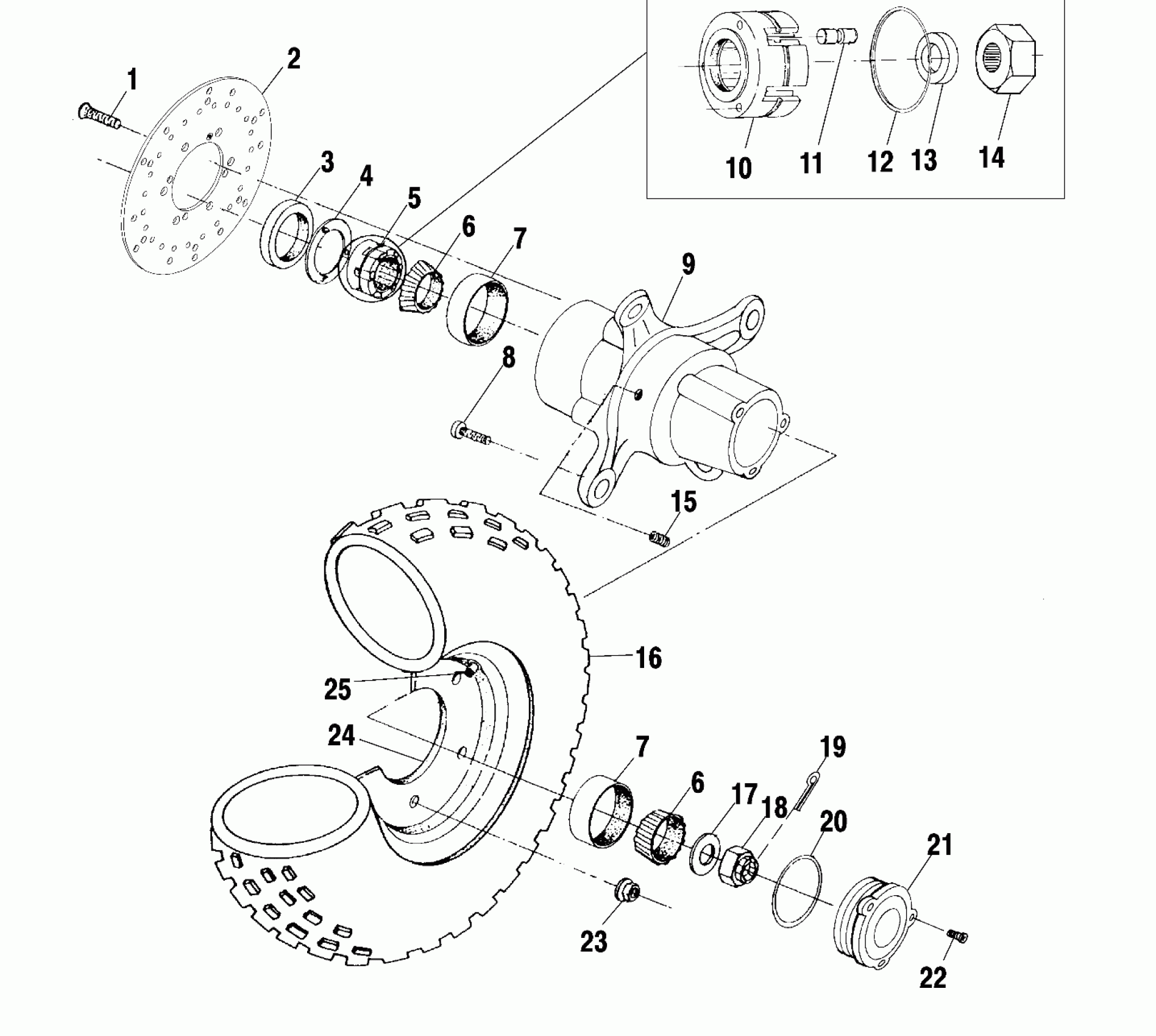

Polaris XPEDITION 425 - A02CK42AA/AB FRONT WHEEL - A02CK42AA/AB (4970327032B04) Diagram

#

Description
Price

1

BOLT

7512325

$2.39

2

Disc, Brake

5243676

Unavailable

3

Seal, Front Hub

3610019

$35.99

4

Plate, Armature

5211148

$23.99

5

Clutch, Front Hub, Elec./Mech.

1520281

$354.99

6

Bearing, Tapered Roller Cone

3554506

$31.99

6

Bearing, Tapered Roller Cone

3554506

$31.99

7

Bearing, Tapered Roller Cup

3554507

$31.99

7

Bearing, Tapered Roller Cup

3554507

$31.99

8

Stud

7515523

$3.19

9

Asm., Hub w/Bearing Race [Incl.3,7,8]

1520243

Unavailable

10

Cage, Roll

3250028

$218.56

11

Roll

3250010

$35.99

12

Spring, Garter

3250032

$17.59

13

Spacer

1321814

$24.99

14

Cam

3250030

$198.48

15

Plug, Magnetic Drain

7052045

$12.79

16

Tire [25x8-12]

5411952

Unavailable

17

WASHER

7556004

$7.19

18

NUT, SLOTTED

7542810

$3.19

19

PIN, COTTER

7661401

$1.49

20

O-Ring

5410470

$2.41

21

Cap, Hub

5432611

$14.39

22

Screw

7512027

$1.49

23

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

24

Rim, Front, Black (AB)

1520269-067

Unavailable

24

Rim, Front, Silver (AA)

1520269-117

$90.87

25

VALVE-RIM

1525017

$5.59
