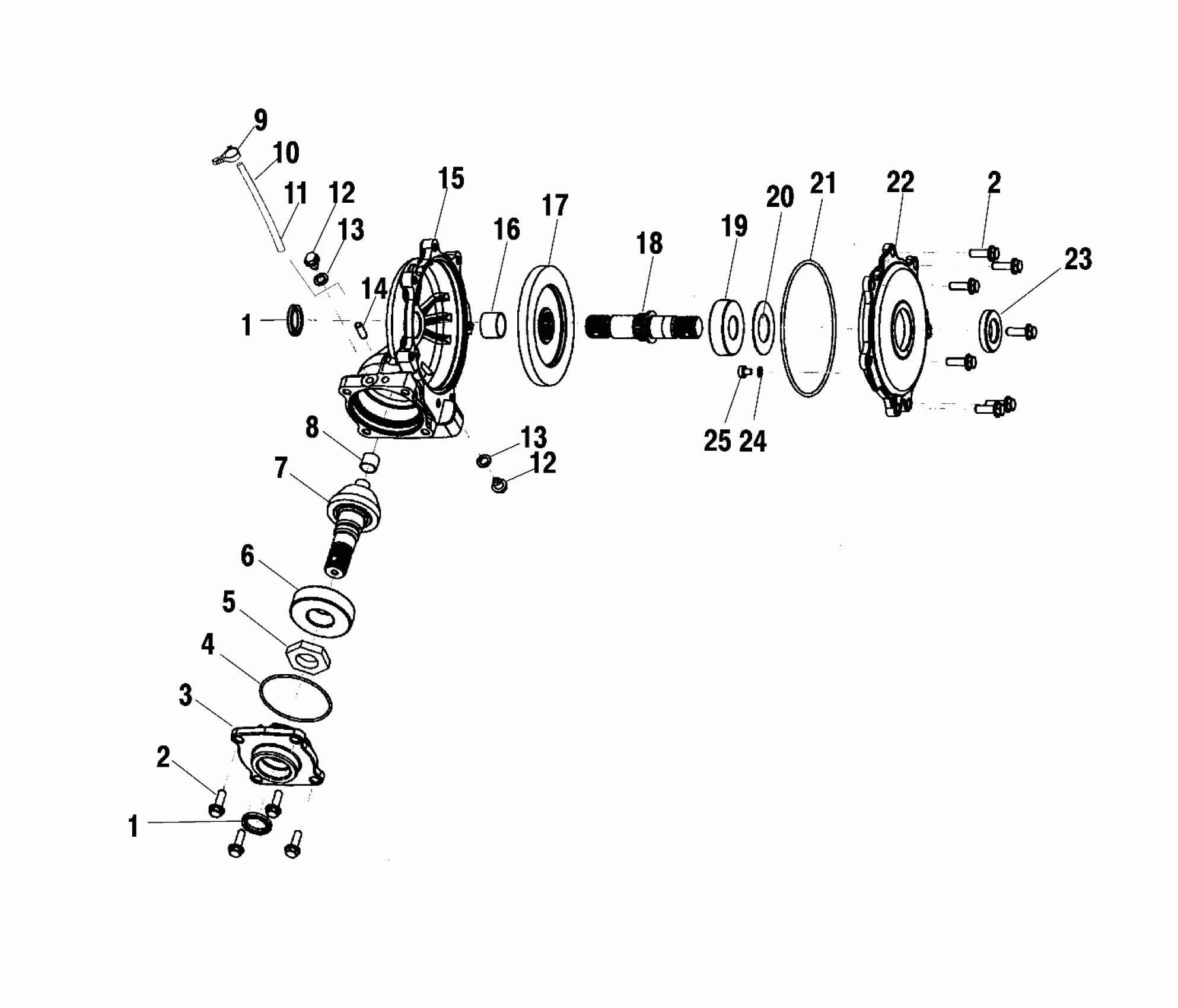

Polaris XPEDITION 425 - A02CK42AA/AB FRONT HOUSING - A02CK42AA/AB (4970327032C02) Diagram

#

Description
Price

-

Asm., Front Gearcase [Incl. 1-8,12-25]

1341253

Unavailable

1

Seal, Oil

3233319

$27.99

1

Seal, Oil

3233319

$27.99

2

Screw

3233252

$5.27

2

Screw

3233252

$5.27

3

Cover, Input, Front Housing

3233573

Unavailable

4

O-Ring

3233588

$10.55

5

Nut, Lock

3233574

Unavailable

6

BEARING,BALL

3233589

$59.99

7

Shaft, Input, Front Housing

3233590

Unavailable

8

Bushing

3233591

$6.63

9

Clip

7080756

$4.79

10

Line, Vent

8450003-1525

Unavailable

11

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

12

Plug, Drain

3233253

$34.99

12

Plug, Drain

3233253

$34.99

13

Washer

3233254

$7.99

13

Washer

3233254

$7.99

14

Tube, Vent Hose

3233524

$7.19

15

Gearcase, Front Housing

3233592

Unavailable

16

Bushing

3233593

Unavailable

17

Gear, 37T, Bevel

3233594

$237.59

18

Shaft, Output, Front Housing

3233595

$135.99

19

BEARING

3233020

$47.99

20

SHIM

3233554

$30.79

21

O-Ring

3233596

Unavailable

22

Cover, Output, Front Housing

3233597

$85.71

23

Seal

3233248

$30.88

24

SHIM

3233583

$26.39

25

THRUST BUTTON

3233582

$7.91
