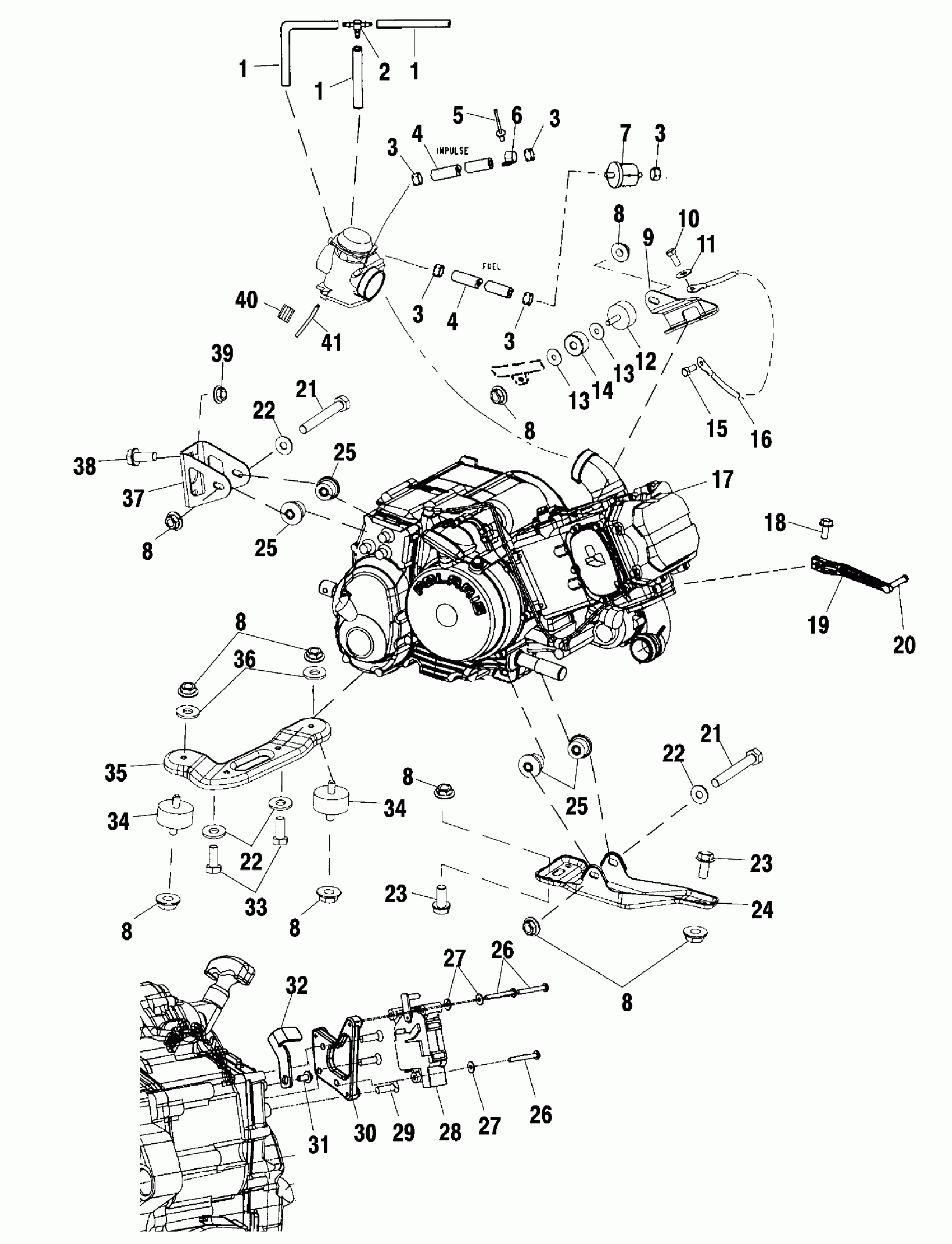

Polaris XPEDITION 425 - A02CK42AA/AB ENGINE MOUNTING - A02CK42AA/AB (4970327032A11) Diagram

#

Description
Price

1

Line, Fuel

8450003-1525

Unavailable

1

Line, Fuel

8450003-1525

Unavailable

1

Line, Fuel

8450003-1525

Unavailable

2

FITTING, TEE

7052075

$9.59

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

4

Line, Fuel

8450040-60

Unavailable

4

Line, Fuel

8450040-60

Unavailable

5

Rivet

7621432

$1.49

6

CLAMP, CABLE

7080499

$5.59

7

FILTER

2530009

$5.65

8

Nut, Lock, Flange

7547108

$4.79

8

Nut, Lock, Flange

7547108

$4.79

8

Nut, Lock, Flange

7547108

$4.79

8

Nut, Lock, Flange

7547108

$4.79

8

Nut, Lock, Flange

7547108

$4.79

8

Nut, Lock, Flange

7547108

$4.79

8

Nut, Lock, Flange

7547108

$4.79

8

Nut, Lock, Flange

7547108

$4.79

9

Mount, Engine, Top

5242964-067

$4.95

10

Screw

7512315

$4.79

11

WASHER, SPRING LOCK

7552901

$1.49

12

Mount, Rubber, Top

3021045

Unavailable

13

WASHER, FLAT

7555823

$3.99

13

WASHER, FLAT

7555823

$3.99

14

Spacer, Motor Mount, Top

5132007

Unavailable

15

SCREW

7517386

$1.49

16

Cable, Ground, Engine

4010132

Unavailable

17

Engine, EH42PLE04 NOTE: The Short Block assembly contains a crankcase assembly, a cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warranty c

3085824

Unavailable

18

Screw

7512225

$3.99

19

Lever

5630960-067

$80.94

20

Pad

5411364

$23.99

21

Screw

7515406

$7.19

21

Screw

7515406

$7.19

22

Washer, Spring Lock

7552603

$1.49

22

Washer, Spring Lock

7552603

$1.49

22

Washer, Spring Lock

7552603

$1.49

23

Screw

7517388

$3.79

23

Screw

7517388

$3.79

24

Mount, Engine, Lower

5242905-067

$11.59

25

Mount, Rubber

5411575

$8.23

25

Mount, Rubber

5411575

$8.23

25

Mount, Rubber

5411575

$8.23

26

Screw

7510504

$6.76

26

Screw

7510504

$6.76

27

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

27

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

28

Actuator

4010435

Unavailable

29

SCR-1/4-20X7/8,HX/SOC/FL/HD-Y

7517652

$4.79

30

Mount, Actuator, Reverse

5132519

$11.51

31

SCREW

7517653

Unavailable

32

Lever, Reverse

5245124-067

$6.63

33

Screw

7512492

$1.49

34

Mount, Rubber, Top

3110044

Unavailable

34

Mount, Rubber, Top

3110044

Unavailable

35

Mount, Lower, Rear

5242984-067

$15.67

36

Washer, Flat

7555806

$1.49

37

Mount, Engine, Top, Rear

5242965-067

$4.16

38

SCREW

7515398

$2.39

39

Nut, Flanged

7542321

$1.49

40

T-Clip, Dual

7080816

$5.43

41

Line, Fuel

8360009-100

Unavailable
