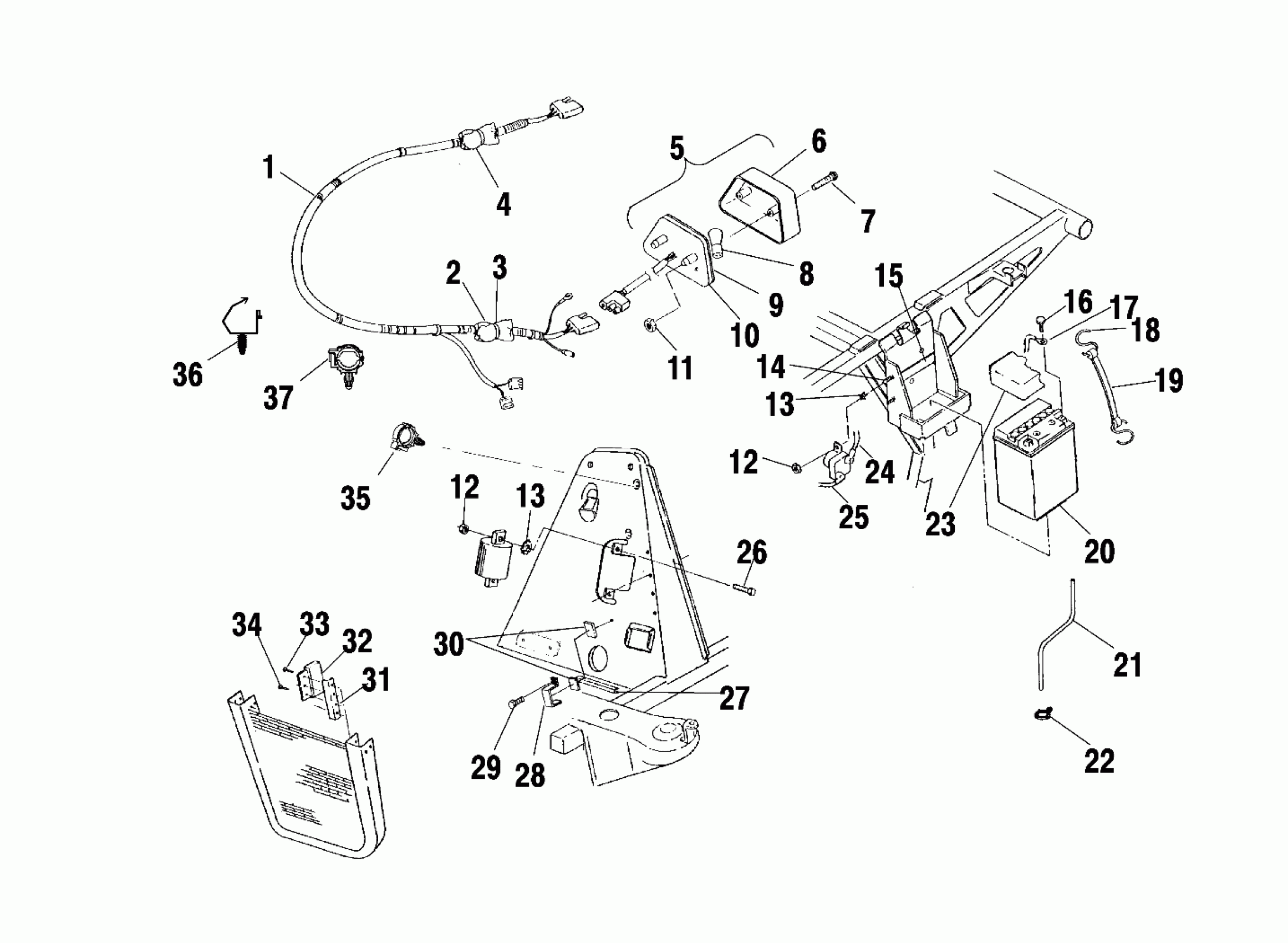

Polaris XPEDITION 425 - A02CK42AA/AB ELECTRICAL/TAILLIGHT - A02CK42AA/AB (4970327032B12) Diagram

#

Description
Price

1

Harness, Wire, Main

2460864

Unavailable

2

Kit - Circuit Breaker, 20 AMP

2200593

$63.99

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

4

Kit - Circuit Breaker

2201795

$68.79

5

Asm., Taillight [Incl. 6-11]

2410221

$38.71

6

Lens, Taillight

4032046

$32.37

7

Screw, Taillight

4032029

$4.79

8

Bulb, Taillight

4030043

$6.46

9

Gasket, Taillight

4032045

$4.03

10

Backing, Taillight/Brake Light

4032064

$83.99

11

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

12

Nut, Nylok

7541925

$1.49

12

Nut, Nylok

7541925

$1.49

13

Washer

7571602

$4.79

13

Washer

7571602

$4.79

14

Screw

7512027

$1.49

15

PAD-BATTERY

5810290

$7.27

16

Kit - Battery Bolt, Short

2200361

$3.99

17

Cable, Battery/Engine

4010095

Unavailable

18

Hook, Strap, Battery

7010032

$1.59

19

Strap, Holddown, Battery

5410424

Unavailable

20

Battery

4140006

$99.99

21

Tube, Vent, Battery

5432077

Unavailable

22

Clip

7670102

$2.39

23

Cover, Battery

5431769

$14.39

24

Cable, Battery/Solenoid

4010094

Unavailable

25

Cable, Solenoid/Starter

4010093

$47.99

26

BOLT

7512007

$3.99

27

Trim, Edge

8360012

Unavailable

28

Bracket, CDI

5241416

$5.75

29

SCREW

7512024

$4.79

30

Pad, Mount, Rack

5810455

$3.19

31

Sink, Heat

5131818

Unavailable

32

Rectifier, Regulator, LR 35

4060191

Unavailable

33

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

34

Screw

7512017

$4.79

35

Clip, Rosebud

4020149

$6.39

36

CLIP, ROUTING

7670109

$2.39

37

CLIP, ROSEBUD

4020139

$4.79
