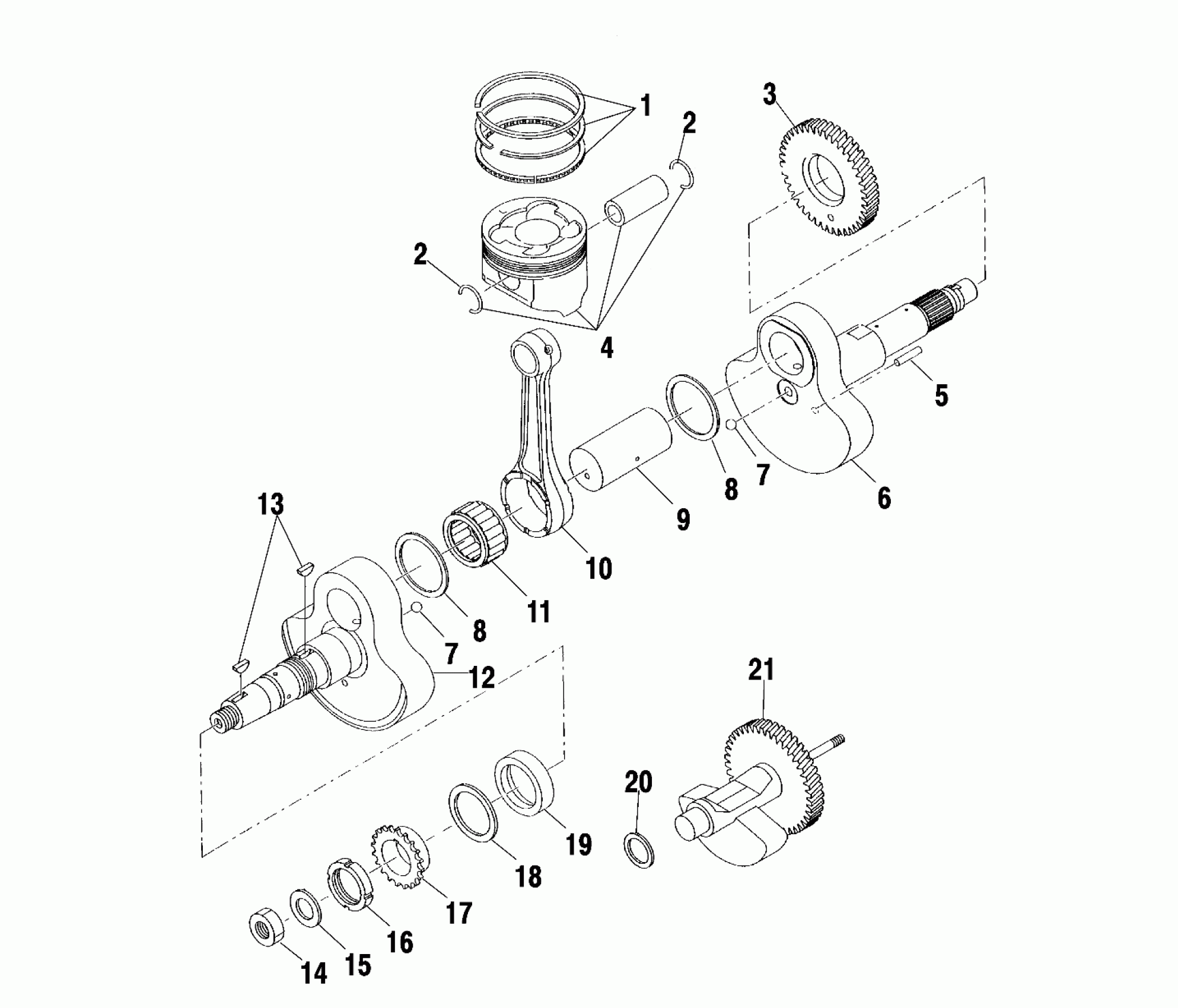

Polaris XPEDITION 425 - A02CK42AA/AB CRANKSHAFT and PISTON - A02CK42AA/AB (4970327032C09) Diagram

#

Description
Price

1

Piston Ring Set [Std]

3086488

Unavailable

1

Piston Ring Set [0.25 O/S]

3086489

Unavailable

1

Piston Ring Set [0.50 O/S]

3086490

Unavailable

2

CLIP

3085534

Unavailable

2

CLIP

3085534

Unavailable

3

Gear 1, Balancer

3085345

$207.99

4

Piston Set [Std] [Incl. 2,4]

3086207

Unavailable

4

Piston Set [0.25 O/S][Incl. 2,4]

3086208

Unavailable

4

Piston Set [0.50 O/S][Incl. 2,4]

3086209

Unavailable

5

Pin, Dowel

3085346

Unavailable

6

Crankshaft 2

3086204

$305.76

7

BALL, STEEL

3085024

$5.59

7

BALL, STEEL

3085024

$5.59

8

Spacer, Crank Pin

3085344

$12.79

8

Spacer, Crank Pin

3085344

$12.79

9

Pin, Crank

3086205

$50.39

10

Rod, Connecting

3086206

Unavailable

11

Bearing, Large End

3085400

$78.56

12

Asm., Crankshaft [Incl. 3,5,6-12]

3086202

$814.99

12

Crankshaft 1

3086203

$374.99

13

KEY, WOODRUFF

3240168

$19.99

14

NUT, LOCK

3083905

Unavailable

15

Washer

3083904

Unavailable

16

Nut, Slit

3085980

$19.79

17

Sprocket 1

3085979

Unavailable

18

Spacer [1.2]

3084894

$19.99

18

Spacer [0.6]

3240088

$10.39

18

Spacer [1.0]

3084893

$19.99

18

Spacer [0.8]

3084892

$12.79

19

Spacer, Crankshaft

3086211

$11.99

20

Spacer [1.2]

3084897

$6.39

20

Spacer [0.8]

3084895

$6.39

20

Spacer [1.0]

3084896

$6.39

21

Shaft, Balancer

3086210

$223.99
