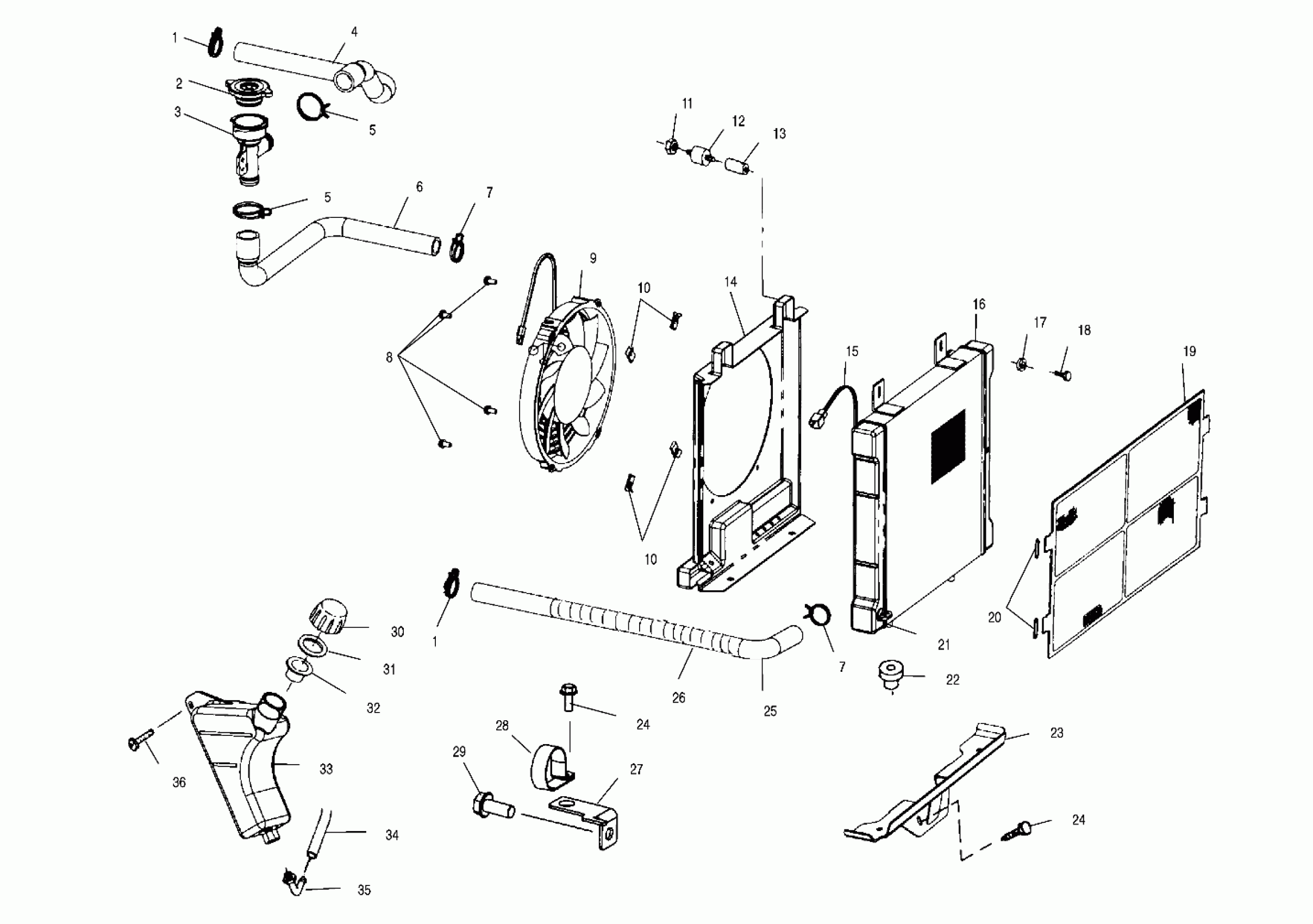

Polaris XPEDITION 425 - A02CK42AA/AB COOLING SYSTEM - A02CK42AA/AB (4970327032A09) Diagram

#

Description
Price

1

CLAMP, HOSE

7080614

$7.19

1

CLAMP, HOSE

7080614

$7.19

2

Cap, Pressure

1240044

Unavailable

3

Filler, Coolant

5433364

$43.56

4

Hose, Engine, Upper

5411534

Unavailable

5

Clamp, 1"

7080827

Unavailable

5

Clamp, 1"

7080827

Unavailable

6

Hose, Neck, Filler

5411632

Unavailable

7

Clamp

7080826

$4.79

7

Clamp

7080826

$4.79

8

Screw

7517659

$3.99

9

Asm., Fan and Motor

2410123

$180.79

10

Nut, U-Type

7670111

Unavailable

10

Nut, U-Type

7670111

Unavailable

11

Nutsert

7547069

$3.99

12

Mount, Rubber

3110032

$7.99

13

Spacer

5020572

$8.79

14

Shroud, Fan

5433059

Unavailable

15

Sensor, Thermal

4010161

$103.99

16

Radiator

1240045

Unavailable

17

WASHER, SPRING LOCK

7552801

$1.59

18

Screw

7512240

$3.99

19

Cover, Radiator

5433317

$35.35

20

O-Ring

5410607

$5.99

21

Valve, Drain

7052296

Unavailable

21

O-Ring

5411633

Unavailable

22

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

23

Bracket, Radiator, Lower

5243503-067

$154.99

24

SCREW

7517386

$1.49

24

SCREW

7517386

$1.49

25

Hose, Engine, Lower

5411533

$31.35

26

Guard, Hose

5521511

$7.43

27

Bracket, Coolant Hose Mount

5244064-067

Unavailable

28

CLAMP-HOSE

7080807

$9.59

29

SCREW [See Front Housing Pg. C2, Ref. 2]

-------

Unavailable

30

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

31

GASKET-OVERFLOW CAP

5810279

$2.41

32

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

33

Tank, Surge

5433410

Unavailable

34

Line, Fuel

8450003-1525

$84.99

35

Fitting, Barbed, 90 Degree

7052065

$7.19

36

Screw

7512084

$1.49
