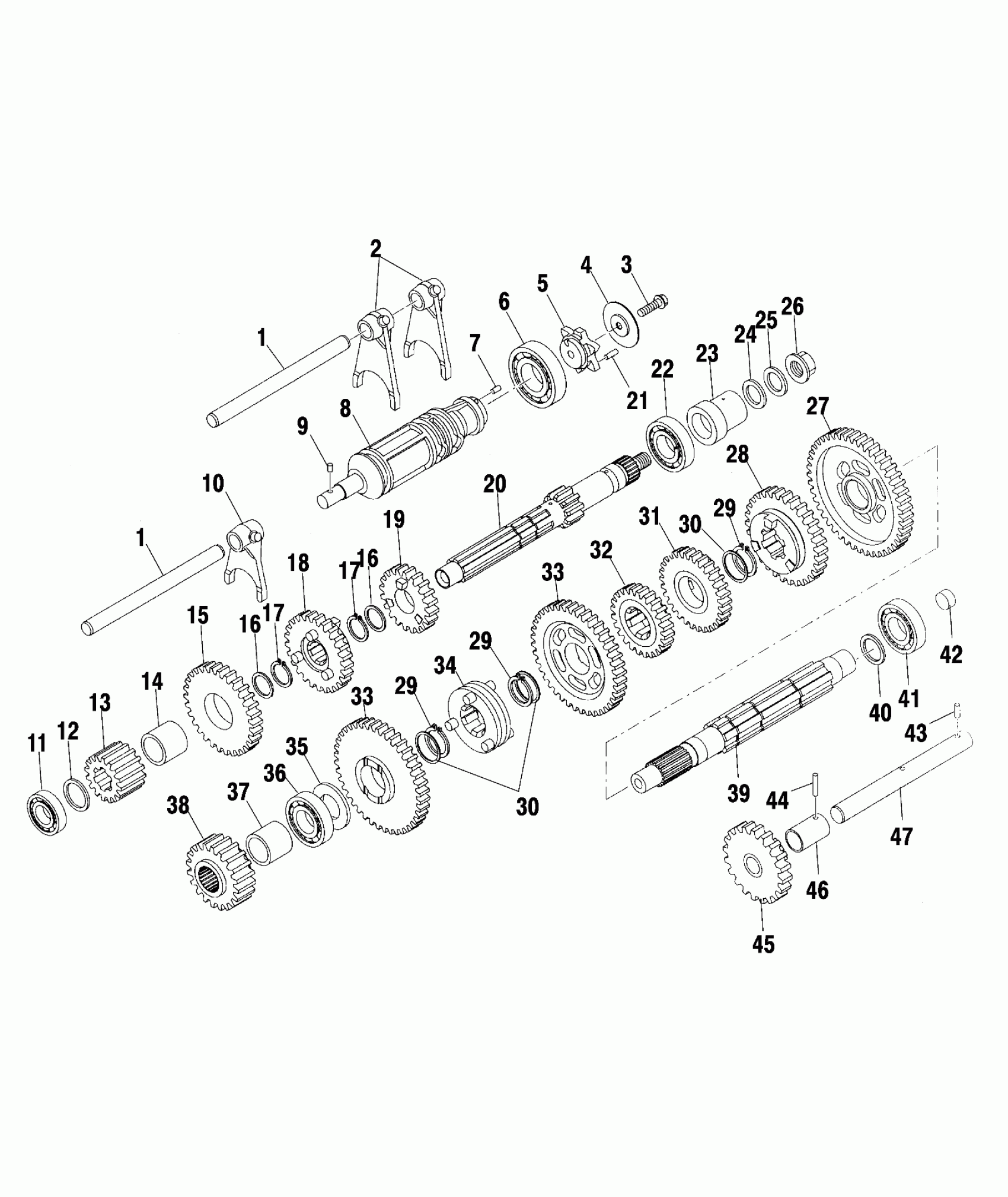

Polaris XPEDITION 425 - A02CK42AA/AB CLUTCH - A02CK42AA/AB (4970327032D09) Diagram

#

Description
Price

1

Shaft, Shift Fork

3086375

$11.99

1

Shaft, Shift Fork

3086375

$11.99

2

Fork, Shift, Driven

3086377

Unavailable

3

Bolt, Lock

3086370

$3.19

4

Washer

3086369

Unavailable

5

Cam, Shift

3086368

Unavailable

6

Bearing, Ball

3086373

$22.39

7

Pin

3086371

Unavailable

8

Asm., Shift Drum [Incl. 3-8,21]

3086366

$247.19

8

Drum, Shift

3086367

$231.19

9

Pin, Dowel

3086379

$1.98

10

Fork, Shift, Drive

3086376

$78.39

11

Bearing, Ball

3086348

$22.39

12

Washer

3086350

$1.49

13

Gear, 2nd Drive

3086341

$55.19

14

Collar

3086345

$6.23

15

Gear, 5th Drive

3086344

Unavailable

16

Washer

3086346

$5.43

16

Washer

3086346

$5.43

17

Ring, Snap

3086349

$1.83

17

Ring, Snap

3086349

$1.83

18

Gear, 4th Drive

3086343

$152.79

19

Gear, 3rd Drive

3086342

$83.99

20

Asm., Main Shaft [Incl. 11-20,22]

3086339

$331.99

20

Shaft, Main

3086340

$194.39

21

Pin

3086372

Unavailable

22

Bearing, Ball

3086347

$28.79

23

Bush, Flange

3086382

$19.19

24

Washer

3086313

$6.23

25

Washer, Lock

3086286

Unavailable

26

Nut, Lock

3086285

Unavailable

27

Gear

3086358

$175.19

28

Gear, 3rd Driven

3086354

$124.79

29

Ring, Snap

3086363

$2.23

29

Ring, Snap

3086363

$2.23

29

Ring, Snap

3086363

$2.23

30

Washer

3086359

$3.99

30

Washer

3086359

$3.99

31

Gear, 4th Driven

3086355

$95.19

32

Gear, 5th Driven

3086356

$104.79

33

Gear, 2nd Driven

3086353

$171.19

33

Gear, 2nd Driven

3086353

$171.19

34

Clutch

3086357

$150.39

35

Washer

3086364

$9.59

36

Bearing, Ball

3086360

$29.59

37

Spacer

3086383

$3.83

38

Sprocket, Drive

3086374

$67.19

39

Asm., Counter Shaft [Incl. 27-36,40-42]

3086351

$624.99

39

Shaft, Counter

3086352

$179.99

40

Washer

3081513

$19.99

41

Bearing, Ball

3086362

$27.99

42

Plug

3086365

$9.11

43

Pin

3086337

$6.23

44

Pin

3086338

Unavailable

45

Gear

3086335

$150.39

46

Collar

3086336

$24.39

47

Asm., Reverse Shaft [Incl. 43-47]

3086333

$181.59

47

Shaft, Reverse

3086334

$25.98
