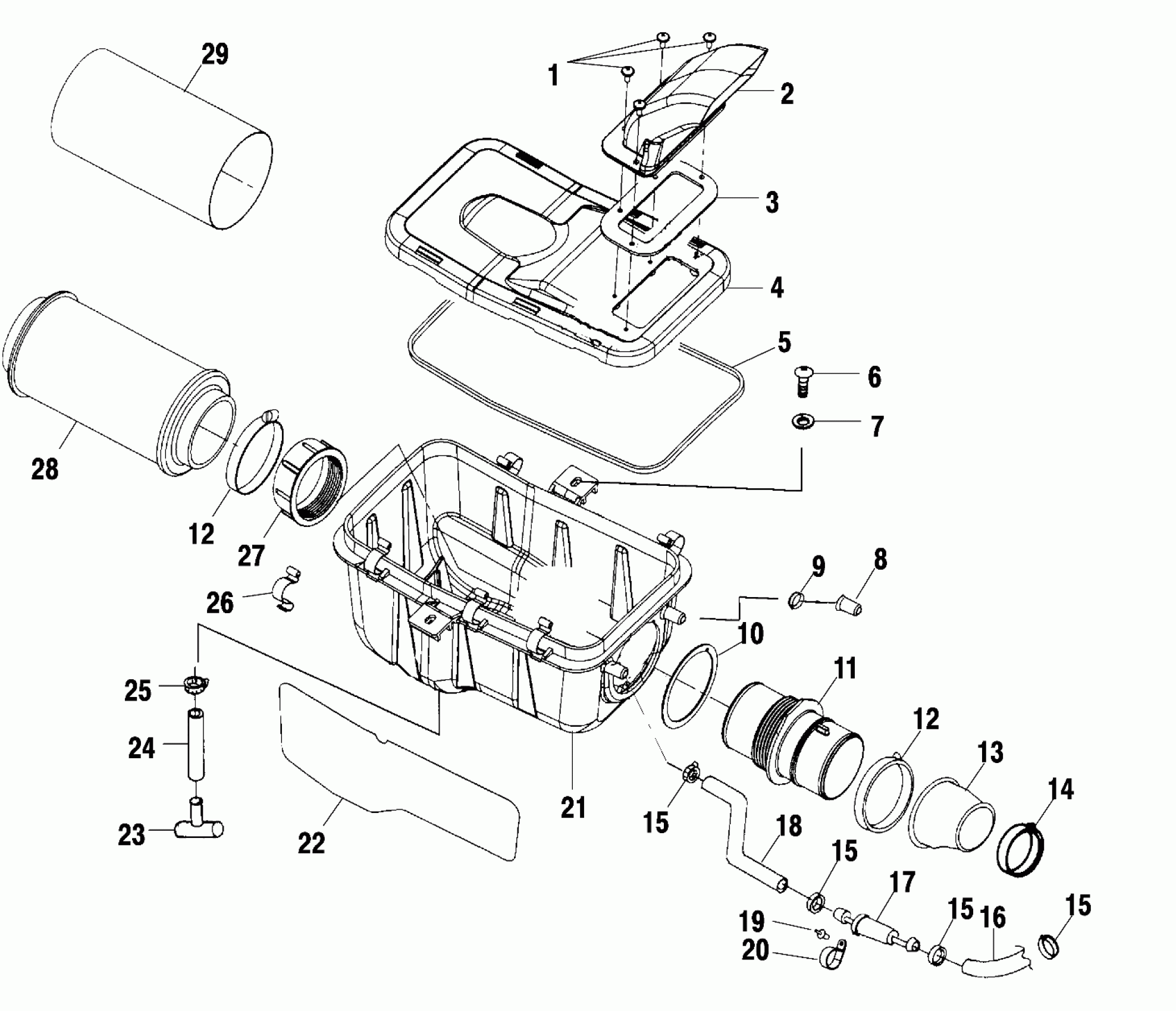

Polaris XPEDITION 425 - A02CK42AA/AB AIR BOX - A02CK42AA/AB (4970327032A14) Diagram

#

Description
Price

1

Screw

7517541

$4.79

2

Duct, Inlet

5432859

Unavailable

3

Gasket, Intake

5411422

$6.63

4

Cover, Air Box

5432868

$51.99

5

Seal, Cover

5811482

Unavailable

6

Screw

7515179

$2.39

7

Washer, Flat

7558301

$1.49

8

Cap

5433396

$4.79

9

Clamp, Hose

7080534

$1.59

10

Gasket, Duct

5830128

Unavailable

11

Duct, Carburetor, Inlet

5432473

Unavailable

12

Clamp, Narrow Band

7080413

$3.19

12

Clamp, Narrow Band

7080413

$3.19

13

Boot, Carburetor

5411539

Unavailable

14

Clamp, Narrow Band

7080511

$4.79

15

Clamp, Hose

7080699

$1.59

15

Clamp, Hose

7080699

$1.59

15

Clamp, Hose

7080699

$1.59

15

Clamp, Hose

7080699

$1.59

16

Hose, Breather, Formed

5411723

$13.10

17

Filter, Breather

2530029

$6.39

18

Hose, Breather, Formed

5411724

$13.10

19

Rivet

7621462

$1.49

20

Clamp, Hose

7080653

$4.79

21

Box, Air

5433678

$127.99

22

Foil, Box, Air

5811650

Unavailable

23

Plug, Trap

5432377

Unavailable

24

Line, Fuel

8450059-150

Unavailable

25

Clamp, Hose

7080650

$3.99

26

CLIP-AIR BOX

5242044

$9.59

27

Collar, Inlet, Carburetor

5432601

$12.79

28

Filter, Air

7080595

Unavailable

29

Filter, Sleeve, Precleaner

5811633

$11.99
