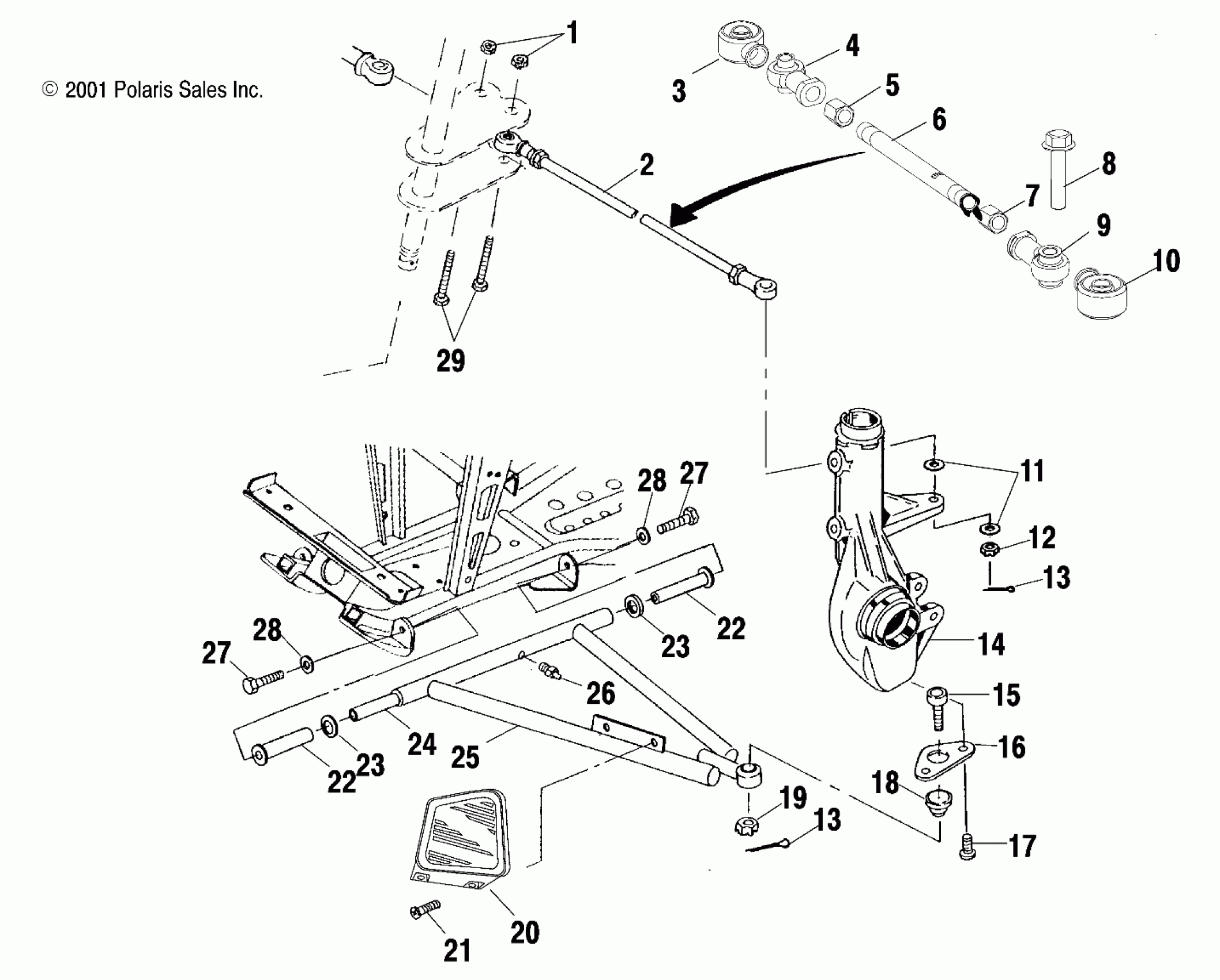

Polaris XPEDITION 425 - A02CK42AA/AB A-ARM/STRUT MOUNTING - A02CK42AA/AB (4970327032B11) Diagram

#

Description
Price

1

Nut, FLEXLOC

7542403

$3.99

2

Asm., Tie Rod [Incl. 3-9]

1820805

Unavailable

3

Boot, Seal, Rod End

5411291

Unavailable

4

Rod End, RH

7061034

$54.04

5

Nut

7542711

$2.39

6

Tie Rod

5020926

$39.99

7

Nut, LH

7547028

$2.39

8

Screw

7517907

$4.23

9

Rod End

7061054

Unavailable

10

Boot, Seat

5411920

Unavailable

11

Washer, Flat

7556099

$1.59

12

Nut, Lock

7547177

$2.39

13

Pin, Cotter

7661203

$1.49

13

Pin, Cotter

7661203

$1.49

14

ASM., HUBSTRUT [SEE FRONT STRUT PG. B3, REF. 16]

-------

Unavailable

15

Joint, Ball

7080927

$76.89

16

BRACKET-BALL JOINT

5211121

$31.99

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

18

Boot, Rubber

5410548

Unavailable

19

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

20

Shield, CV Joint, RH

5431149-070

$24.27

20

Shield, CV Joint, LH

5431150-070

Unavailable

21

Screw

7512084

$1.49

22

Bushing, A-Arm, Long

5433066

$5.01

22

Bushing, A-Arm, Long

5433066

$5.01

23

Bushing

5020677

$10.39

23

Bushing

5020677

$10.39

24

Shaft, A-Arm

5020681

Unavailable

25

Kit - A-Frame, LH

2201609

$131.43

25

Kit - A-Frame, RH

2201610

Unavailable

26

Fitting, Lubrication

7080433

$1.49

27

Screw

7512492

$1.49

27

Screw

7512492

$1.49

28

Washer, Spring Lock

7552603

$1.49

28

Washer, Spring Lock

7552603

$1.49

29

Screw

7515415

$1.49
