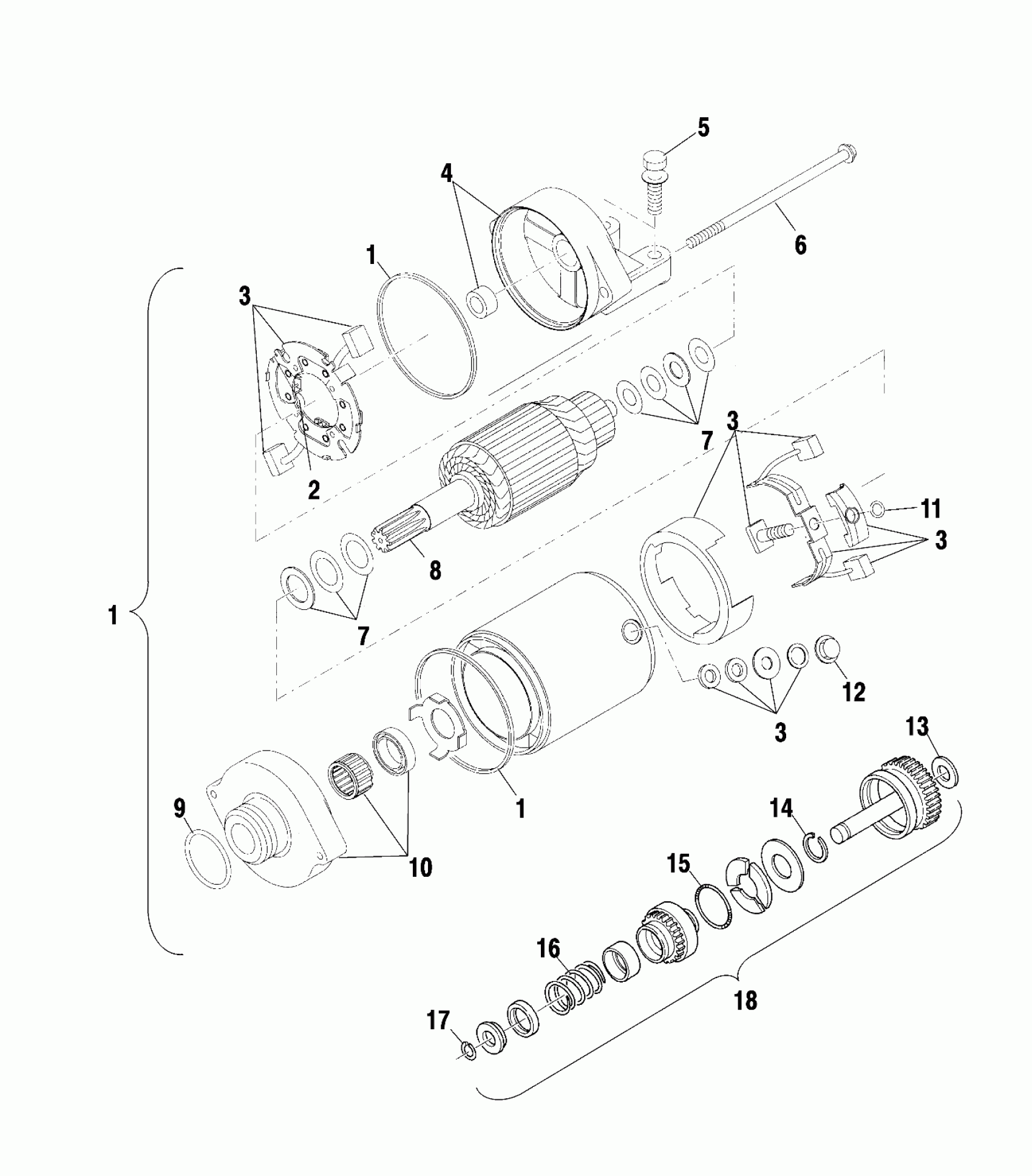

Polaris XPEDITION 425 - A01CK42AB STARTING MOTOR - A01CK42AA (4964136413D004) Diagram

#

Description
Price

1

RING, RUBBER

3084405

Unavailable

1

STARTER MOTOR ASM. (Incl. 1-4,6-12)

3086240

Unavailable

1

RING, RUBBER

3084405

Unavailable

1

STARTER MOTOR ASM. (Incl. 1-4,6-12)

3086240

Unavailable

1

RING, RUBBER

3084405

Unavailable

1

STARTER MOTOR ASM. (Incl. 1-4,6-12)

3086240

Unavailable

2

Spring, Brush

3240111

Unavailable

3

BRUSH,CARBON,SET (Incl. 2,11,12)

3086242

$67.99

3

BRUSH,CARBON,SET (Incl. 2,11,12)

3086242

$67.99

3

BRUSH,CARBON,SET (Incl. 2,11,12)

3086242

$67.99

3

BRUSH,CARBON,SET (Incl. 2,11,12)

3086242

$67.99

4

DESC NOT_AVAILABLE

3086245

Unavailable

5

BOLT&WASHER

3083730

$4.79

6

BOLT,ASM.

3086241

$3.83

7

Washer Set

3084982

Unavailable

7

Washer Set

3084982

Unavailable

8

ARMATURE ASM

3086244

$143.99

9

O-Ring

3240114

$5.59

10

BRACKET,FRONT ASM (Incl. 9)

3086243

$102.38

11

O-RING

3084408

Unavailable

12

NUT, FLANGE(10)

3083649

$3.99

13

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

14

CLIP

3084412

$9.59

15

SPRING, WEIGHT

3084411

$15.67

16

SPRING, RETURN

3084410

$2.47

17

CLIP

3084409

$7.19

18

ASM-GEAR SHAFT * (Incl. 13-17)

3087030

Unavailable
