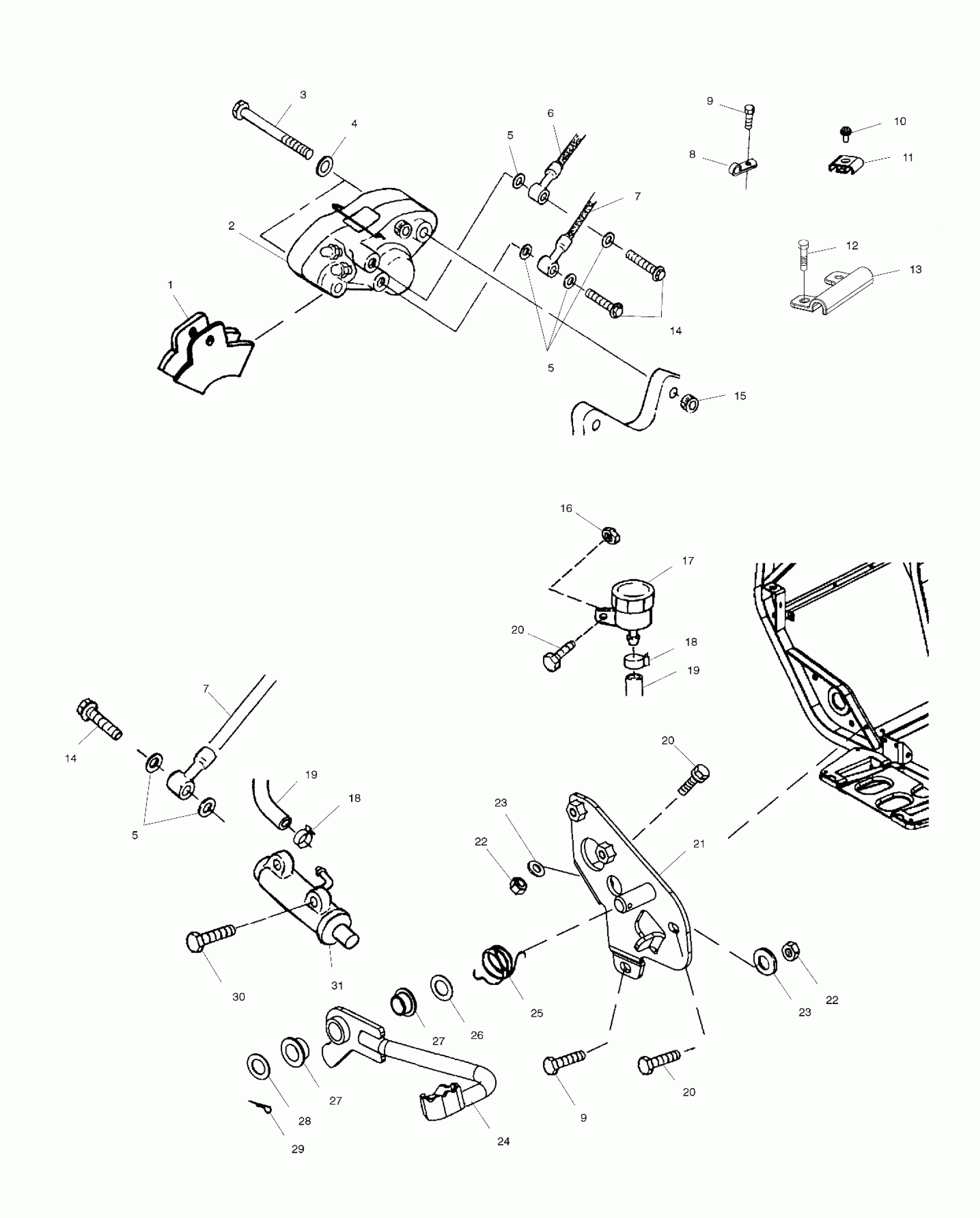

Polaris XPEDITION 425 - A01CK42AB REAR BRAKE - A01CK42AA (4964136413B013) Diagram

#

Description
Price

1

KIT,BRAKEPAD,R.AXLE,WW (Incl. Spacer and Pin)

2201189

$31.75

2

Kit, Bleeder Replacement

2201428

$27.99

2

PISTON, CALIPER DH2P, REAR

2201467

$89.03

2

Kit, Caliper Seal

2201385

$64.75

2

CALIPER,WW,DH2P,AFT,ASM.

1910449

$250.96

3

SCREW CAP(10)

7515406

$7.19

4

WASHER(10)

7555806

$1.49

5

Seal

5410988

$4.84

5

Seal

5410988

$4.84

5

Seal

5410988

$4.84

6

LINE-BRAKE,JB TO REAR,SS,SRS

1910476

Unavailable

7

LINE-BRAKE,FT M/C TO RR,SRS

1910477

Unavailable

7

LINE-BRAKE,FT M/C TO RR,SRS

1910477

Unavailable

8

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.19

9

SCREW,(10)

7517386

$1.49

9

SCREW,(10)

7517386

$1.49

10

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

11

CLIP-RETAINING,DUAL .250" LINE

7670126

$4.79

12

SCREW(10)

7512084

$1.49

13

CLAMP-BRAKE LINE

5434041

Unavailable

14

BOLT,BANJO,BRAKE

1930674

Unavailable

14

BOLT,BANJO,BRAKE

1930674

Unavailable

15

NUT LOCK(10)

7542403

$3.99

16

NUT(10)

7542153

$1.59

17

RESERVOIR ASM,R.BRAKE

1930854

$35.99

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

19

HOSE-RESERVOIR,HB

1910331

$4.95

19

HOSE-RESERVOIR,HB

1910331

$4.95

20

BOLT(10)

7512240

$3.99

20

BOLT(10)

7512240

$3.99

20

BOLT(10)

7512240

$3.99

21

MT,PIVOT,R.BRAKE,BLK.

1012753-067

Unavailable

22

NUT-LOCK(10)

7542122

$1.49

22

NUT-LOCK(10)

7542122

$1.49

23

WASHER(10)

7558301

$1.49

23

WASHER(10)

7558301

$1.49

24

BRAKE ROD,HB,5-SPEED,BLK

1012991-067

$51.99

25

SPRING-TORSION,BRAKE

7041750

$8.79

26

WASHER,SPRING

7556090

$2.63

27

BUSHING-PEDAL PIVOT

5433189

$3.99

27

BUSHING-PEDAL PIVOT

5433189

$3.99

28

WASHER(10)

7555919

$4.99

29

COTTER PIN(10)

7661401

$1.49

30

SCREW(10)

7515158

$4.79

31

BRAKE MSTR CYL,FOOT,BANJO

1910311

$166.01
