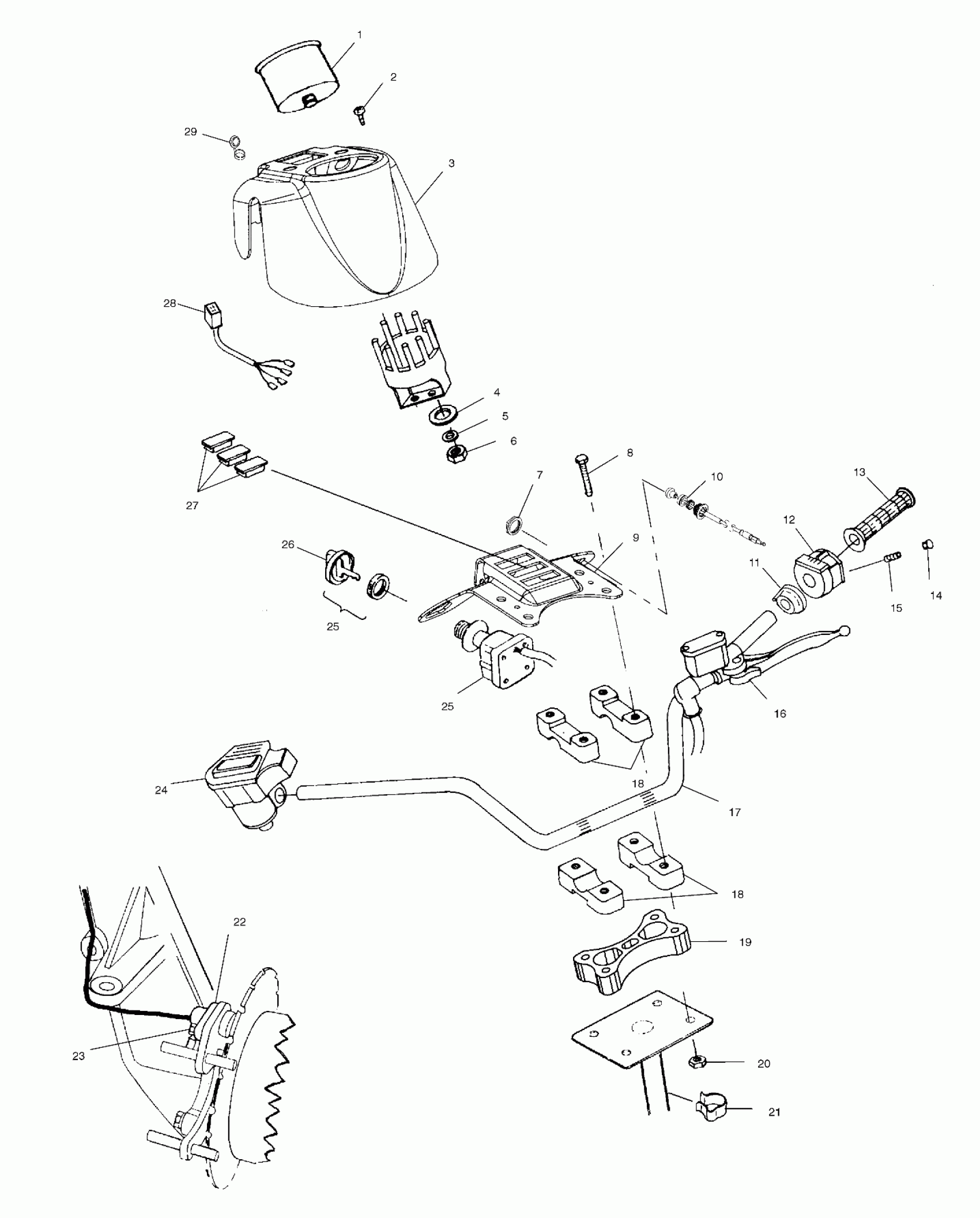

Polaris XPEDITION 425 - A01CK42AB HANDLEBAR and HEADLIGHT POD - A01CK42AA (4964136413B009) Diagram

#

Description
Price

1

SPEEDOMETER,XPED,6-PULSE,ASM.

3280357

Unavailable

2

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

3

PANEL,INSTRUMENT,BLACK

5433843-070

$53.17

4

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

5

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

6

NUT, BRASS(10)

7541933

Unavailable

7

NUT,CHOKE,M24X1.5 THD,M29 HEX

7080922

$3.17

8

Screw

7517224

Unavailable

9

BRKT,ACCS.INST PANEL,BLK

5244341-067

$5.71

10

CABLE-CHOKE,FRICTION,40"

7081008

$80.94

11

SPACER-SWITCH,LH,99

5433903

Unavailable

12

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010422

$151.99

13

GRIP-HNDLBAR,7/8 ID,ATV,BLACK

5433834-070

$28.32

14

PLUG,HOLE(10)

5432952

$6.46

15

SCREW,SET

7517625

$4.76

16

Asm., Master Cylinder (See Controls - Master Cylinder/Brake Line Pg. B7)

----

Unavailable

17

HANDLEBAR,TUBE,BLK

5224715-067

Unavailable

18

BLOCK,H'BAR,(300)

5630629

$11.51

18

BLOCK,H'BAR,(300)

5630629

$11.51

19

BLOCK,RISER,300,GEN 4

5630633

$18.89

20

NUT-LOCK(10)

7542122

$1.19

21

CLIP,CABLE RETAIN,(10)

7080631

Unavailable

22

SENSOR,HALLEFFECT

4010298

$117.37

22

CAP-HALL SENSOR

5132382

$24.27

23

Screw

7517658

$5.56

24

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B6, Ref. 5)

----

Unavailable

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Order Ignition Key by using the four digit number on the key.

4010278

$14.56

25

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

25

SWITCH-IGNITION,KEYSTART,ATV (Incl. Key)

4010390

$109.27

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Order Ignition Key by using the four digit number on the key.

4010278

$14.56

25

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

25

SWITCH-IGNITION,KEYSTART,ATV (Incl. Key)

4010390

$109.27

26

KEY SWITCH KEY COVER

5433534

$13.75

27

PLUG,INDIC.HOLE

5430967

$6.46

27

INDIC"HOT TEMPERATURE"

4040053

$32.37

27

INDIC"NEUT./REV."

4040054

$32.37

28

HARNESS-HEADLIGHT POD

2460728

$13.10

29

COVER,SCREW,HINGED,BLK

5432420

Unavailable
