Description

Price

1

CAP,GAS TANK

5433687

$20.22

2

GASKET,GAS CAP

5812123

$5.65

3

FOAM-SEAL,17"

5811899

Unavailable

4

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

Bolt

7517451

$5.59

7

LOCK WASHER(10)

7552801

$1.59

8

WASHER(10)

7558301

$1.49

9

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

9

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

10

FOAM,INTAKE,SPLASH

5811796

Unavailable

11

SPACER-.438X.75X1.375-B

5333936

Unavailable

12

NUTSERT,HEX(10)

7547069

$3.99

13

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

14

SCREW(10)

7517505

$1.59

15

KNOB,FUEL VALVE

5432559

$10.39

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

17

NUT,FUELVALVE,ATV

5432733

Unavailable

18

VALVE,3-WAY

7052161

$39.99

19

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

20

FITTING,FUEL OUT,RES.,Z

7052149

$23.99

21

FITTING,FUEL OUT,MAIN,Y

7052146

$27.99

22

TANK,FUEL ASM. (Incl. 5,20,21)

2520174

Unavailable

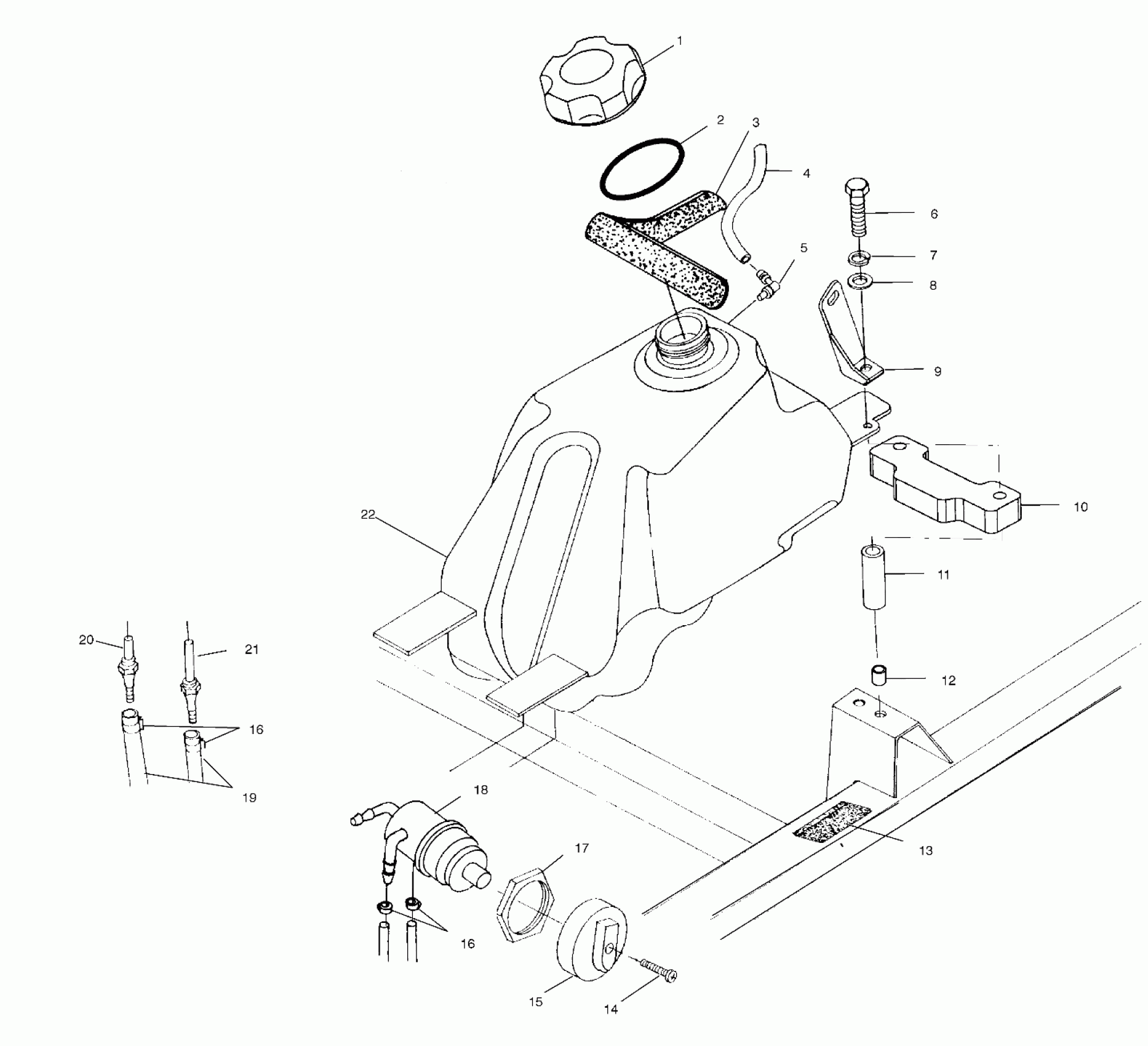

Polaris XPEDITION 425 - A01CK42AB FUEL TANK - A01CK42AA (4964136413A013) Diagram

CAP,GAS TANK

GASKET,GAS CAP

FOAM-SEAL,17"

FUEL LINE,1/8 ID,600 CM.

Vent, Tank

Bolt

LOCK WASHER(10)

WASHER(10)

BRKT,LH.R.FUELCOVER,BLK.

BRKT,RH.R.FUELCOVER,BLK.

FOAM,INTAKE,SPLASH

SPACER-.438X.75X1.375-B

NUTSERT,HEX(10)

PAD,FUELTANK BRKT. Substituted by 8360026

SCREW(10)

KNOB,FUEL VALVE

HOSE CLAMP, RED

HOSE CLAMP, RED

NUT,FUELVALVE,ATV

VALVE,3-WAY

FUEL LINE,1/4 ID(600 CM.)

FITTING,FUEL OUT,RES.,Z

FITTING,FUEL OUT,MAIN,Y

TANK,FUEL ASM. (Incl. 5,20,21)
