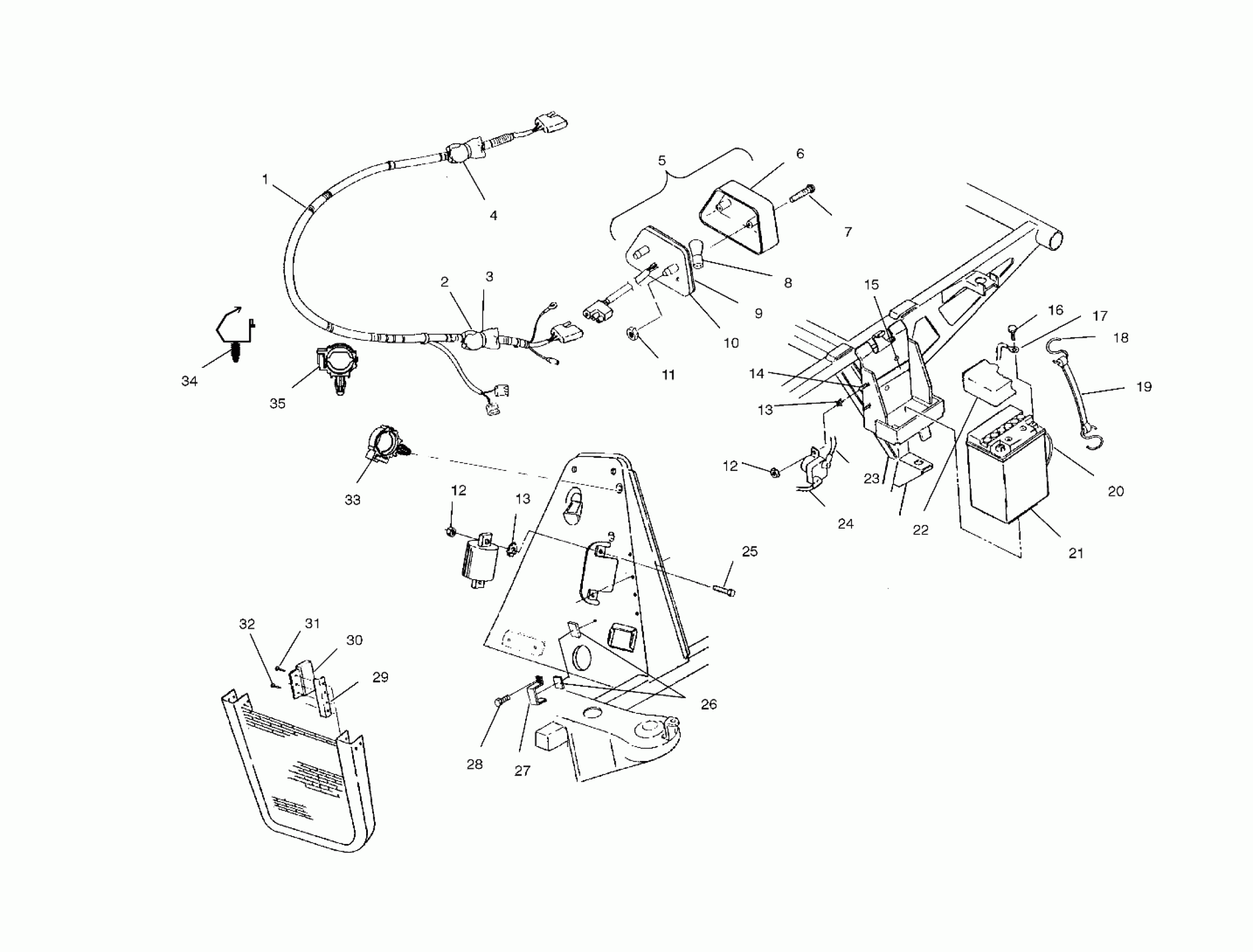

Polaris XPEDITION 425 - A01CK42AB ELECTRICAL/TAILLIGHT - A01CK42AA (4964136413B012) Diagram

#

Description
Price

1

HARNESS-MAINWIRE BRAKE START

2460864

Unavailable

2

KIT,CKT.BRKR,20 AMP

2200593

$68.79

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

4

KIT-CIRCUT BREAKER,FAN

2201795

$72.84

5

TAIL LIGHT NEGATIVE POLAR,ASM. (Incl. 6-11)

2410221

$38.41

6

LENS,TAILLIGHT

4032046

$32.37

7

Screw, Taillight

4032029

$4.76

8

BULB,TAILLIGHT

4030043

$6.46

9

GASKET,TAILLIGHT

4032045

$4.03

10

BACKING,TAILLIGHT

4032064

$83.33

11

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

12

NUT(10)

7541925

$0.79

12

NUT(10)

7541925

$0.79

13

WASHER(10)

7571602

$4.76

13

WASHER(10)

7571602

$4.76

14

SCREW(10)

7512027

$1.19

15

PAD-BATTERY

5810290

$7.27

16

BOLT,BATT,KIT(SHORT)

2200361

Unavailable

17

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

18

HOOK-BATT.H/D(10)

7010032

$1.59

19

STRAP,BATTERY HOLDDOWN

5410424

$4.84

20

TUBE,BATTERY VENT

5432077

Unavailable

21

Battery

4140006

$99.99

22

COVER,BATTERY

5431769

$15.37

23

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

24

CABLE,SOL/STARTER

4010093

$48.56

25

SCREW(10)

7512007

$3.97

26

PAD,RACK MOUNT

5810455

$3.22

27

BRACKET-CDI

5241416

$5.71

28

SCREW,(10)

7512024

$4.76

29

HEATSINK,RECT.

5131818

Unavailable

30

RECTIFIER/REGULATOR,LR-35

4060191

Unavailable

31

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

32

SCREW(10)

7512017

$4.76

33

CLIP,ROSEBUD

4020149

$6.35

34

CLIP-ROUTING

7670109

$2.38

35

CLIP, PLASTIC(10)

4020139

$4.76
