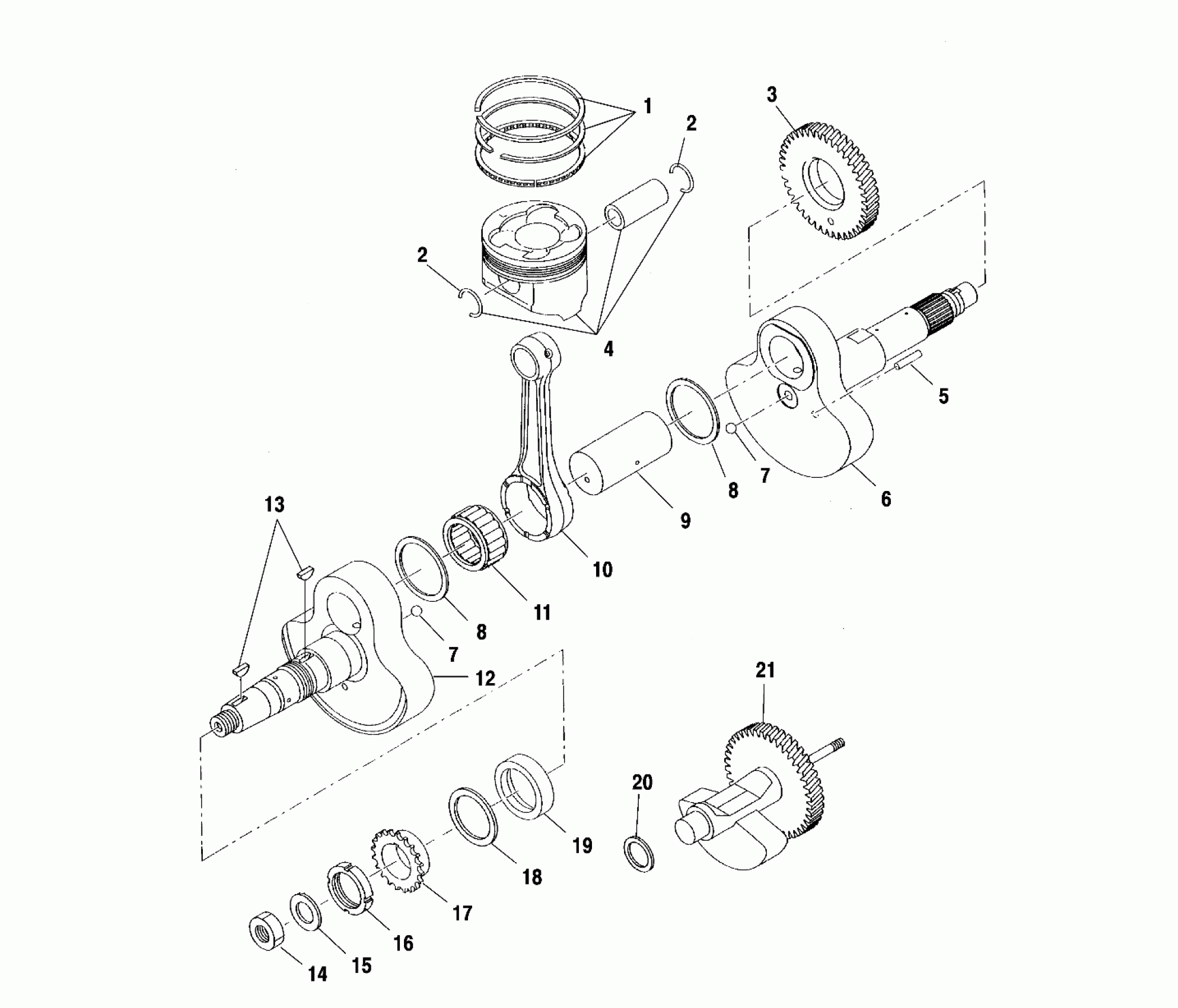

Polaris XPEDITION 425 - A01CK42AB CRANKSHAFT and PISTON - A01CK42AA (4964136413C009) Diagram

#

Description
Price

1

PISTON-RING SET(STD) (Std)

3086488

Unavailable

1

PISTON-RING SET(0.25 O/S) (0.25 O/S)

3086489

Unavailable

1

PISTON-RING SET(0.50 O/S) (0.50 O/S)

3086490

Unavailable

2

CLIP(10)

3085534

Unavailable

2

CLIP(10)

3085534

Unavailable

3

GEAR,BALANCER #1

3085345

$207.99

4

PISTON SET (STD) (Std) (Incl. 2,4)

3086207

Unavailable

4

PISTON SET(.25 O/S) (0.25 O/S)(Incl. 2,4)

3086208

Unavailable

4

PISTON SET(.50 O/S) (0.50 O/S)(Incl. 2,4)

3086209

Unavailable

5

Pin, Dowel

3085346

Unavailable

6

Crankshaft 2

3086204

$305.76

7

BALL, STEEL

3085024

$5.59

7

BALL, STEEL

3085024

$5.59

8

SPACER,CRANK PIN

3085344

$12.79

8

SPACER,CRANK PIN

3085344

$12.79

9

PIN,CRANK

3086205

$50.39

10

ROD,CONNECTING

3086206

Unavailable

11

BEARING,LARGE END Substituted by 3085343

3085400

$78.56

12

CRANKSHAFT ASM. (Incl. 3,5,6-12)

3086202

$814.99

12

Crankshaft 1

3086203

$374.99

13

KEY, WOODRUFF,(10)

3240168

$19.99

14

LOCKNUT

3083905

Unavailable

15

WASHER Substituted by 3086767

3083904

Unavailable

16

NUT

3085980

$19.79

17

Sprocket 1

3085979

Unavailable

18

SPACER (1.2)

3084894

$19.99

18

SPACER (0.6)

3240088

$10.39

18

SPACER (1.0)

3084893

$19.99

18

SPACER (0.8)

3084892

$12.79

19

SPACER-CRANKSHAFT

3086211

$11.99

20

SPACER (1.2)

3084897

$6.39

20

SPACER (0.8)

3084895

$6.39

20

SPACER (1.0)

3084896

$6.39

21

SHAFT-BALANCER *

3086210

$223.99
