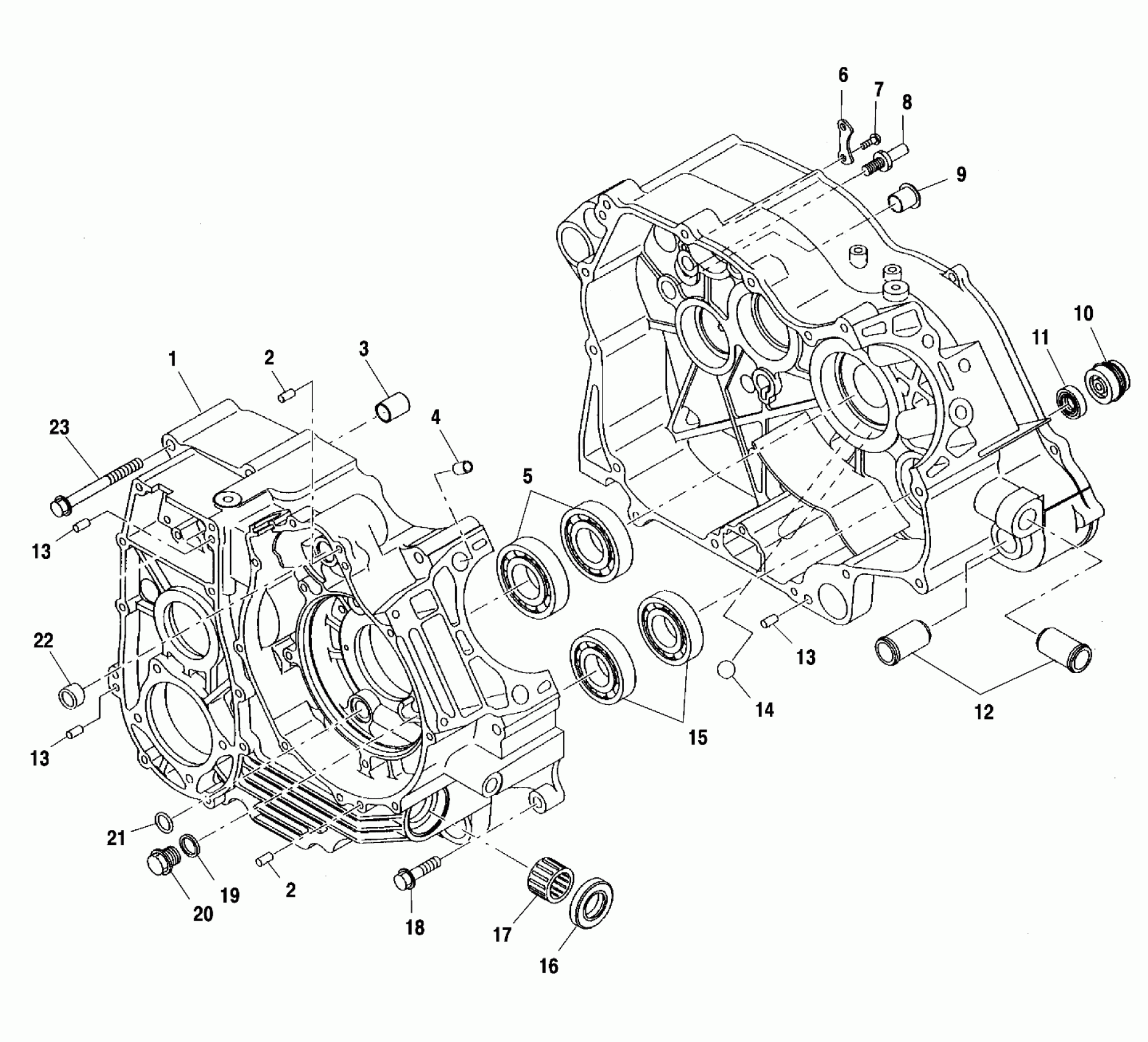

Polaris XPEDITION 425 - A01CK42AB CRANKCASE - A01CK42AA (4964136413C006) Diagram

#

Description
Price

1

CRANKCASE ASM. (Incl. 2,3,5-18,22,23)

3086190

$1,124.99

2

PIN, DOWEL Substituted by 3086838

3080103

$7.14

2

PIN, DOWEL Substituted by 3086838

3080103

$7.14

3

BUSHING

3086193

Unavailable

4

PIN,STRAIGHT

3084838

Unavailable

5

BEARING, BALL

3080676

Unavailable

6

PLATE,BEARING

3086196

$16.35

7

Screw

3081890

$0.79

8

PIN STOPPER

3086195

$11.35

9

Bush

3086197

$9.76

10

SEAL,MECHANICAL

3084837

$68.79

11

SEAL, OIL

3084836

Unavailable

12

Pipe, Water

3083452

Unavailable

13

Pin, Dowel

3084840

$6.46

13

Pin, Dowel

3084840

$6.46

13

Pin, Dowel

3084840

$6.46

14

BALL,STEEL

3086194

$1.83

15

BEARING,BALL

3084834

Unavailable

16

SEAL,OIL

3086192

Unavailable

17

BEARING,NEEDLE

3086191

Unavailable

18

Bolt, Flange

3085295

$1.81

19

GASKET

3082956

$4.84

20

PLUG Substituted by 3086749

3083453

Unavailable

21

O-RING

3084847

$6.46

22

BUSHING, STARTER

3083669

Unavailable

23

BOLT,FLANGE

3084841

$3.17
