Description

Price

1

SHAFT-SHIFT FORK

3086375

$11.99

1

SHAFT-SHIFT FORK

3086375

$11.99

2

FORK,SHIFT,DRIVEN

3086377

Unavailable

3

BOLT,LOCK

3086370

$3.19

4

Washer

3086369

Unavailable

5

CAM,SHIFT

3086368

Unavailable

6

BEARING-BALL

3086373

$22.39

7

Pin

3086371

Unavailable

8

SHIFT DRUM,ASM. (Incl. 3-8,21)

3086366

$247.19

8

DRUM,SHIFT

3086367

$231.19

9

PIN,DOWEL

3086379

$1.98

10

FORK,SHIFT DRIVE

3086376

$78.39

11

BEARING-BALL

3086348

$22.39

12

Washer

3086350

$1.49

13

GEAR,2ND DRIVE

3086341

$55.19

14

Collar

3086345

$6.23

15

GEAR,5TH DRIVE

3086344

Unavailable

16

Washer

3086346

$5.43

16

Washer

3086346

$5.43

17

RING,SNAP

3086349

$1.83

17

RING,SNAP

3086349

$1.83

18

GEAR,4TH DRIVE

3086343

$152.79

19

GEAR,3RD DRIVE

3086342

$83.99

20

SHAFT,MAIN (Incl. 11-20,22)

3086339

$331.99

20

SHAFT-MAIN

3086340

$194.39

21

Pin

3086372

Unavailable

22

BEARING-BALL

3086347

$28.79

23

BUSH,FLANGE

3086382

$19.19

24

Washer

3086313

$6.23

25

WASHER-LOCK

3086286

Unavailable

26

NUT,LOCK

3086285

Unavailable

27

GEAR,COMPL

3086358

$175.19

28

GEAR,3RD DRIVEN

3086354

$124.79

29

RING,SNAP

3086363

$2.23

29

RING,SNAP

3086363

$2.23

29

RING,SNAP

3086363

$2.23

30

Washer

3086359

$3.99

30

Washer

3086359

$3.99

31

GEAR,4TH DRIVEN

3086355

$95.19

32

GEAR,5TH DRIVEN

3086356

$104.79

33

GEAR,2ND DRIVEN

3086353

$171.19

33

GEAR,2ND DRIVEN

3086353

$171.19

34

Clutch

3086357

$150.39

35

Washer

3086364

$9.59

36

BEARING-BALL

3086360

$29.59

37

Spacer

3086383

$3.83

38

SPROCKET-DRIVE

3086374

$67.19

39

SHAFT,COUNTER ASM. (Incl. 27-36,40-42)

3086351

$624.99

39

SHAFT-COUNTER

3086352

$179.99

40

COUPLER,MALE

3081513

$19.99

41

BEARING-BALL

3086362

$27.99

42

Plug

3086365

$9.11

43

Pin

3086337

$6.23

44

Pin

3086338

Unavailable

45

GEAR,COMPL

3086335

$150.39

46

Collar

3086336

$24.39

47

REVERSE SHAFT,ASM. (Incl. 43-47)

3086333

$181.59

47

SHAFT-REVERSE

3086334

$25.98

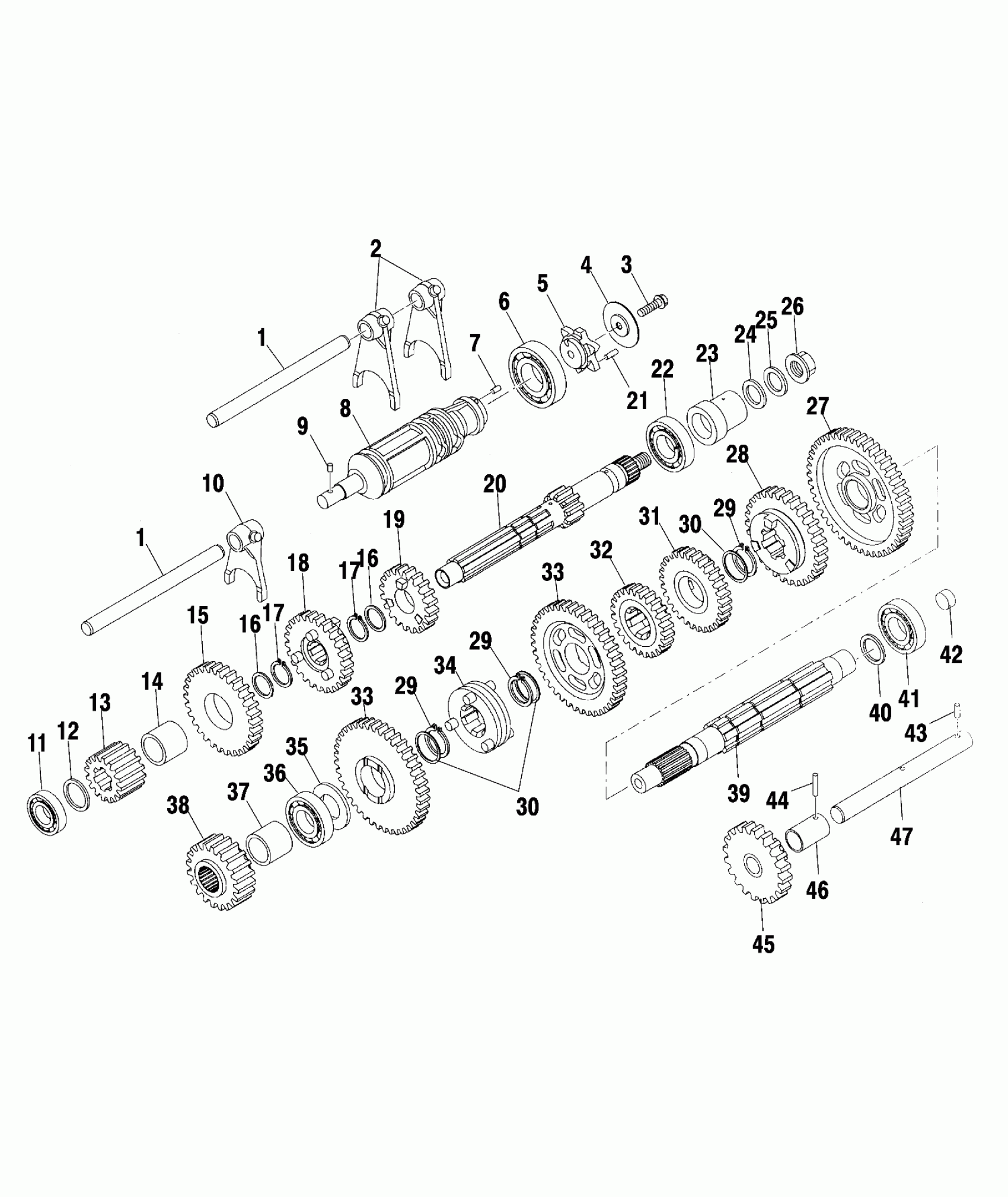

Polaris XPEDITION 425 - A01CK42AB CLUTCH - A01CK42AA (4964136413D008) Diagram

SHAFT-SHIFT FORK

SHAFT-SHIFT FORK

FORK,SHIFT,DRIVEN

BOLT,LOCK

Washer

CAM,SHIFT

BEARING-BALL

Pin

SHIFT DRUM,ASM. (Incl. 3-8,21)

DRUM,SHIFT

PIN,DOWEL

FORK,SHIFT DRIVE

BEARING-BALL

Washer

GEAR,2ND DRIVE

Collar

GEAR,5TH DRIVE

Washer

Washer

RING,SNAP

RING,SNAP

GEAR,4TH DRIVE

GEAR,3RD DRIVE

SHAFT,MAIN (Incl. 11-20,22)

SHAFT-MAIN

Pin

BEARING-BALL

BUSH,FLANGE

Washer

WASHER-LOCK

NUT,LOCK

GEAR,COMPL

GEAR,3RD DRIVEN

RING,SNAP

RING,SNAP

RING,SNAP

Washer

Washer

GEAR,4TH DRIVEN

GEAR,5TH DRIVEN

GEAR,2ND DRIVEN

GEAR,2ND DRIVEN

Clutch

Washer

BEARING-BALL

Spacer

SPROCKET-DRIVE

SHAFT,COUNTER ASM. (Incl. 27-36,40-42)

SHAFT-COUNTER

COUPLER,MALE

BEARING-BALL

Plug

Pin

Pin

GEAR,COMPL

Collar

REVERSE SHAFT,ASM. (Incl. 43-47)

SHAFT-REVERSE
