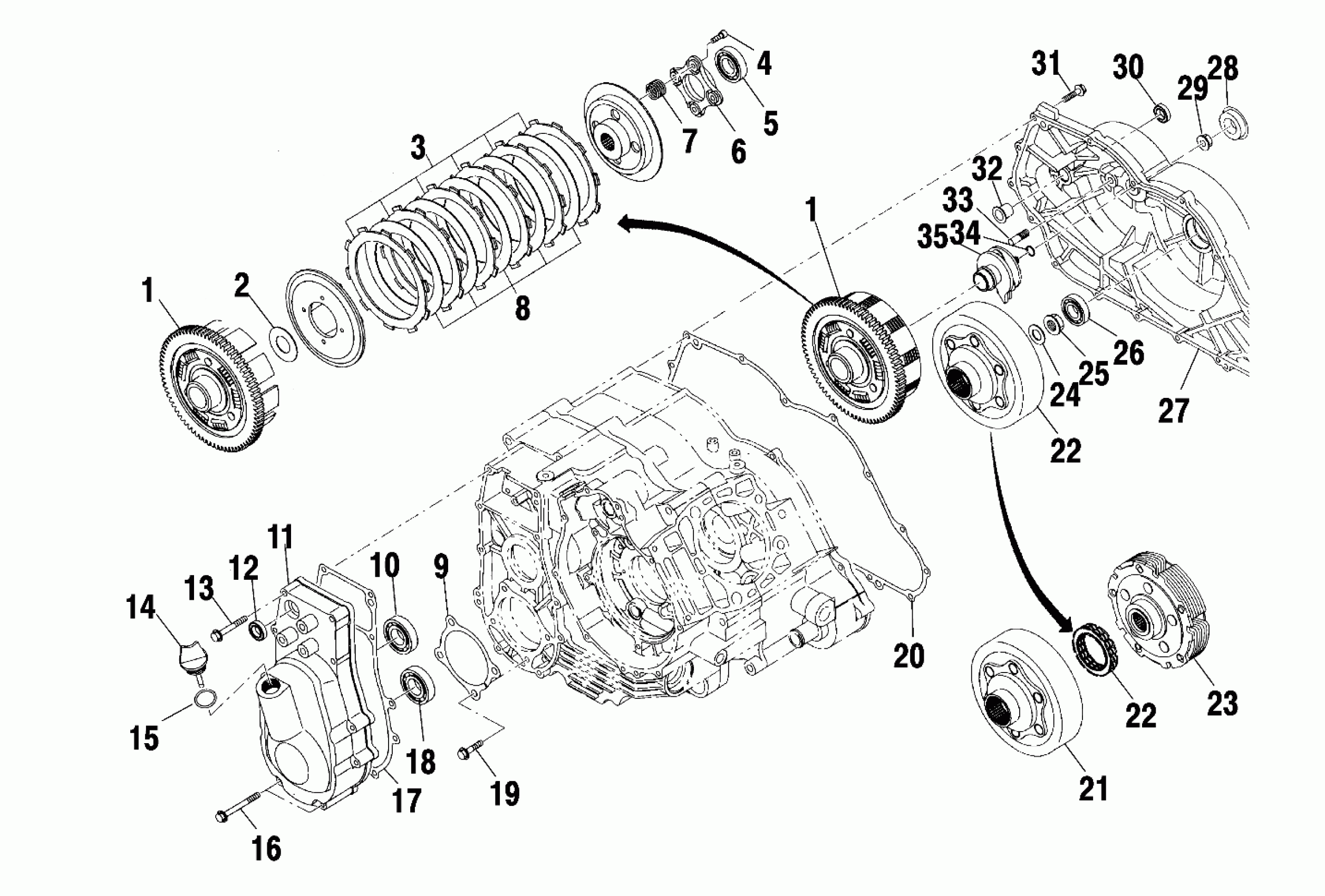

Polaris XPEDITION 425 - A01CK42AB CLUTCH - A01CK42AA (4964136413D006) Diagram
#
Description
Price
1
CLUTCH AY,(MULTIPLE) (Incl. 1-8)
3086274
Unavailable
1
CLUTCH,OUTER COMPLETE
3086275
Unavailable
1
CLUTCH AY,(MULTIPLE) (Incl. 1-8)
3086274
Unavailable
1
CLUTCH,OUTER COMPLETE
3086275
Unavailable
3
CLUTCH,DISK
3086276
Unavailable
4
BOLT,SOCKET
3086281
Unavailable
5
BEARING,BALL
3086282
Unavailable
6
PLATE,LIFTER
3086280
Unavailable
8
CLUTCH,PLATE
3086277
Unavailable
9
SHIM (DRIVE PINION).3MM (.3)
3086266
Unavailable
9
SHIM (DRIVE PINION).275MM (.275)
3086270
Unavailable
11
COVER-REDUCTION Substituted by 3086256
3086501
Unavailable
12
SEAL,OIL
3086258
Unavailable
14
Plug
3086502
Unavailable
16
Bolt, Flange
3084179
Unavailable
17
GASKET
3086283
Unavailable
20
GASKET-CLUTCH COVER
3086284
Unavailable
22
CLUTCH(CENTRIFUGAL)ASM. (Incl. 21-23)
3086504
Unavailable
22
CLUTCH(CENTRIFUGAL)ASM. (Incl. 21-23)
3086504
Unavailable
23
PLATE,ASM.
3086505
Unavailable
27
CLUTCH COVER ASM. (Incl. 26,27,29,30,32-35)
3086246
Unavailable
27
DESC NOT_AVAILABLE
3086247
Unavailable
28
BLIND PLUG
3086255
Unavailable
30
SEAL-OIL
3086249
Unavailable
31
BOLT, FLANGE
3084874
Unavailable
32
FLANGE,BUSH
3086248
Unavailable
35
LEVER,RELEASE
3086250
Unavailable
