Description

Price

1

RING

3130507

$5.59

2

E-RING,(10)

3130508

$6.46

3

NEEDLE,JET Substituted by 3131224

3130963

$34.74

4

RING

3130752

$5.59

5

DIAPHRAGM ASM.

3130732

$123.99

6

JET-NEEDLE(P-8) (P-8)

3131352

$44.51

7

SCREW

3130541

$11.19

8

WASHER,SPRING

3130540

$4.79

9

JETBLOCK ASM.

3130504

$59.99

10

WASHER (10)

3130014

$1.59

11

JET-MAIN(#152.5) Substituted by 3130570 (#150)

3131304

Unavailable

12

Diaphragm

3131115

Unavailable

13

Spring

3131353

$6.63

14

Cover

3131117

Unavailable

15

SCREW

3130535

$7.19

15

SCREW

3130535

$7.19

16

CAP

3130519

$10.39

17

E-RING

3130518

$1.59

18

PACKING

-------

Unavailable

19

SEAL

3130515

$11.99

19

SEAL

3130515

$11.99

20

PIN, FLOAT

3130361

$8.89

21

PLATE

3130594

$27.99

22

O-RING

3130532

$31.99

23

SCREW

3130520

$1.59

24

FLOATBODY ASM.

3130590

$103.99

25

SCREW

3130521

$10.39

26

FLOAT ASM.

3130529

$79.99

27

SCREW

3130591

$3.99

28

VALVE,NEEDLE,(1.5) Substituted by 3130531 (1.5)

3130668

Unavailable

29

O-RING

3130533

$5.59

30

JET-PILOT(#45) (#42.5)

3131354

Unavailable

31

O-Ring

3130522

$5.65

32

Washer

3130523

$2.39

33

Spring

3130525

$4.79

34

Adjuster

3130524

$23.99

35

SCREW, ADJ.

3130546

$13.59

36

Ring

3130545

$12.13

37

Spring

3130544

$9.59

38

VALVE,THROTTLE (100)

3130502

$47.99

39

SPRING

3130589

$23.99

40

Ring

3130514

$7.19

41

SCREW

3130501

$3.99

42

SHAFT ASM,THROTTLE

3130513

$79.99

43

GUIDE,CABLE

3130543

$27.99

44

COVER

3130511

$43.99

45

O-Ring

3130512

$39.99

46

HOLDER,GUIDE

3130199

$28.32

47

SPRING

3130538

$4.79

48

PLUNGER ASM. Substituted by 3130539

3130593

$34.74

49

JET,AIR,#100 (#100)

3131229

$7.43

50

ASM-CARBURETOR (Incl. all less 15,43,44,45,51)

3131355

Unavailable

51

SCREW & WASHER(10)

3084205

$3.99

52

Spring

3131351

Unavailable

53

Cover

3130503

$63.99

54

SCREW-MIKUNI C2=0408

3130592

Unavailable

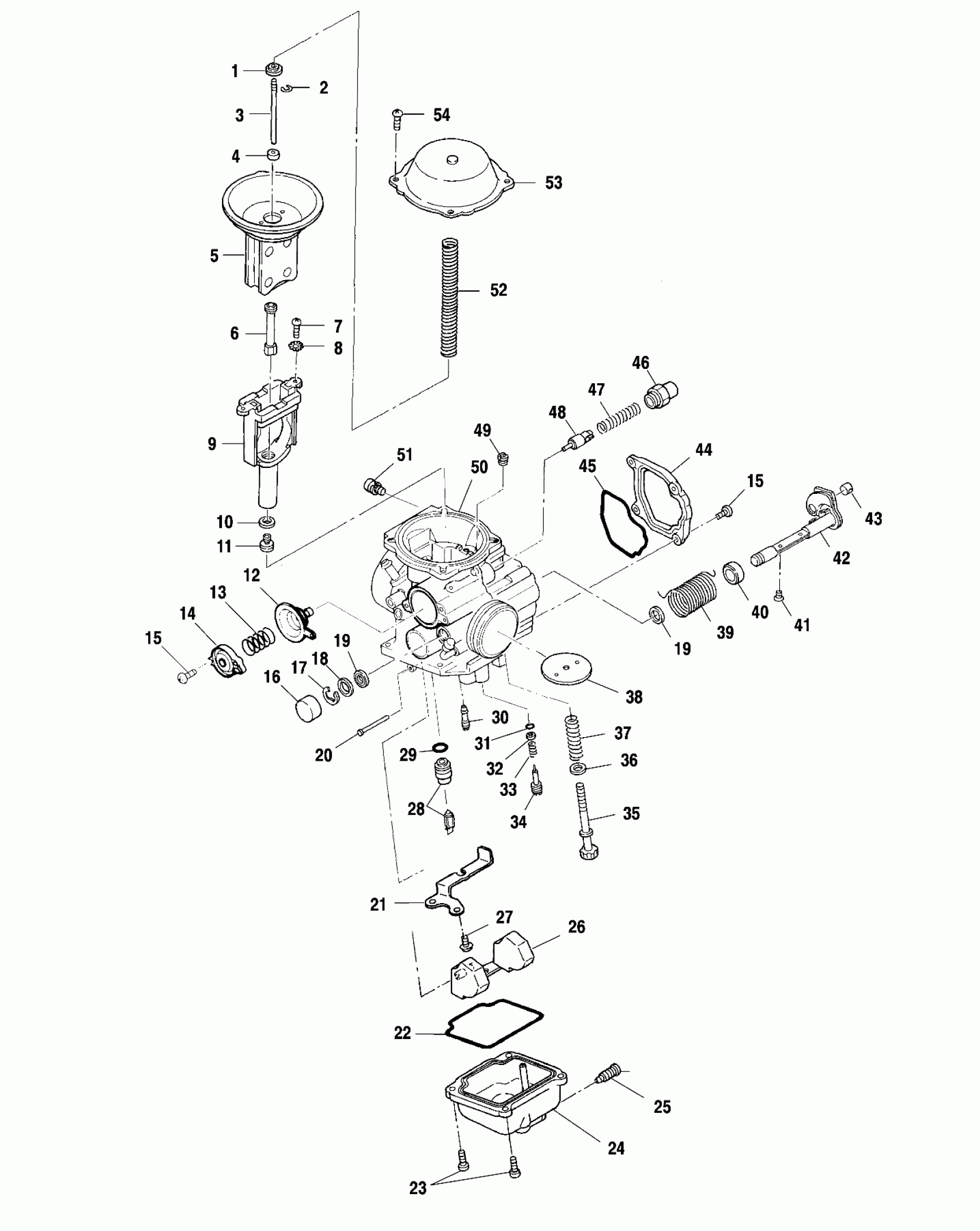

Polaris XPEDITION 425 - A01CK42AB CARBURETOR - A01CK42AA (4964136413C011) Diagram
