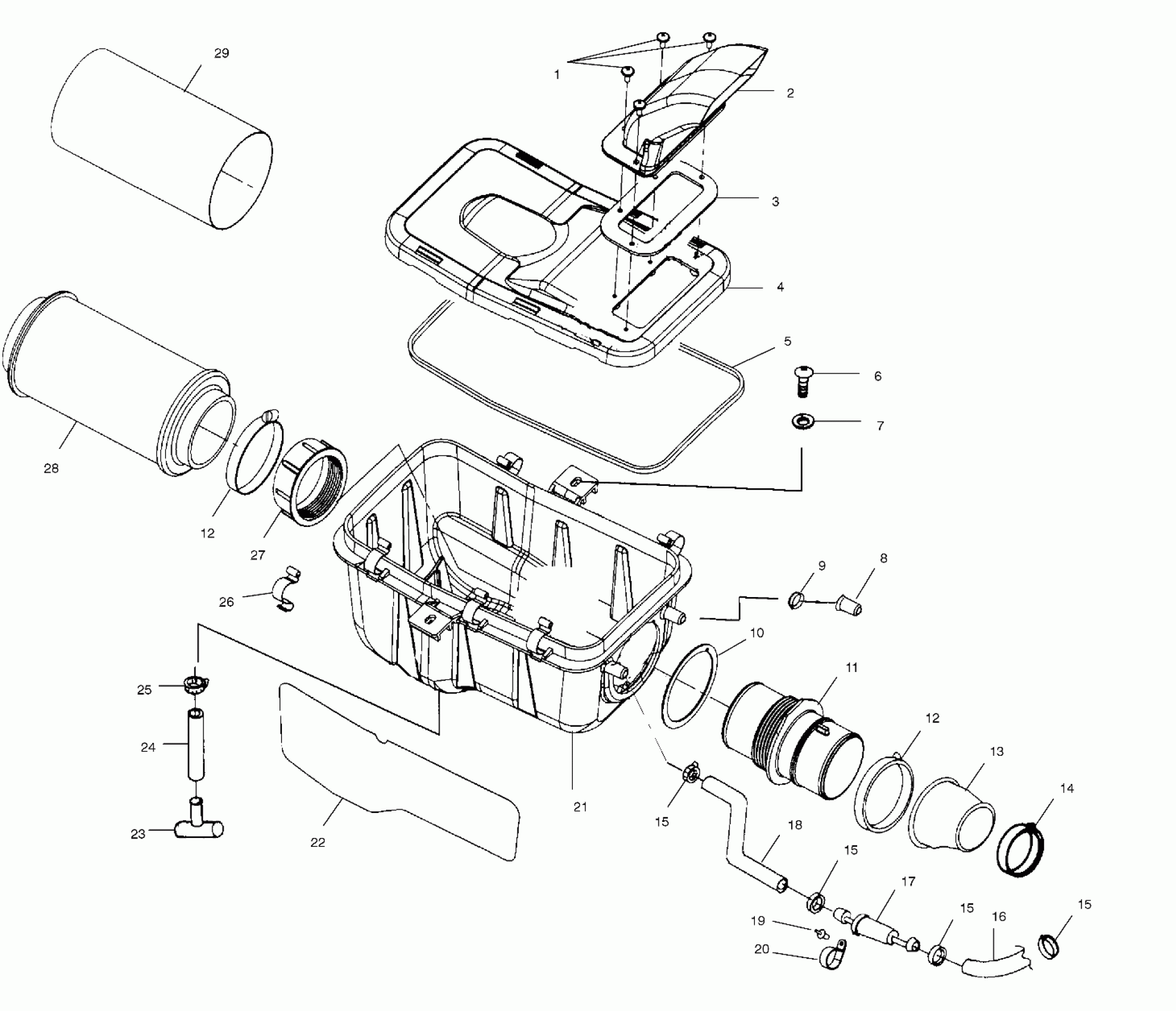

Polaris XPEDITION 425 - A01CK42AB AIR BOX - A01CK42AA (4964136413A014) Diagram

#

Description
Price

1

SCREW,SEMS(10)

7517541

$4.76

2

DUCT,INLET,AIRBOX COVER

5432859

Unavailable

3

GASKET,INTAKE

5411422

$6.59

4

COVER,AIRBOX

5432868

$56.65

5

SEAL,AIRBOX COVER

5811482

$28.32

6

SCREW(10)

7515179

$2.38

7

WASHER(10)

7558301

$1.19

8

CAP,END,AIRBX IN,406-12,3/4BLK

5433396

$4.84

9

CLAMP,SPRING,(10)

7080534

$1.59

10

GASKET,CARB.IN.DUCT

5830128

Unavailable

11

DUCT,CARB.INLET

5432473

Unavailable

12

CLAMP,BAND,NARROW

7080413

$3.17

12

CLAMP,BAND,NARROW

7080413

$3.17

13

BOOT,CARB,(425 MAN)

5411539

Unavailable

14

CLAMP, NARROW BAND(10)

7080511

$4.76

15

CLAMP,HOSE

7080699

$1.59

15

CLAMP,HOSE

7080699

$1.59

15

CLAMP,HOSE

7080699

$1.59

15

CLAMP,HOSE

7080699

$1.59

16

HOSE,BREATHER,FORMED,.38 I.D.

5411723

$13.10

17

FILTER,BREATHER,IN LINE

2530029

$6.35

18

HOSE,BREATHER,FORMED,.38 I.D.

5411724

$13.10

19

RIVET(50)

7621462

$1.19

20

CLAMP,HOSE,1",NYLON

7080653

$4.76

21

BOX,AIR INTAKE,4-STRK

5433678

$137.60

22

FOIL,AIRBOX

5811650

Unavailable

23

Plug, Trap

5432377

Unavailable

24

FUEL LINE

8450059-150

Unavailable

25

CLAMP,HOSE,(10)

7080650

$3.97

26

CLIP-AIR BOX

5242044

$9.52

27

COLLAR,CARB INLET

5432601

$12.94

28

FILTER,AIR INTAKE

7080595

$27.78

29

FILTER,PRECLEAN.SLEEVE

5811633

$11.90
