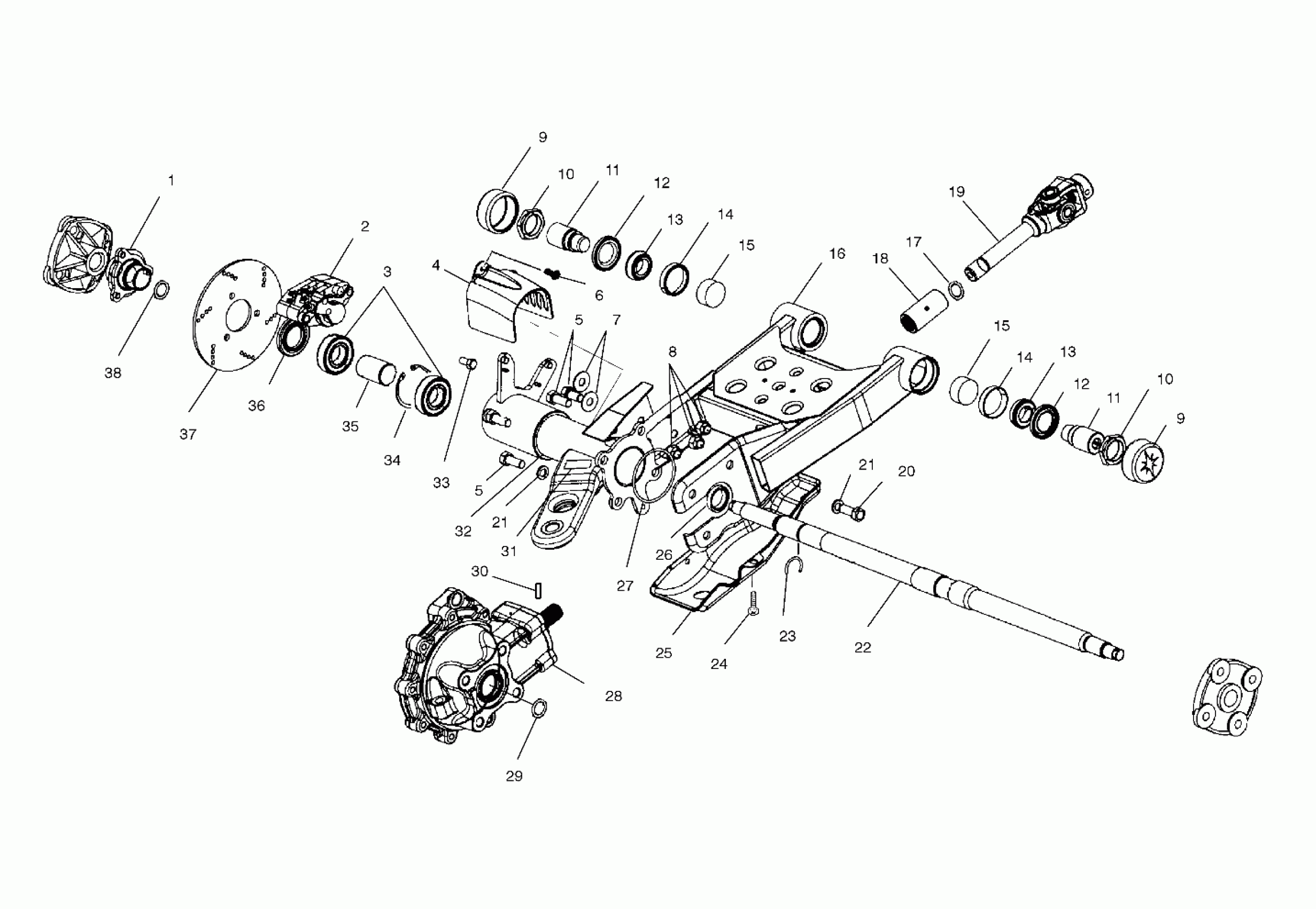

Polaris XPEDITION 425 - A00CK42AA SWING ARM/REAR GEARCASE MOUNTING - A00CK42AA (4949304930C006) Diagram

#

Description
Price

1

HUB,BRAKE DISC,MACH

5132152

Unavailable

2

Asm., Rear Brake Caliper (See Rear Brake Pg C2, Ref. 2)

-------

Unavailable

3

BEARING,BALL,DBL.SEAL

3513523

$31.99

4

SHIELD-BRAKE LINE,REAR

5411653

$7.43

5

Bolt

7517604

Unavailable

5

Bolt

7517604

Unavailable

6

SCREW(10)

7512084

$1.49

7

WASHER(10)

7555721

$1.49

8

NUT FLEX,(10)

7542703

Unavailable

9

CAP,SWINGARM PIVOT

5411532

Unavailable

9

CAP,SWINGARM PIVOT

5411532

Unavailable

10

NUT,JAM,SWINGARMPIVOT

5131863

Unavailable

10

NUT,JAM,SWINGARMPIVOT

5131863

Unavailable

11

PIVOT,SWINGARM,THREADED

5131864

Unavailable

11

PIVOT,SWINGARM,THREADED

5131864

Unavailable

12

SEAL,SWINGARM PIVOT

3610072

Unavailable

12

SEAL,SWINGARM PIVOT

3610072

Unavailable

13

BRG,TAPER.ROLL.CONE

3554506

$31.99

13

BRG,TAPER.ROLL.CONE

3554506

$31.99

14

BRG,TAPER,ROLL CUP

3554507

$31.99

14

BRG,TAPER,ROLL CUP

3554507

$31.99

15

SEAL-SWINGARM PIVOT

5411602

Unavailable

15

SWING ARM (Incl. 14,15)

1541323

Unavailable

15

SEAL-SWINGARM PIVOT

5411602

Unavailable

15

SWING ARM (Incl. 14,15)

1541323

Unavailable

16

SWINGARM,REAR,BLK

1012839-067

Unavailable

17

O-RING

5411092

$1.60

18

ZERK,FITTING,THREADED(10)

7080433

$1.49

18

COUPLING-PROP SHAFT,GREASED

5132201

$59.99

19

PROPSHAFT ASM,REAR

1380137

$204.99

20

BOLT-1/2-13X1 1/4 HXHD GR5-Z

7517585

$4.79

21

LOCK WASHER(10)

7553201

$3.99

21

LOCK WASHER(10)

7553201

$3.99

22

AXLE,REAR

5131862

$259.59

23

RING,RETAINING

7710482

Unavailable

24

Screw

7517612

Unavailable

25

SKID PLATE,REAR

1012881

$58.39

25

PLATE-SKID,REAR HOUSING,BLK

5242851-067

$19.83

25

PAD-RUBBER

5811716

Unavailable

26

COLLAR,R.AXLE LOCK

5131930

Unavailable

27

O-Ring

5411707

Unavailable

28

Asm., Rear Gearcase (See Rear Housing Pg. C5 for Details)

-------

Unavailable

29

O-Ring

5411531

Unavailable

30

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

31

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

32

TUBE,AXLE,LH,BLK

1012740-067

$212.94

33

BOLT(10)

7515481

$2.63

34

RING,RETAINER,INT.

7710471

$13.59

35

SPACER-BEARING

5132075

Unavailable

36

SEAL,REAR AXLE

3610071

$15.99

37

DISC,BRAKE,VENTED

5211849

Unavailable

38

O-RING Substituted by 5411092

5411529

Unavailable
