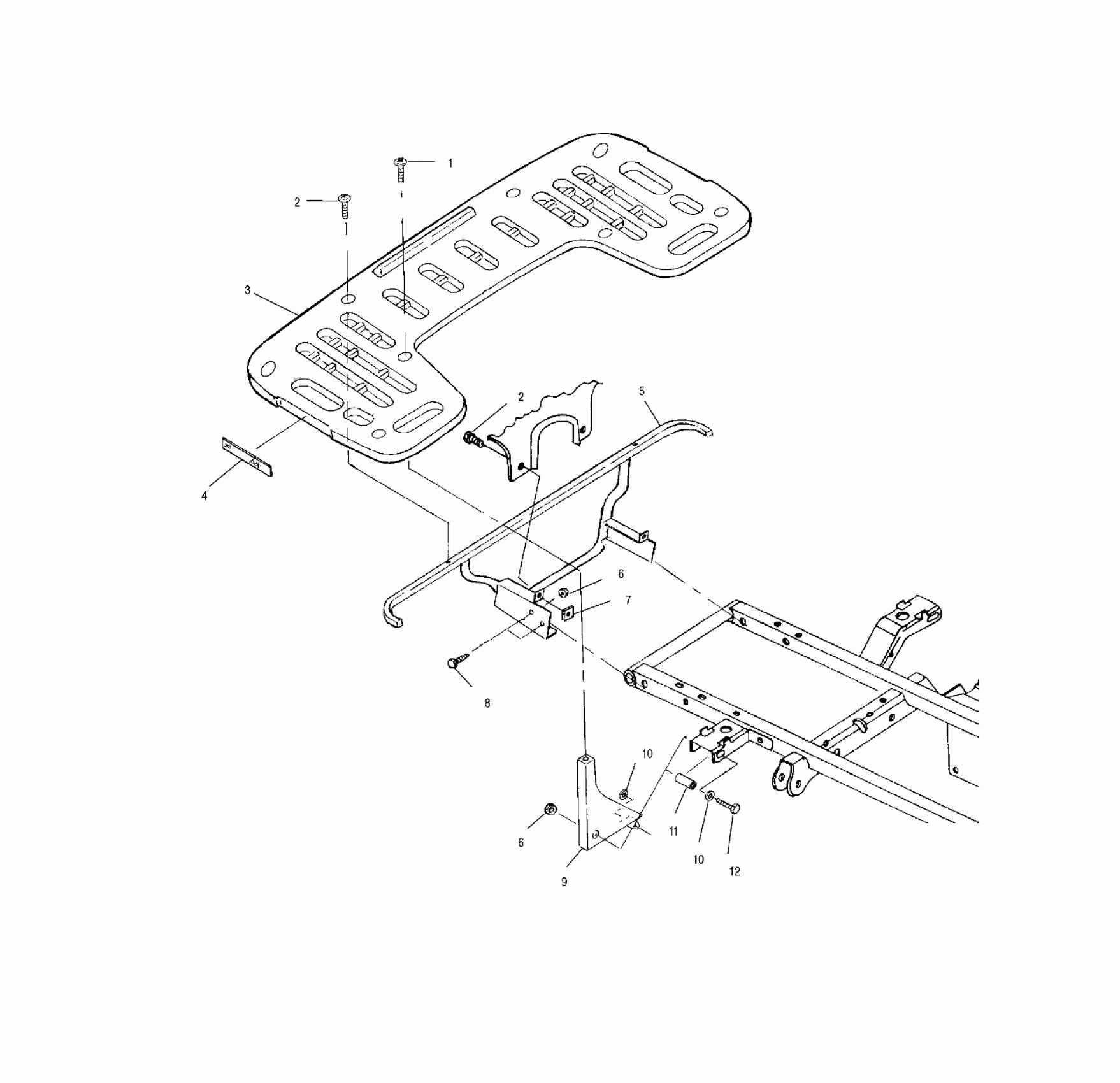

Polaris XPEDITION 425 - A00CK42AA REAR RACK MOUNTING - A00CK42AA (4949304930A008) Diagram

SCREW(10)

7515193

Unavailable

SCREW(10) Substituted by 7517685

7515194

Unavailable

SCREW(10) Substituted by 7517685

7515194

Unavailable

RACK ASM,REAR Substituted by 2670174-070 (Incl. Ref. 4 and Warning Decal)

2670174

Unavailable

REFLECTOR RED

2670070

$9.91

SUPPORT,R.RACK,(500),BLK

1040490-067

Unavailable

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

Nut

7670096

$1.59

BOLT(10)

7512329

$3.99

MNT,LH.FRT,R.RACK,BLK

1040524-067

Unavailable

MNT,RH.FRT,R.RACK,BLK.

1040525-067

Unavailable

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

Spacer

5333332-067

$6.63

SCREW(10)

7515385

$5.59
