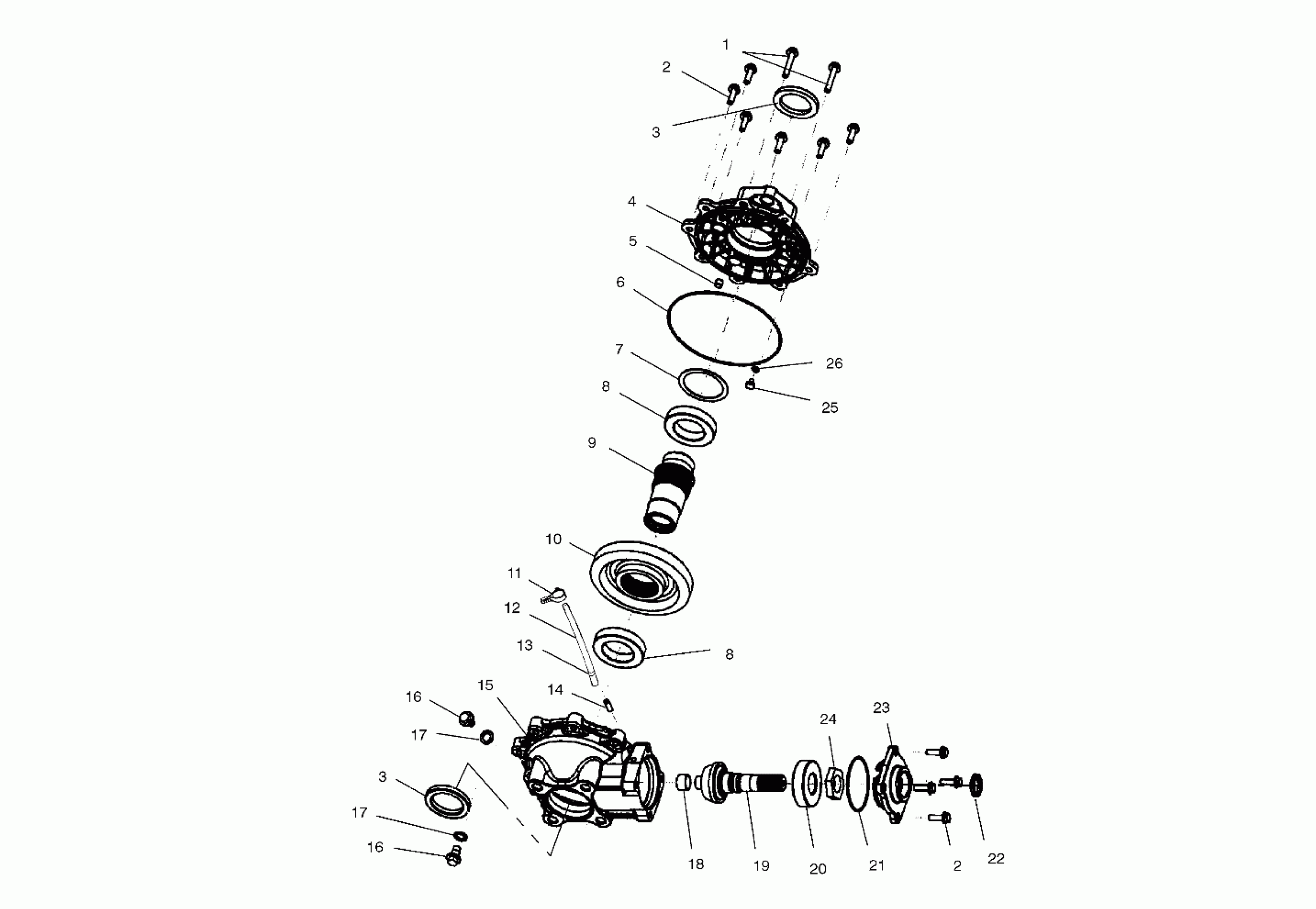

Polaris XPEDITION 425 - A00CK42AA REAR HOUSING - A00CK42AA (4949304930C005) Diagram

#

Description
Price

-

GEARCASE,REAR,ASM. Substituted by 1341321 (Incl. 1-10, 14-26) (If built before 7-01-99)

1341309

Unavailable

-

GEARCASE,REAR,ASM. (Incl. 1-10, 14-26) (If built after 7-01-99)

1341321

Unavailable

1

Screw

3233585

Unavailable

2

Screw

3233252

$5.27

2

Screw

3233252

$5.27

3

Seal

3233256

Unavailable

3

Seal

3233256

Unavailable

4

GEARCASE COVER OUTPUT (For Gearcase 1341309)

3233584

$262.76

4

COVER,OUTPUT (For Gearcase 1341321)

3233741

Unavailable

5

PIPE,KNOCK (For Gearcase and 1341309)

3233529

$7.99

6

O-RING 166

3233587

$32.37

7

SHIM 3.1 X 2.5

3233581

$39.59

8

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

8

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

9

SHAFT,REAR AXEL

3233580

Unavailable

10

GEAR,31T (For Gearcase 1341321)

3233740

Unavailable

10

GEAR BEVEL 31T REAR (For Gearcase 1341309)

3233579

Unavailable

11

CLIP,SILENCER,(10)

7670102

$2.39

12

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

13

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

14

TUBE,VENT

3233524

$7.19

15

GEARCASE,REAR HOUSING (For Gearcase 1341321)

3233739

Unavailable

15

GEARCASE,REAR (For Gearcase 1341309)

3233586

Unavailable

16

PLUG,OIL FILL

3233711

Unavailable

16

PLUG,OIL FILL

3233711

Unavailable

17

Washer

3233324

$8.99

17

Washer

3233324

$8.99

18

Bushing

3233577

$19.99

19

SHAFT-PINION,10T BEVEL,REAR (For Gearcase 1341309)

3233707

Unavailable

19

SHAFT,PINION,10T (For Gearcase 1341321)

3233738

$242.84

20

BEARING-BALL (For Gearcase 1341321)

3233714

$31.99

20

BEARING,BALL Substituted by 3233714 (For Gearcase 1341309)

3233575

Unavailable

21

O-RING 151

3233588

$10.55

22

Seal

3233319

$27.99

23

GEARCASE,COVER

3233573

Unavailable

24

NUT

3233574

Unavailable

25

THRUST BUTTON

3233582

$7.91

26

SHIM .450 X .265

3233583

$26.39
