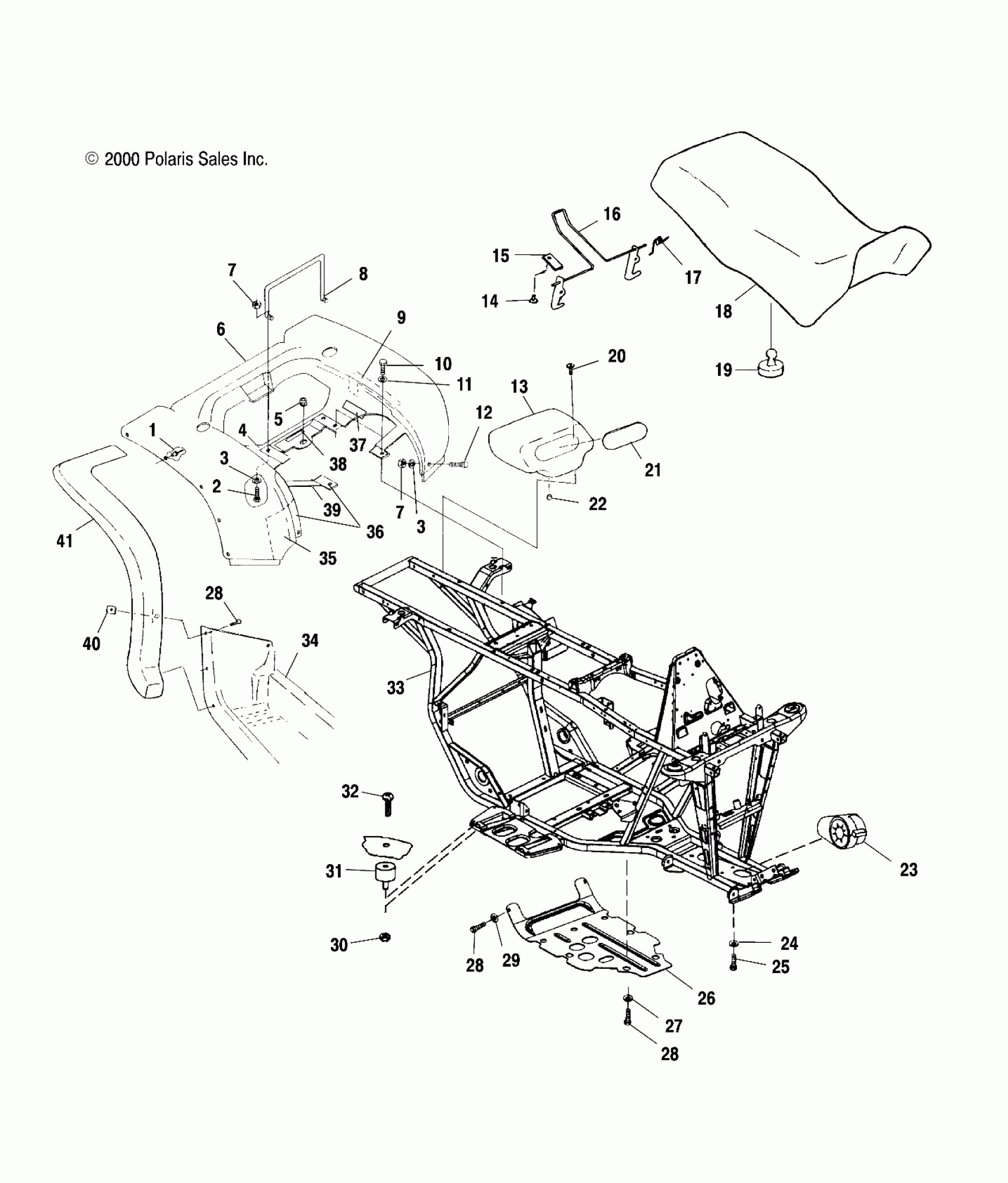

Polaris XPEDITION 425 - A00CK42AA REAR CAB and SEAT - A00CK42AA (4949304930A005) Diagram

#

Description
Price

1

RIVET(50)

7661645

Unavailable

2

SCREW(10)

7511930

$2.38

3

WASHER(10)

7555792

$4.76

3

WASHER(10)

7555792

$4.76

4

FOIL,REAR CAB,REAR

5811107

Unavailable

5

Grommet

5411042

$6.35

6

CAB,REAR,GEN 4,P.RED (A00CK42AB)

5432117-136

Unavailable

6

CAB,REAR,GEN 4,DESERT DUNE (A00CK42AA)

5432117-282

Unavailable

7

NUT(10)

7541925

$0.79

7

NUT(10)

7541925

$0.79

8

RETAINER,SEAT LATCH

5224592

Unavailable

9

FOIL,TAPE,3 X 12

5811308

$12.94

10

SCREW(10)

7512242

$2.38

11

WASHER, FLAT(10)

7555859

$1.19

12

SCREW(10) Substituted by 7511989

7512085

Unavailable

13

TOOLBOX

5431786

$53.17

14

BLIND RIVET(50)

7621403

$1.19

15

BRACKET,LEVER RETAINER

5211033

$34.99

16

LATCH,SEAT

1040387

$48.56

17

SPRING, LATCH

7041370

$9.52

18

COVER,SEAT,BLK.

2681747-070

$149.75

18

SEAT,BLK

2682441-070

$445.22

18

FOIL,SEATBASE,LG.

5811104

Unavailable

18

FOIL,SEATBASE,SM.

5811105

$9.84

19

Bumper, Rubber

5410414

$3.17

20

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.56

21

COVER, TOOLBOX

5431787

Unavailable

22

CAP,DRAIN

5410896

$5.65

23

Asm., Front Gearcase (See Front Housing Pg. C4 for Details)

----

Unavailable

24

WASHER(10)

7552603

$0.79

25

SCREW(10)

7512492

$1.19

26

GUARD-ROCK Substituted by 5433435

5811661

Unavailable

27

WASHER-SKID PLATE

7556065

$4.76

28

BOLT(10)

7512232

$1.19

28

BOLT(10)

7512232

$1.19

28

BOLT(10)

7512232

$1.19

29

WASHER(10)

7558301

$1.19

30

NUT-LOCK(10)

7542122

$1.19

31

MOUNT,RUBBER

5411548

$28.32

32

Screw

7517264

$3.97

33

FRAME,MAIN,5 SPEED,BLK

1013119-067

Unavailable

34

FOOTWELL-LH,NY,MAN,BLK

5433391-070

$196.83

34

FOOTWELL-RH,NY,MAN,BLK

5433392-070

Unavailable

35

FOIL FOAM

5811111

Unavailable

36

FOIL,FR,REAR CAB

5811106

Unavailable

37

DECAL,CARB.INFO.

7073761

Unavailable

38

DECAL,FILT.ELEMENT,4-S

7077446

Unavailable

39

FOIL-FOAM,(6X1)

5811087

Unavailable

40

NUT, SPEED(10)

7670057

$1.19

41

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

41

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable
