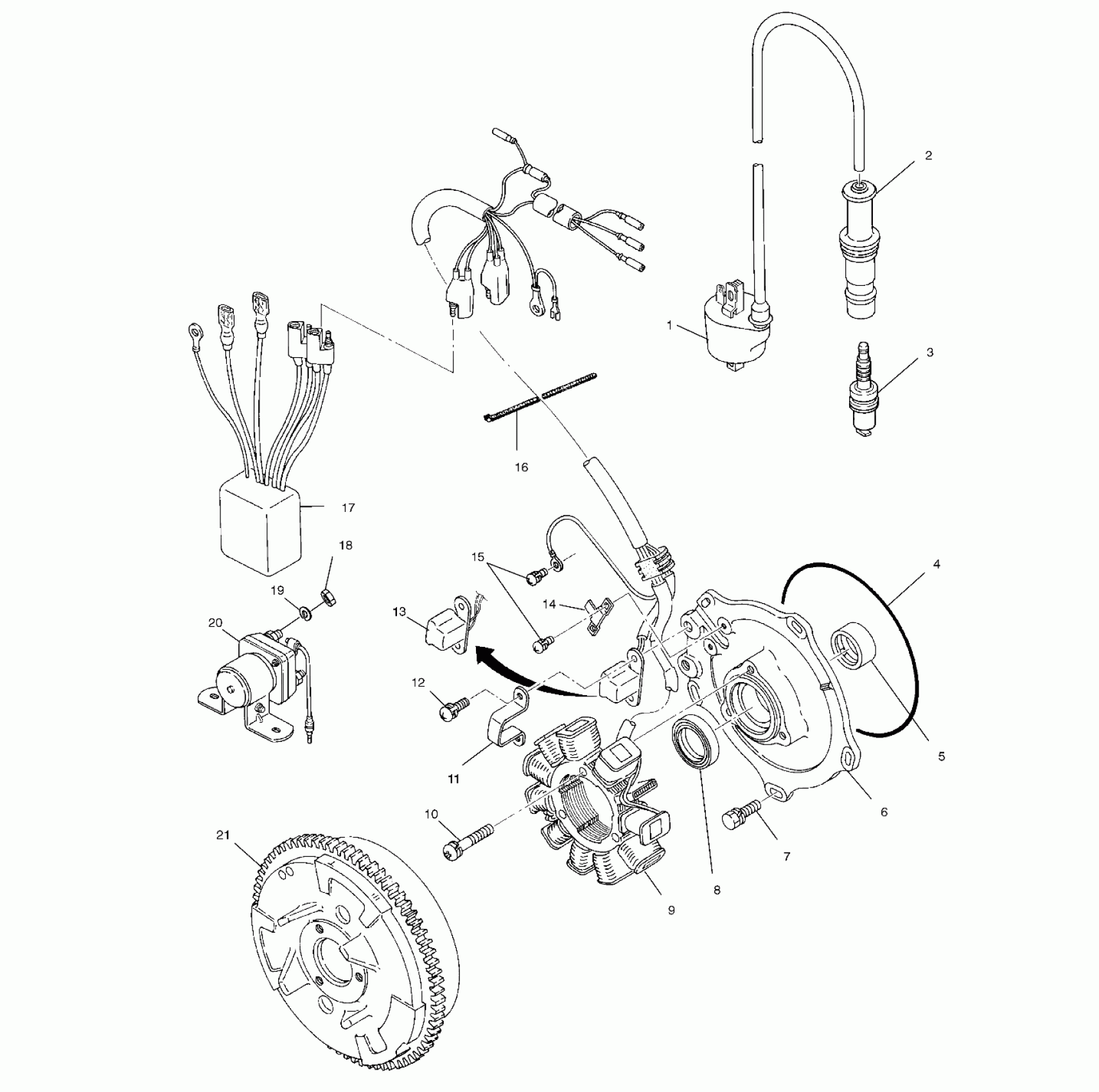

Polaris XPEDITION 425 - A00CK42AA MAGNETO - A00CK42AA (4949304930D005) Diagram

#

Description
Price

1

COIL ASM,IGNITION (Incl. 1,2)

3084690

Unavailable

1

COIL,IGNITION

3084979

Unavailable

2

CAP, SPARKPLUG *

3084980

$59.99

3

SPARKPLUG, BKR5E(4)

3070175

$3.99

4

O-RING

3084978

$35.99

5

BEARING,METAL

3086234

Unavailable

6

PLATE ASM. (Incl. 5,6,8-12,14,15)

3086232

Unavailable

6

Plate

3087140

Unavailable

7

BOLT&WASHER ASM.

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

STATOR Substituted by 3086232 (Incl. 13)

3086239

Unavailable

10

SCREW&WASHER ASM(10)

3081342

$1.49

11

Band, Pulse

3085554

Unavailable

12

SCREW&WASHER ASM.

3084976

Unavailable

13

COIL-PULSER

3087141

Unavailable

14

Clamp

3084977

Unavailable

15

SCREW&WASHER ASM(10)

3081256

$3.19

16

Band, Wire

3083447

Unavailable

17

CDI System

3086235

Unavailable

18

Nut

3083073

$2.39

19

WASHER SPRING(10)

3080077

$2.39

20

SWITCH-MAGNETIC

3086236

Unavailable

21

MAGNETO,ASM [No Longer Available] (Incl.5,6,8-15,21

3086238

Unavailable

21

Flywheel w/Ring Gear

3086231

Unavailable
