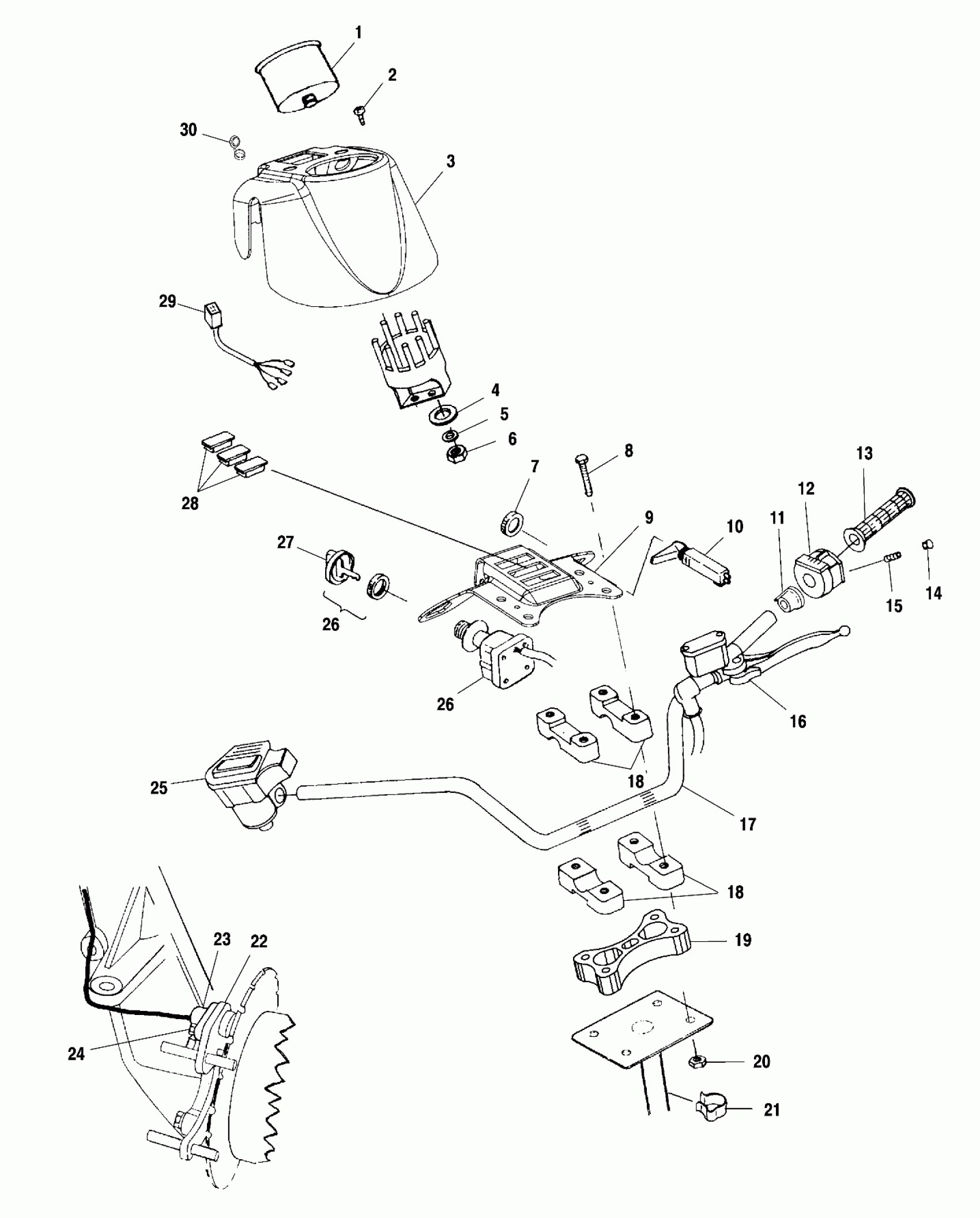

Polaris XPEDITION 425 - A00CK42AA HANDLEBAR and HEADLIGHT POD - A00CK42AA (4949304930B011) Diagram

#

Description
Price

1

SPEEDOMETER XPED 6 PULSE Substituted by 3280357

3280298

Unavailable

2

SCREW,(10)

7512024

$4.79

3

PANEL-INST BLACK

5433183-070

Unavailable

4

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

5

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

6

NUT, BRASS(10)

7541933

$4.99

7

Nut

7080229

$19.99

8

Screw

7517224

Unavailable

9

BRKT,ACCESS.INST.PANEL,BLK

5241698-067

$6.63

10

CABLE,CHOKE,W/ADJUSTER

7080726

$99.99

11

SPACER,SWITCH,LH

5432926

$2.63

12

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$203.99

13

GRIP, HANDLEBAR

5431030

$24.27

14

PLUG,HOLE(10)

5432952

$5.59

15

SCREW,SET

7517625

$4.79

16

Asm., Master Cylinder (See Controls - Master Cylinder/Brake Line Pg. B9 for details)

-------

Unavailable

17

HANDLEBAR,TUBE,BLK

5224715-067

Unavailable

18

BLOCK,H'BAR,(300)

5630629

$11.59

18

BLOCK,H'BAR,(300)

5630629

$11.59

19

BLOCK,RISER,300,GEN 4

5630633

$19.03

20

NUT-LOCK(10)

7542122

$1.49

21

CLIP,CABLE RETAIN,(10)

7080631

$6.29

22

SENSOR,HALLEFFECT (Incl. 23)(If built after 8/09/99)

4010298

$111.99

22

SENSOR,HALL EFFECT Substituted by 2201625 (If built before 8/09/99)

4040081

Unavailable

23

CAP-HALL SENSOR (Used with 4010298 only)

5132382

$23.99

24

Screw

7517658

$5.59

25

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B8, Ref. 5)

-------

Unavailable

26

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

26

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

26

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

26

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

26

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

26

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

26

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

26

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

27

KEY SWITCH KEY COVER

5433534

$12.35

28

INDIC"HOT TEMPERATURE"

4040053

$31.99

28

INDIC"NEUT./REV."

4040054

$31.99

28

DOOR-COMPARTMENT [No Longer Available]

5430467

Unavailable

29

HARNESS-HEADLIGHT POD

2460728

$13.19

30

COVER,SCREW,HINGED,BLK

5432420

Unavailable
