Description

Price

1

CAP, GAS, (BLACK)

5430725

$24.27

2

GASKET-GAS CAP

5810144

$5.59

3

Foam, Seal

5811052

Unavailable

4

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

Bolt

7517451

$5.59

7

LOCK WASHER(10)

7552801

$1.59

8

WASHER(10)

7558301

$1.49

9

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

9

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

10

FOAM,INTAKE,SPLASH

5811796

Unavailable

11

Spacer

5332457

Unavailable

12

NUTSERT,HEX(10)

7547069

$3.99

13

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

14

SCREW(10)

7517505

$1.59

15

KNOB,FUEL VALVE

5432559

$10.39

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

17

NUT,FUELVALVE,ATV

5432733

Unavailable

18

VALVE,3-WAY

7052161

$39.99

19

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

20

FITTING,FUEL OUT,90DEG,RES,Z

7052148

Unavailable

21

ELBOW, MAIN

7052147

Unavailable

22

TANK ASM,FUEL Substituted by 2520174 (Incl. 5,20,21)

2520143

Unavailable

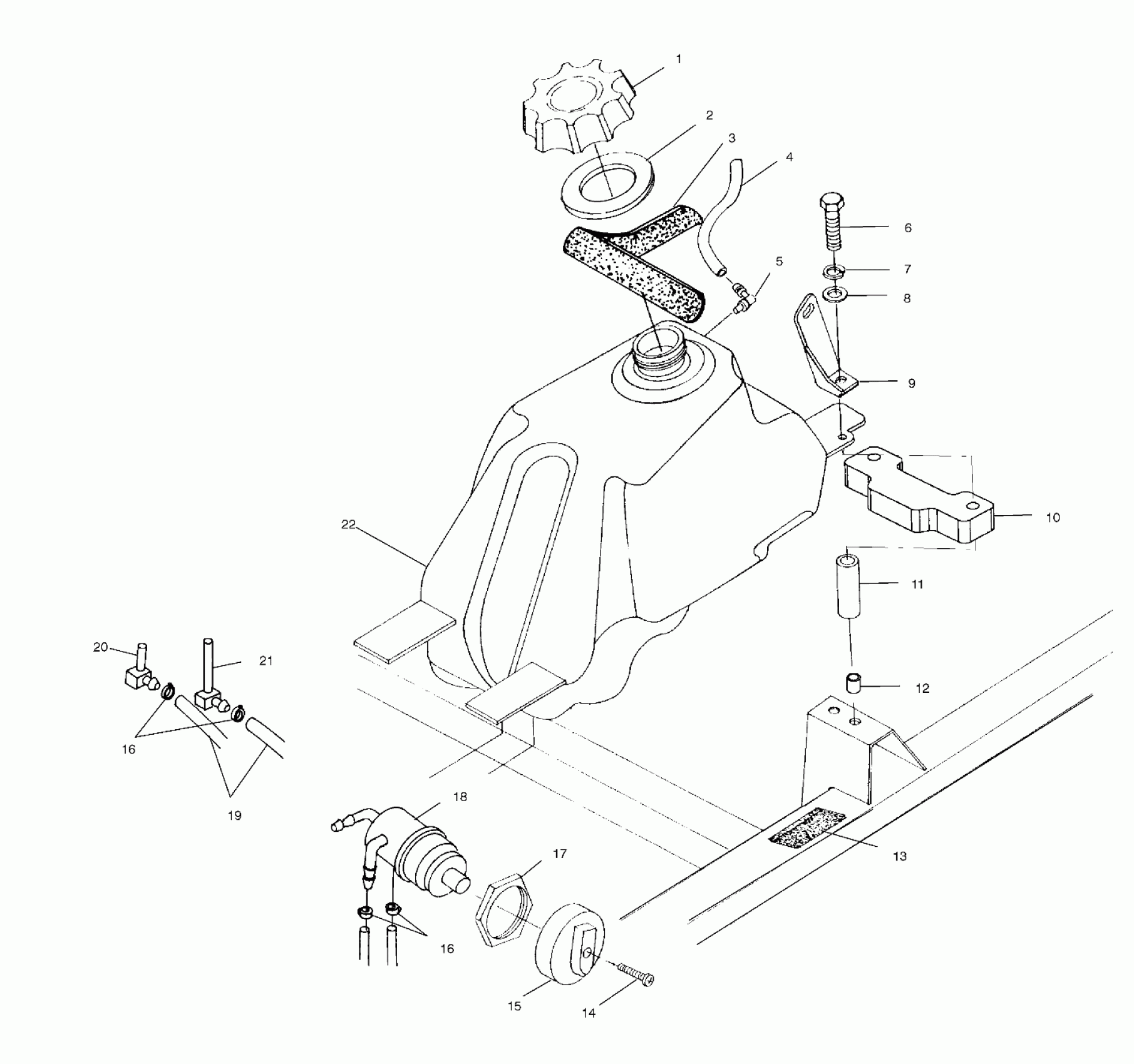

Polaris XPEDITION 425 - A00CK42AA FUEL TANK - A00CK42AA (4949304930B001) Diagram

CAP, GAS, (BLACK)

GASKET-GAS CAP

Foam, Seal

FUEL LINE,1/8 ID,600 CM.

Vent, Tank

Bolt

LOCK WASHER(10)

WASHER(10)

BRKT,LH.R.FUELCOVER,BLK.

BRKT,RH.R.FUELCOVER,BLK.

FOAM,INTAKE,SPLASH

Spacer

NUTSERT,HEX(10)

PAD,FUELTANK BRKT. Substituted by 8360026

SCREW(10)

KNOB,FUEL VALVE

HOSE CLAMP, RED

HOSE CLAMP, RED

NUT,FUELVALVE,ATV

VALVE,3-WAY

FUEL LINE,1/4 ID(600 CM.)

FITTING,FUEL OUT,90DEG,RES,Z

ELBOW, MAIN

TANK ASM,FUEL Substituted by 2520174 (Incl. 5,20,21)
