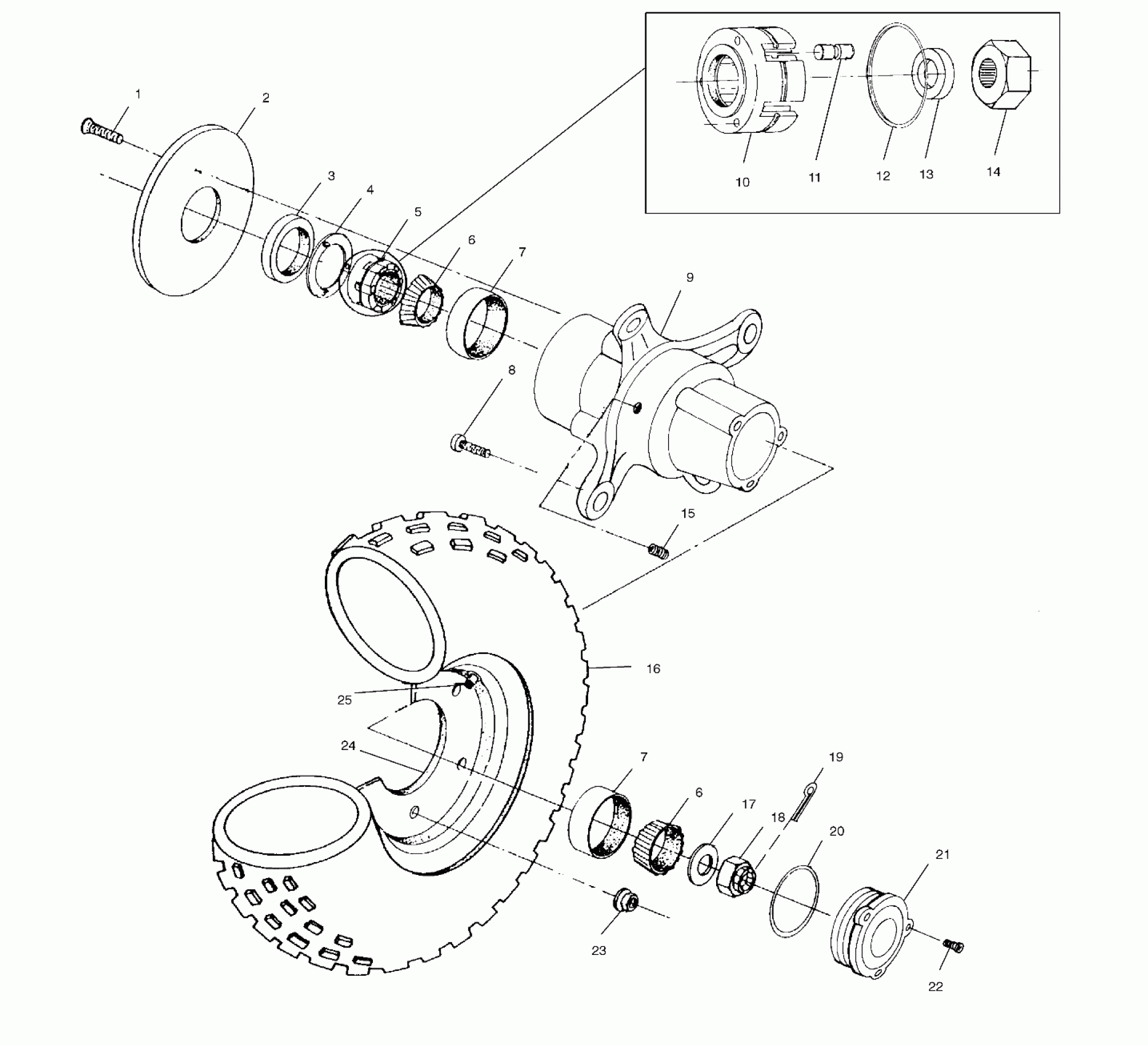

Polaris XPEDITION 425 - A00CK42AA FRONT WHEEL - A00CK42AA (4949304930B006) Diagram

#

Description
Price

1

BOLT(10)

7512325

$2.38

2

DISC,BRAKE

5242935

$89.03

3

SEAL, FR. HUB

3610019

$36.41

4

Plate, Armature

5211148

$28.32

5

CLUTCH,FR HUB E/M

1520281

$374.99

6

BRG,TAPER.ROLL.CONE

3554506

$31.75

6

BRG,TAPER.ROLL.CONE

3554506

$31.75

7

BRG,TAPER,ROLL CUP

3554507

$31.75

7

BRG,TAPER,ROLL CUP

3554507

$31.75

8

STUD(10)

7515523

$3.17

9

HUB ASM,SHRT(3-LOBE)W/BRG RACE (Incl.3,7,8)

1520243

Unavailable

10

Cage, Roll

3250028

Unavailable

11

ROLLS

3250010

$24.74

12

SPRING,GARTER

3250032

$17.46

13

Spacer

1321814

$24.99

14

Cam

3250030

$208.16

15

PLUG,PIPE

7052045

$13.75

16

TIRE,FR(25X8-12) (25x8-12)

5410568

$99.74

17

WASHER

7556004

$7.14

18

NUT, SLOTTED(10)

7542810

$3.17

19

COTTER PIN(10)

7661401

$0.79

20

O RING

5410470

$2.41

21

CAP,HUB,3-LOBE,AWD

5432611

$14.56

22

SCREW(10)

7512027

$1.19

23

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

24

RIM,FRONT,BLK (A00CK42AA)

1520269-067

$90.87

24

RIM,FRONT,(SILVER) (A00CK42AB)

1520269-117

$90.87

25

VALVE-RIM

1525017

$6.46
