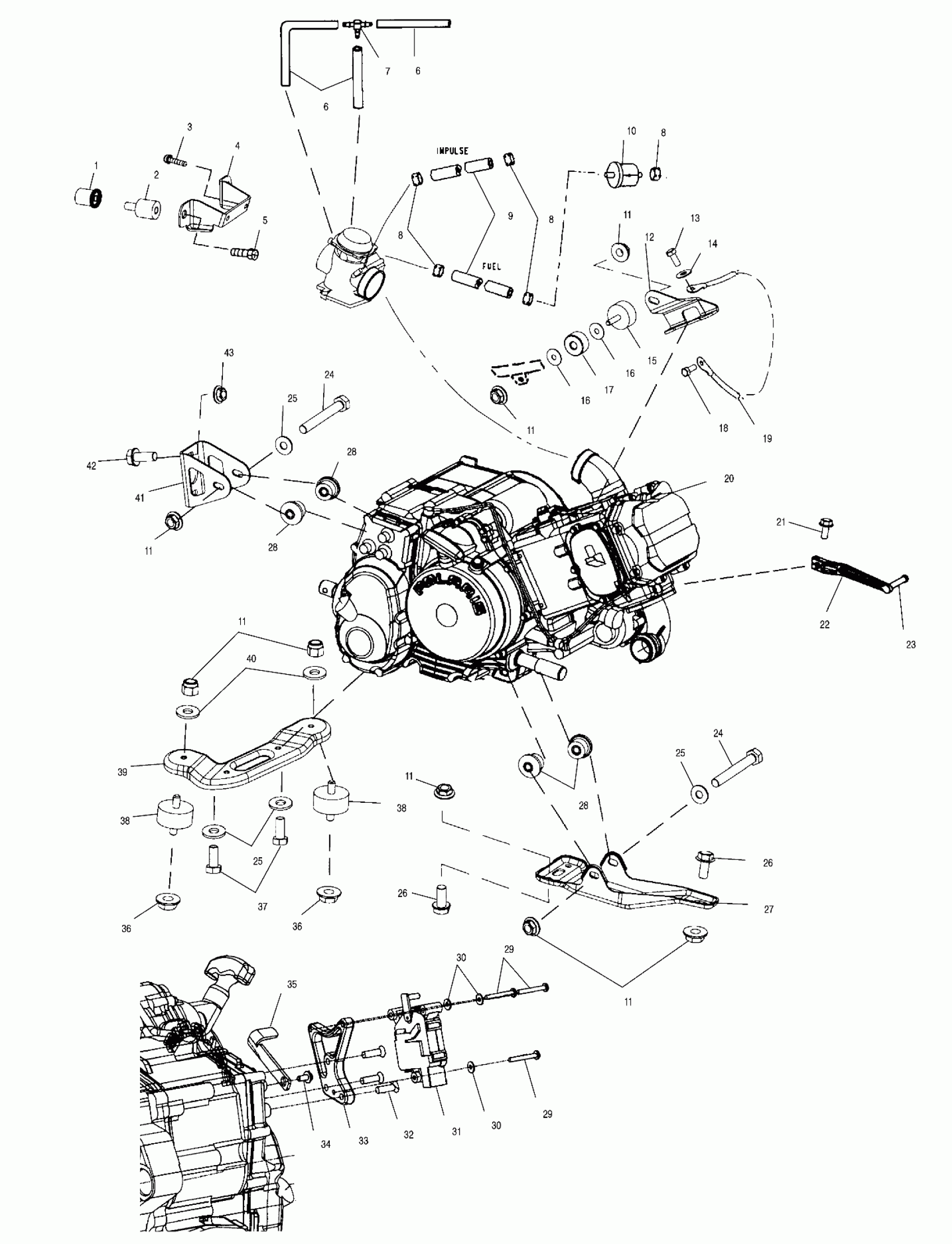

Polaris XPEDITION 425 - A00CK42AA ENGINE MOUNTING - A00CK42AA (4949304930A013) Diagram

#

Description
Price

1

NUTSERT,HEX(10)

7547069

$3.99

2

MOUNT,CARB,RUBBER Substituted by 3021186

3110079

$11.99

3

SCREW & WASHER(10)

3084205

$3.99

4

BRKT, CARB.MT.

5240609-067

Unavailable

5

BOLT(10)

7515106

$2.39

6

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

6

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

7

FITTING, TEE

7052075

$9.59

8

HOSE CLAMP, RED

7080003

$1.49

8

HOSE CLAMP, RED

7080003

$1.49

8

HOSE CLAMP, RED

7080003

$1.49

9

DESC NOT_AVAILABLE

8450040-60

Unavailable

10

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

11

NUT

7547108

$4.79

11

NUT

7547108

$4.79

11

NUT

7547108

$4.79

11

NUT

7547108

$4.79

11

NUT

7547108

$4.79

11

NUT

7547108

$4.79

12

MOUNT,ENG.TOP MAN,BLK.

5242964-067

$4.95

13

BOLT(10)

7512315

$4.79

14

LOCK WASHER(10)

7552901

$1.49

15

MOUNT-RUBBER,TOP,60 DURO

3021045

Unavailable

16

WASHER(10)

7555823

$3.99

16

WASHER(10)

7555823

$3.99

17

SPACER-MOTOR MNT TOP

5132007

Unavailable

18

SCREW,(10)

7517386

$1.49

19

CABLE,GND-ENGINE

4010132

Unavailable

20

ENG.EH42PLE-03 The Short Block assembly contains a crankcase asm., cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warranty consideration.

3085824

Unavailable

21

SCREW(10)

7512225

$3.99

22

LEVER-SHIFT,5-SPEED,BLK

5630960-067

$80.94

23

PAD,SHIFT PEDAL

5411364

$23.99

24

SCREW CAP(10)

7515406

$7.19

24

SCREW CAP(10)

7515406

$7.19

25

WASHER(10)

7552603

$1.49

25

WASHER(10)

7552603

$1.49

25

WASHER(10)

7552603

$1.49

26

SCREW ,(10)

7517289

$4.79

26

SCREW ,(10)

7517289

$4.79

27

MOUNT-ENGINE LOWER,MANUAL,BLK

5242905-067

$11.59

28

ENGINE-MOUNT RUBBER MAN

5411575

$8.23

28

ENGINE-MOUNT RUBBER MAN

5411575

$8.23

28

ENGINE-MOUNT RUBBER MAN

5411575

$8.23

29

SCREW(10)

7510504

$6.76

29

SCREW(10)

7510504

$6.76

30

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

30

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

31

ACTUATOR-REVERSE Substituted by 4010265

4010241

Unavailable

32

SCR-1/4-20X7/8,HX/SOC/FL/HD-Y

7517652

$4.79

33

MOUNT,ACTUATOR,REV,MACH

5132141

$24.79

34

SCREW

7517653

Unavailable

35

LEVER-REVERSE,BLK

5243586-067

Unavailable

36

NUT LOCK(10)

7542403

$3.99

36

NUT LOCK(10)

7542403

$3.99

37

BOLT(10) Substituted by 7512492

7515458

Unavailable

38

MOUNT,RUBBER,TOP

3110044

Unavailable

38

MOUNT,RUBBER,TOP

3110044

Unavailable

39

MOUNT,5 SPEED LWR,REAR,BLK.

5242984-067

$15.67

40

WASHER(10)

7555806

$1.49

41

MNT-ENGINE TOP REAR MAN,BLK

5242965-067

$4.16

42

SCREW(10)

7515398

$2.39

43

NUT LOCK(10)

7542321

$1.49
