CLUTCH - A00CK42AA (4949304930D010)

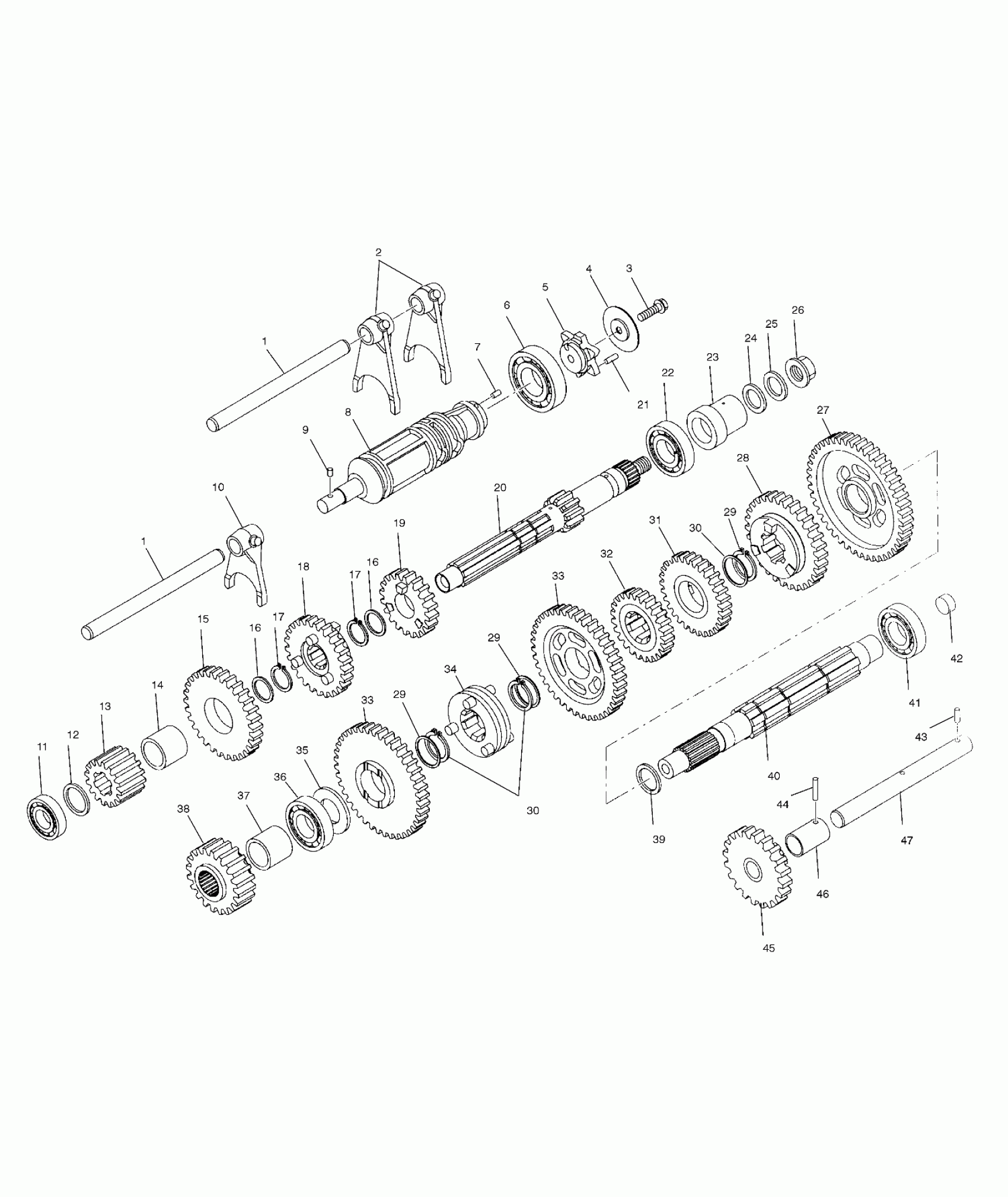

Polaris XPEDITION 425 - A00CK42AA CLUTCH - A00CK42AA (4949304930D010) Diagram
#
1
SHAFT-SHIFT FORK
3086375
$11.99
1
SHAFT-SHIFT FORK
3086375
$11.99
2
FORK,SHIFT,DRIVEN
3086377
Unavailable
3
BOLT,LOCK
3086370
$3.19
4
Washer
3086369
Unavailable
5
CAM,SHIFT
3086368
Unavailable
6
BEARING-BALL
3086373
$22.39
7
Pin
3086371
Unavailable
8
SHIFT DRUM,ASM. (Incl. 3-8,21)
3086366
$247.19
8
DRUM,SHIFT
3086367
$231.19
9
PIN,DOWEL
3086379
$1.98
10
FORK,SHIFT DRIVE
3086376
$78.39
11
BEARING-BALL
3086348
$22.39
12
Washer
3086350
$1.49
13
GEAR,2ND DRIVE
3086341
$55.19
14
Collar
3086345
$6.23
15
GEAR,5TH DRIVE
3086344
Unavailable
16
Washer
3086346
$5.43
16
Washer
3086346
$5.43
17
RING,SNAP
3086349
$1.83
17
RING,SNAP
3086349
$1.83
18
GEAR,4TH DRIVE
3086343
$152.79
19
GEAR,3RD DRIVE
3086342
$83.99
20
SHAFT,MAIN (Incl. 11-20,22)
3086339
$331.99
20
SHAFT-MAIN
3086340
$194.39
21
Pin
3086372
Unavailable
22
BEARING-BALL
3086347
$28.79
23
BUSH,FLANGE
3086382
$19.19
24
Washer
3086313
$6.23
25
WASHER-LOCK
3086286
Unavailable
26
NUT,LOCK
3086285
Unavailable
27
GEAR,COMPL
3086358
$175.19
28
GEAR,3RD DRIVEN
3086354
$124.79
29
RING,SNAP
3086363
$2.23
29
RING,SNAP
3086363
$2.23
29
RING,SNAP
3086363
$2.23
30
Washer
3086359
$3.99
30
Washer
3086359
$3.99
31
GEAR,4TH DRIVEN
3086355
$95.19
32
GEAR,5TH DRIVEN
3086356
$104.79
33
GEAR,2ND DRIVEN
3086353
$171.19
33
GEAR,2ND DRIVEN
3086353
$171.19
34
Clutch
3086357
$150.39
35
Washer
3086364
$9.59
36
BEARING-BALL
3086360
$29.59
37
Spacer
3086383
$3.83
38
SPROCKET-DRIVE
3086374
$67.19
39
WASHER
3086361
$3.03
40
SHAFT,COUNTER ASM. (Incl. 27-36,39-42)
3086351
$624.99
40
SHAFT-COUNTER
3086352
$179.99
41
BEARING-BALL
3086362
$27.99
42
Plug
3086365
$9.11
43
Pin
3086337
$6.23
44
Pin
3086338
Unavailable
45
GEAR,COMPL
3086335
$150.39
46
Collar
3086336
$24.39
47
REVERSE SHAFT,ASM. (Incl. 43-47)
3086333
$181.59
47
SHAFT-REVERSE
3086334
$25.98
