CLUTCH - A00CK42AA (4949304930D008)

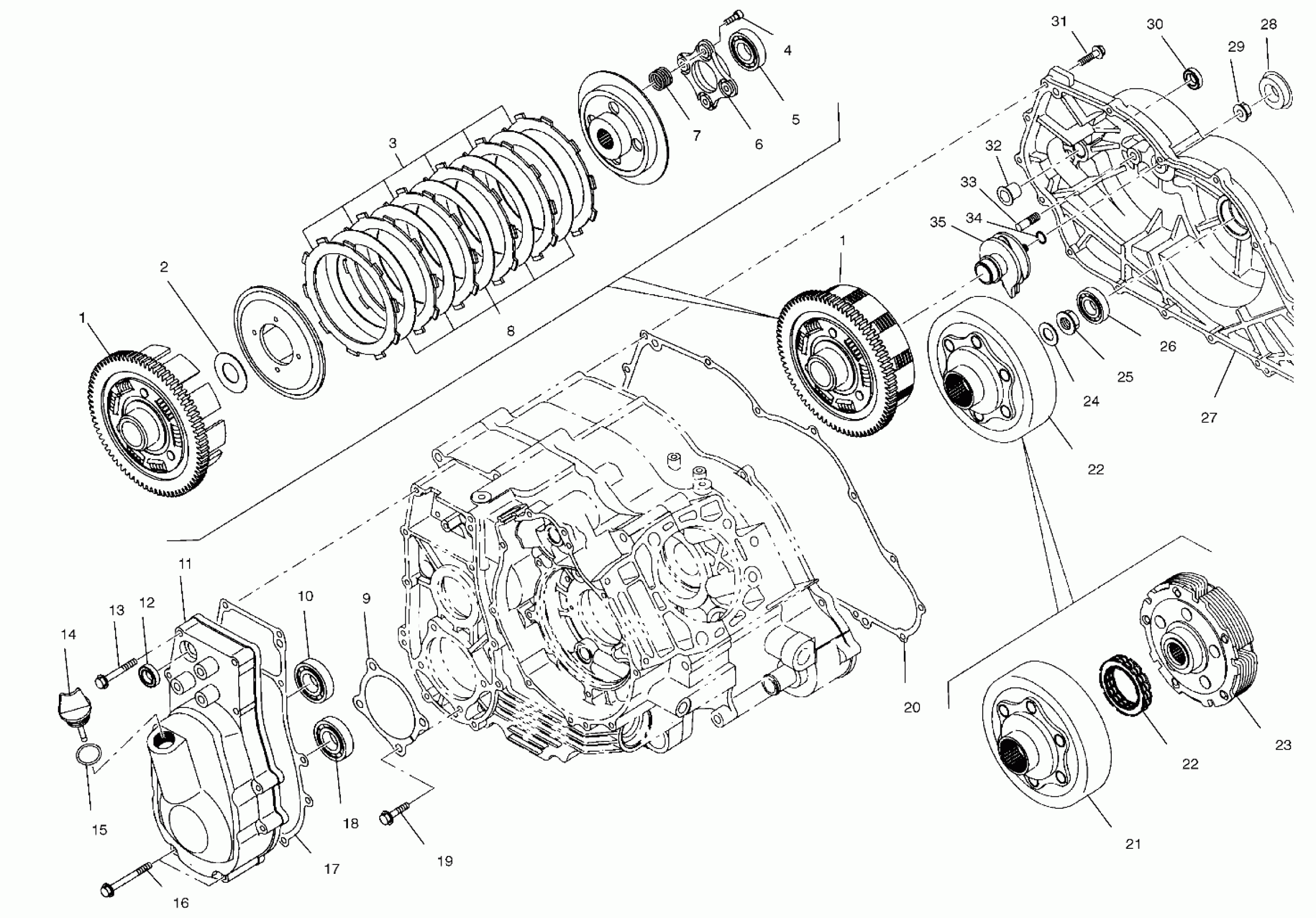

Polaris XPEDITION 425 - A00CK42AA CLUTCH - A00CK42AA (4949304930D008) Diagram
#
1
CLUTCH AY,(MULTIPLE) (Incl. 1-8)
3086274
Unavailable
1
CLUTCH,OUTER COMPLETE
3086275
Unavailable
1
CLUTCH AY,(MULTIPLE) (Incl. 1-8)
3086274
Unavailable
1
CLUTCH,OUTER COMPLETE
3086275
Unavailable
2
WASHER,THRUST
3086278
$7.99
3
CLUTCH,DISK
3086276
Unavailable
4
BOLT,SOCKET
3086281
Unavailable
5
BEARING,BALL
3086282
Unavailable
6
PLATE,LIFTER
3086280
Unavailable
7
Spring
3086279
$11.59
8
CLUTCH,PLATE
3086277
Unavailable
9
SHIM (DRIVE PINION).15MM (.15)
3086263
$3.17
9
SHIM (DRIVE PINION).2MM (.2)
3086264
$3.19
9
SHIM (DRIVE PINION).25MM (.25)
3086265
$3.17
9
SHIM (DRIVE PINION).3MM (.3)
3086266
Unavailable
9
SHIM (DRIVE PINION).5MM (.5)
3086267
$3.17
9
SHIM (DRIVE PINION).175MM (.175)
3086268
$3.17
9
SHIM (DRIVE PINION).225MM (.225)
3086269
$3.02
9
SHIM (DRIVE PINION).275MM (.275)
3086270
Unavailable
10
BEARING,BALL
3086261
$19.19
11
REDUCTION COVER ASM (Incl. 10-12,14,15,18)
3086256
$206.39
11
DESC NOT_AVAILABLE
3086257
Unavailable
12
SEAL,OIL
3086258
Unavailable
13
BOLT,FLANGE
3086288
$7.03
14
PLUG
3086259
Unavailable
15
O-Ring
3086260
$2.47
16
Bolt, Flange
3084179
Unavailable
17
GASKET
3086283
Unavailable
18
BEARING,BALL
3086262
$21.59
19
BOLT,FLANGE
3086287
$1.49
20
GASKET-CLUTCH COVER
3086284
Unavailable
21
DRUM,OUTER
3086272
$215.99
22
CLUTCH,AY(CENTRIFU) Substituted by 3086504 (Incl. 21-23)
3086271
Unavailable
22
CLUTCH,AY(CENTRIFU) Substituted by 3086504 (Incl. 21-23)
3086271
Unavailable
23
DESC NOT_AVAILABLE
3086273
Unavailable
24
WASHER-LOCK
3086381
$7.99
25
NUT,LOCK
3086378
$35.99
26
BEARING-BALL
3086254
$20.79
27
CLUTCH COVER ASM. (Incl. 26,27,29,30,32-35)
3086246
Unavailable
27
DESC NOT_AVAILABLE
3086247
Unavailable
28
BLIND PLUG
3086255
Unavailable
29
NUT-FLANGE
3086253
$1.49
30
SEAL-OIL
3086249
Unavailable
31
BOLT, FLANGE
3084874
Unavailable
32
FLANGE,BUSH
3086248
Unavailable
33
PIN,(CLUTCH COVER)
3086251
$18.23
34
O-Ring
3086252
$3.51
35
LEVER,RELEASE
3086250
Unavailable
