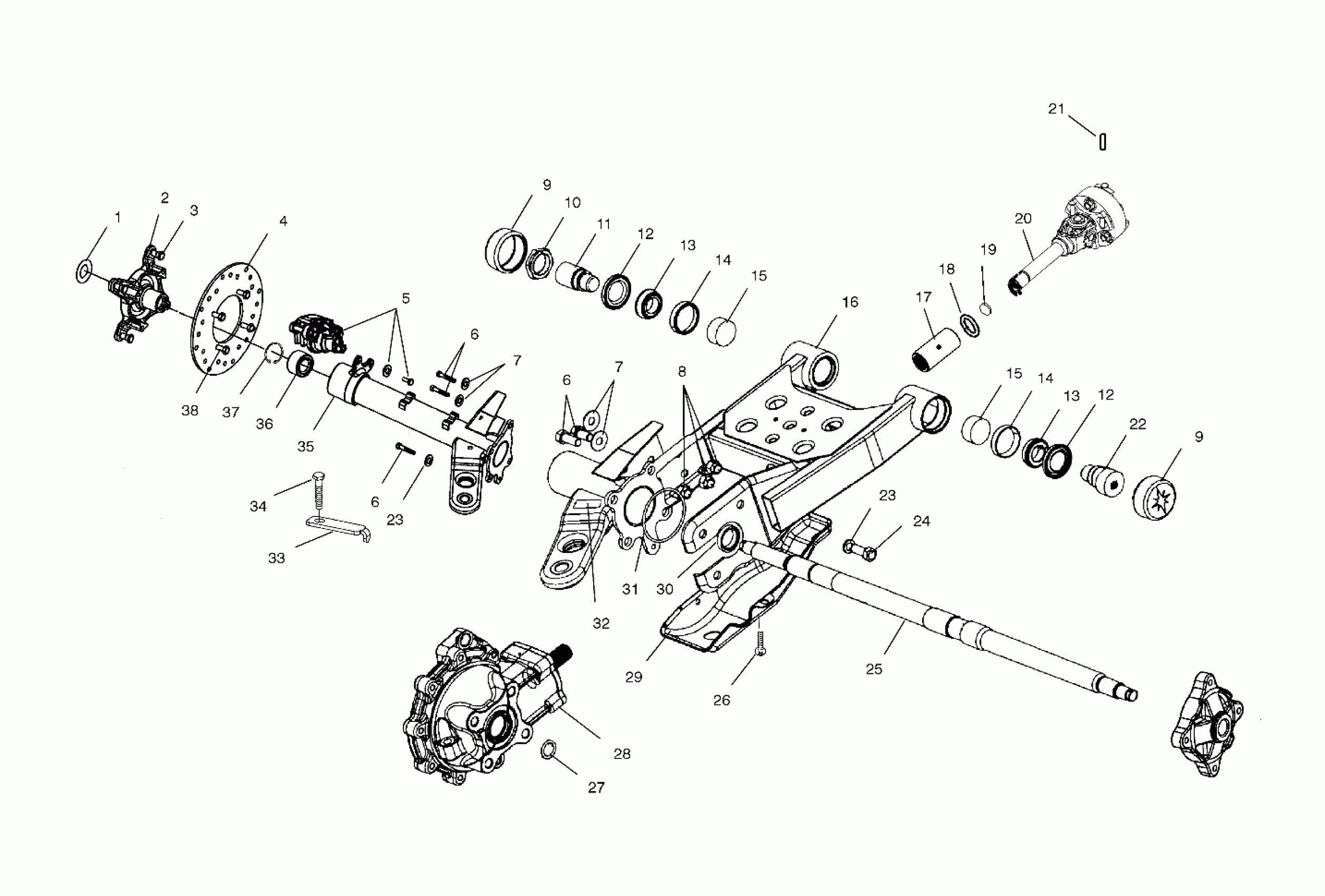

Polaris XPEDITION 325 - A02CK32AA SWING ARM/REAR GEARCASE MOUNTING - A02CK32AA (4970287028C04) Diagram

#

Description
Price

1

O-Ring

5412022

Unavailable

2

Hub, Wheel, 4WD

5131935

Unavailable

3

Stud

7515523

$3.19

4

Disc, Brake

5244882

$94.99

5

Washer, Spring

7552603

$1.49

5

Asm., Brake Caliper

1910425

Unavailable

5

Screw

7515481

$2.63

6

Bolt

7517604

Unavailable

6

Bolt

7517604

Unavailable

6

Bolt

7517604

Unavailable

7

WASHER

7555721

$1.49

7

WASHER

7555721

$1.49

8

Nut, Nylon

7547065

$3.99

9

Cap, Pivot, Swing Arm

5411532

Unavailable

9

Cap, Pivot, Swing Arm

5411532

Unavailable

10

Nut, Jam

5131863

Unavailable

11

Pivot, Threaded

5131864

Unavailable

12

Seal, Pivot, Swing Arm

3610072

Unavailable

12

Seal, Pivot, Swing Arm

3610072

Unavailable

13

Bearing, Tapered Roller Cone

3554506

$31.99

13

Bearing, Tapered Roller Cone

3554506

$31.99

14

Bearing, Tapered Roller Cup

3554507

$31.99

14

Bearing, Tapered Roller Cup

3554507

$31.99

15

Seal, Pivot, Swing Arm

5411602

Unavailable

15

Seal, Pivot, Swing Arm

5411602

Unavailable

16

Asm., Swing Arm [Incl. 14,15]

1541577

$243.16

17

Fitting, Lubrication

7080433

$1.49

17

Coupling, Prop Shaft, Greased

5132201

$59.99

18

O-RING

5411092

$1.60

19

Pad, Shaft, Rear

5812047

Unavailable

20

Kit, Cross and Bearing

3260104

$43.99

20

Asm., Prop Shaft, Rear

1380154

$399.99

20

Flange and Sleeve

1013628

$123.99

20

Isolator

5412112

Unavailable

20

Yoke, Flange

1013629

$97.59

20

Shaft, Prop

1350041

$71.99

21

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

22

Pivot, Swing Arm

5132683

Unavailable

23

Washer, Split Lock

7553201

$3.99

23

Washer, Split Lock

7553201

$3.99

24

Bolt

7517585

$4.79

25

Axle, Rear

5132699

Unavailable

26

Screw

7517612

Unavailable

27

O-Ring

5411531

Unavailable

28

Asm., Gearcase, Rear [See Rear Housing Pg. C3 for Details]

-------

Unavailable

29

Asm., Skid Plate, Rear

1012881

$58.39

29

Plate, Skid, Rear Housing

5242851-067

$19.83

29

Pad, Rubber

5811716

Unavailable

30

Collar, Rear Axle

5132698

Unavailable

31

O-Ring

5411707

Unavailable

32

Decal, Hitch

7072533

Unavailable

33

Clamp, Brake Line, Rear

5245050

$1.75

34

Screw

7512017

$4.79

35

Tube, Axle, LH

1013264-067

Unavailable

36

Bearing, Hubstrut

3514342

Unavailable

37

RING, RETAINING

7710507

$2.39

38

BOLT

7512325

$2.39
