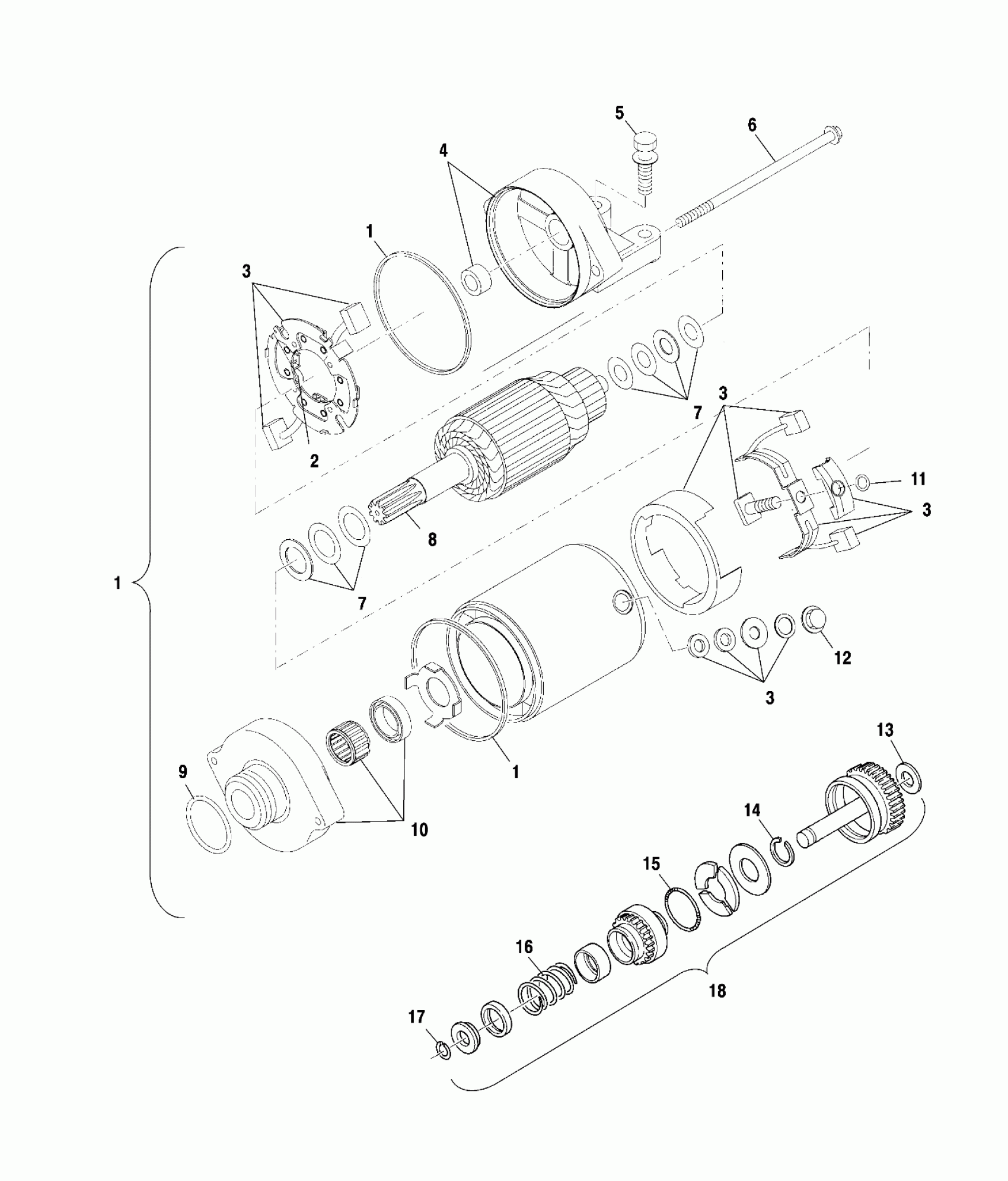

Polaris XPEDITION 325 - A02CK32AA STARTING MOTOR - A02CK32AA (4970287028D02) Diagram

#

Description
Price

1

RING, RUBBER

3084405

Unavailable

1

Motor, Starting [Incl. 1-4,6-12]

3086240

Unavailable

1

RING, RUBBER

3084405

Unavailable

1

Motor, Starting [Incl. 1-4,6-12]

3086240

Unavailable

1

RING, RUBBER

3084405

Unavailable

1

Motor, Starting [Incl. 1-4,6-12]

3086240

Unavailable

2

Spring, Brush

3240111

Unavailable

3

Carbon Brush Set [Incl. 2,11,12]

3086242

$67.99

3

Carbon Brush Set [Incl. 2,11,12]

3086242

$67.99

3

Carbon Brush Set [Incl. 2,11,12]

3086242

$67.99

3

Carbon Brush Set [Incl. 2,11,12]

3086242

$67.99

4

Asm., Rear Bracket

3086245

Unavailable

5

Bolt and Washer

3083730

$4.79

6

Asm., Set Bolt

3086241

$3.83

7

Washer Set

3084982

Unavailable

7

Washer Set

3084982

Unavailable

8

Asm., Armature

3086244

$143.99

9

O-Ring

3240114

$5.59

10

Asm., Front Bracket [Incl. 9]

3086243

$102.38

11

O-RING

3084408

Unavailable

12

NUT, FLANGE

3083649

$3.99

13

Washer, Gear Shaft

3083737

Unavailable

14

CLIP

3084412

$9.59

15

SPRING, WEIGHT

3084411

$15.67

16

SPRING, RETURN

3084410

$2.47

17

CLIP

3084409

$7.19

18

Asm., Gear Shaft [Incl. 13-17]

3087030

Unavailable
