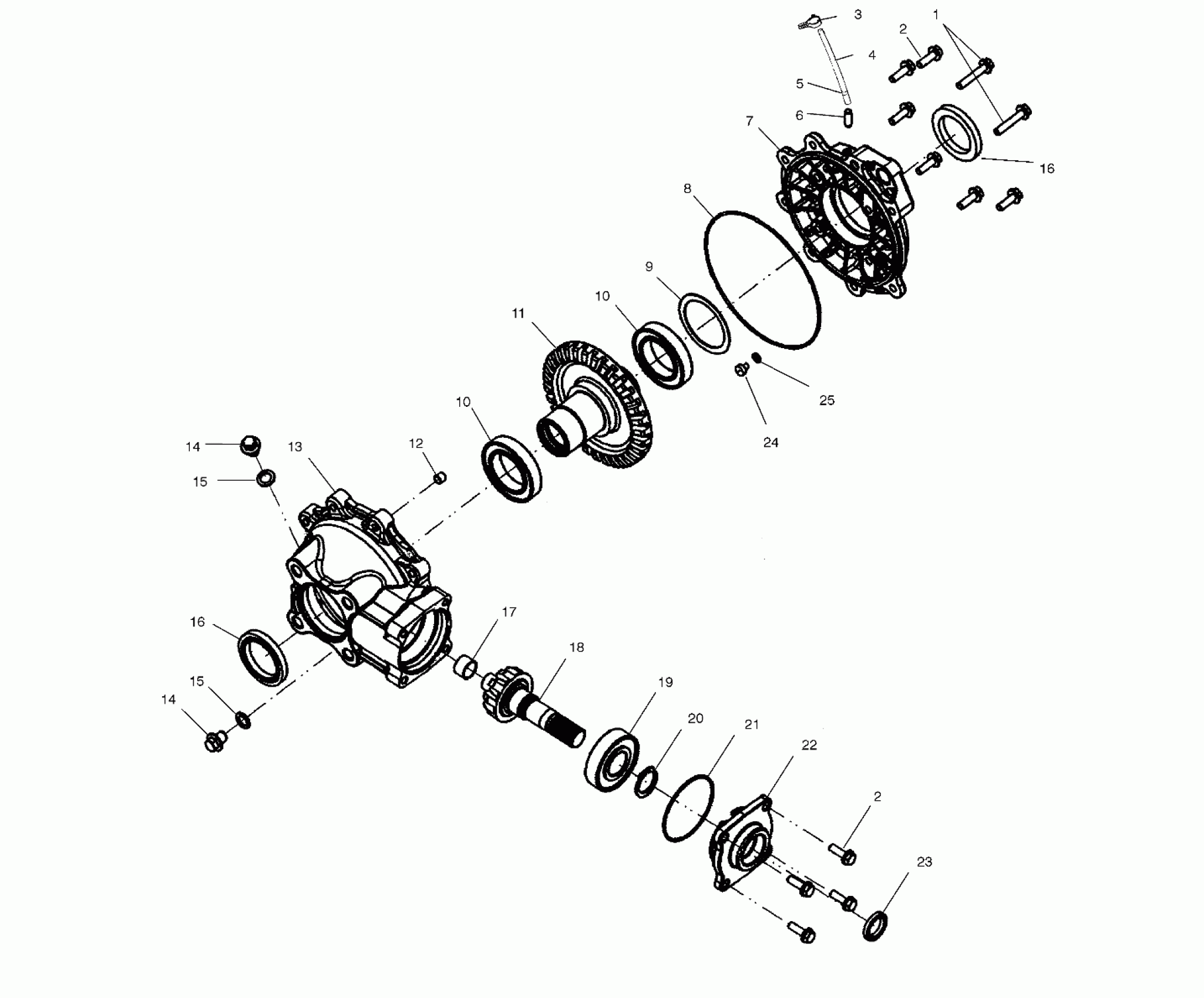

Polaris XPEDITION 325 - A02CK32AA REAR HOUSING - A02CK32AA (4970287028C03) Diagram

#

Description
Price

-

Asm., Gearcase, Rear [Incl. 1,2,7-25]

1341342

Unavailable

1

Screw

3233585

Unavailable

2

Screw

3233252

$5.27

2

Screw

3233252

$5.27

3

Clip

7670102

$2.39

4

Line, Vent

8450003-1525

Unavailable

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

6

TUBE, VENT

3233524

$7.19

7

Cover, Output, Rear Housing

3233753

$229.37

8

O-Ring

3233587

$32.37

9

SHIM

3233581

Unavailable

10

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

10

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

11

Gear, Bevel, 31T, Rear

3233740

Unavailable

12

Pipe, Knock

3233529

$7.99

13

Gearcase, Rear Housing

3233739

Unavailable

14

Plug

3233711

Unavailable

14

Plug

3233711

Unavailable

15

Washer

3233324

$8.99

15

Washer

3233324

$8.99

16

Seal

3233256

Unavailable

16

Seal

3233256

Unavailable

17

Bushing

3233577

$19.99

18

Shaft, Pinion, 10T, Bevel, Rear

3233768

Unavailable

19

BEARING, BALL

3233714

$31.99

20

RING, RETAINING

3233699

$7.19

21

O-Ring

3233588

$10.55

22

Gearcase, Cover, Input

3233573

Unavailable

23

Seal, Oil

3233319

$27.99

24

THRUST BUTTON

3233582

$7.91

25

SHIM

3233583

Unavailable
