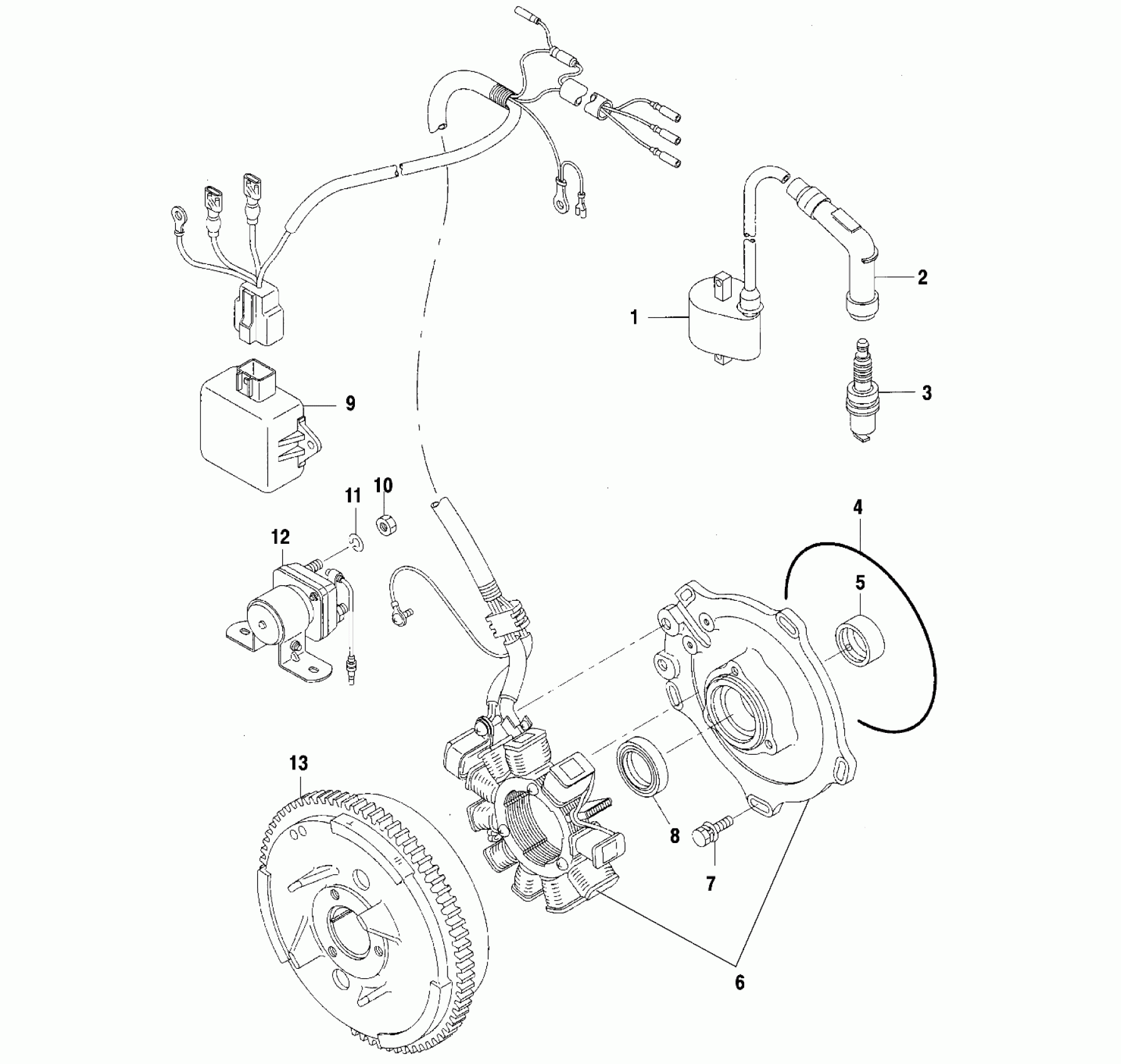

Polaris XPEDITION 325 - A02CK32AA MAGNETO - A02CK32AA (4970287028D01) Diagram

#

Description
Price

1

Coil, Ignition

3086484

Unavailable

2

Cap, Plug, Spark

3087037

$40.46

3

Plug, Spark

3084997

$3.97

4

O-Ring, Black

3084978

$36.41

5

Dry, Bearing

3086460

$27.78

6

Asm., Plate [Incl. 5,8]

3086904

Unavailable

7

Bolt and Washer

3081657

$4.76

8

SEAL, OIL

3084973

$28.32

9

CDI System

3086905

Unavailable

10

Nut

3083073

$2.38

11

Washer, Spring

3080077

$2.38

12

Switch, Magnetic

3086236

$52.60

13

Flywheel w/Ring Gear

3086457

Unavailable
