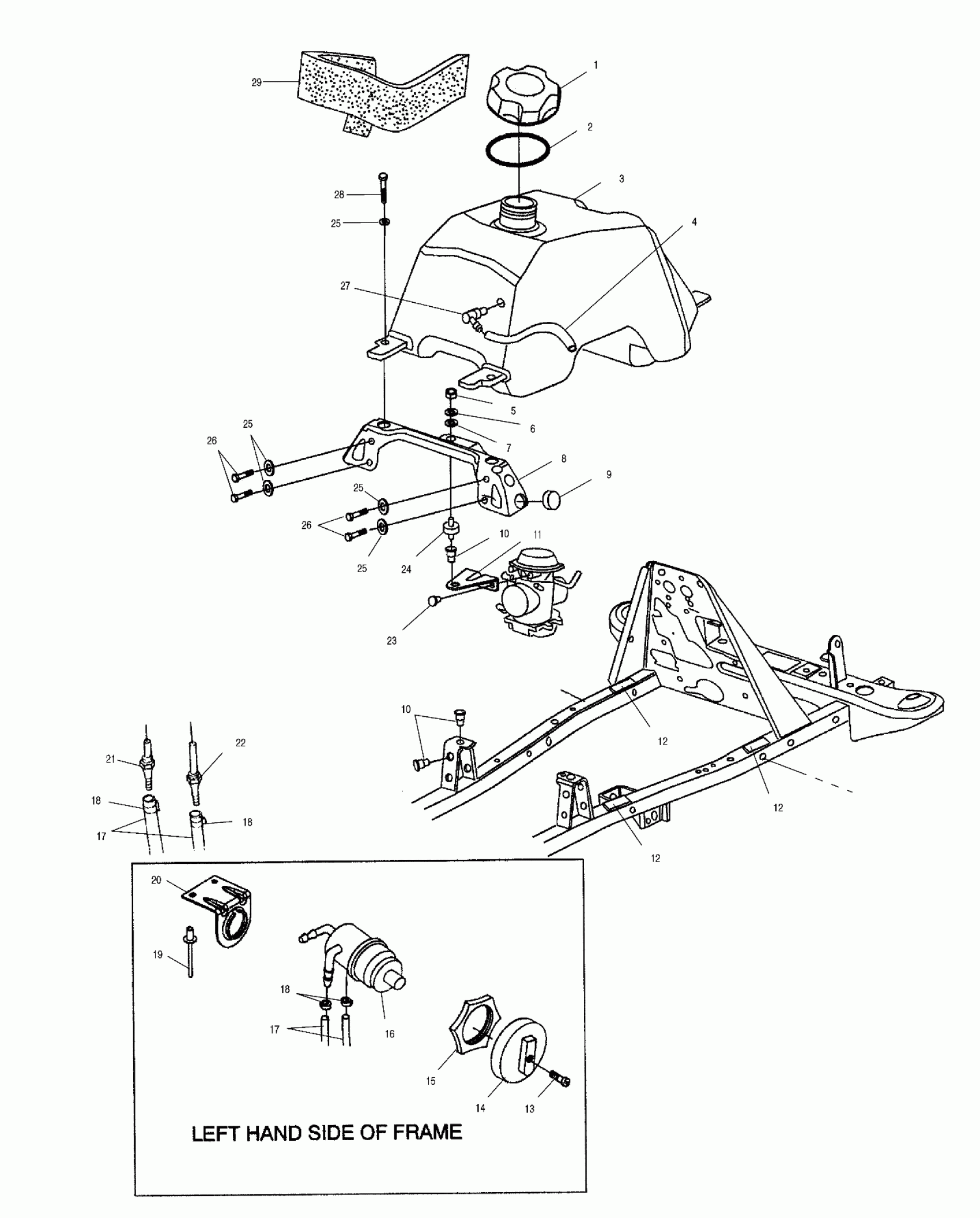

Polaris XPEDITION 325 - A02CK32AA FUEL TANK and CARBURETOR MOUNTING - A02CK32AA (4970287028A13) Diagram

#

Description
Price

1

Cap, Gas Tank [Includes Gasket]

5433687

$20.22

2

GASKET

5812123

$5.65

3

Asm., Fuel Tank [Incl. 21,22,27]

2520174

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

NUT

7542105

$3.99

6

Washer, Split Lock

7552605

$5.27

7

Washer, Flat

7558201

$5.79

8

Bracket, Carburetor Support

5245672-067

$13.19

9

Bumper, Rubber

5410414

$3.19

10

Nutsert

7547069

$3.99

10

Nutsert

7547069

$3.99

11

Mount, Carb

5245674-067

Unavailable

12

Pad, Fuel Tank Bracket

5810317

Unavailable

12

Pad, Fuel Tank Bracket

5810317

Unavailable

12

Pad, Fuel Tank Bracket

5810317

Unavailable

13

Screw

7517505

$1.59

14

Knob, Fuel Valve

5432559

$10.39

15

Nut, Fuel Valve

5432733

Unavailable

16

Valve, 3-Way

7052161

$39.99

17

Line, Fuel

8450040-600

Unavailable

17

Line, Fuel

8450040-600

Unavailable

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

19

RIVET-3/16-.090-.290

7661637

$1.49

20

Bracket, Fuel Valve

5240577-067

Unavailable

21

Fitting, Fuel Outlet, Main

7052146

$27.99

22

Fitting, Fuel Outlet, Reserve

7052149

$23.99

23

Screw and Washer

3084205

$3.99

24

MOUNT, CARBURETOR

3110050

$12.99

25

Washer, Flat

7555859

$1.49

25

Washer, Flat

7555859

$1.49

25

Washer, Flat

7555859

$1.49

25

Washer, Flat

7555859

$1.49

26

Screw

7512276

$4.79

26

Screw

7512276

$4.79

27

Vent, Tank

5431053

$19.99

28

Screw

7512277

$4.79

29

Seal, Foam

5811899

Unavailable
