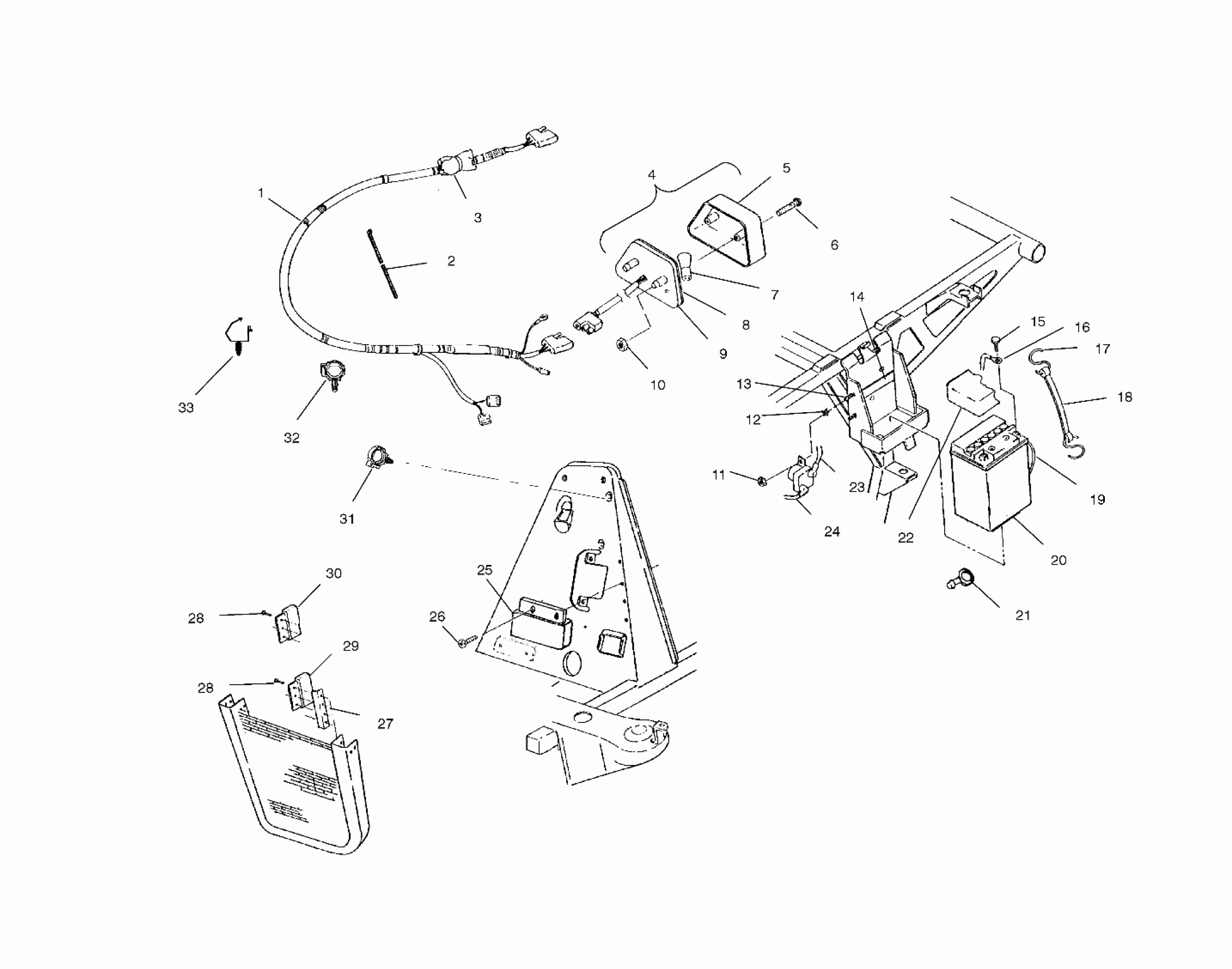

Polaris XPEDITION 325 - A02CK32AA ELECTRICAL/TAILLIGHT - A02CK32AA (4970287028B12) Diagram

#

Description
Price

1

Harness, Wire, Main

2460866

$297.62

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

Kit, Circuit Breaker, 10 AMP

2201795

$72.84

4

Asm., Taillight w/Brake Light [Incl. 5-10]

2410221

$38.41

5

Lens, Taillight

4032046

$32.37

6

Screw, Taillight

4032029

$4.76

7

Bulb, Taillight

4030043

$6.46

8

Gasket, Taillight

4032045

$4.03

9

Backing, Taillight/Brake Light

4032064

$83.33

10

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

11

Nut, Nylok

7541925

$0.79

12

Washer

7571602

$4.76

13

Screw

7512027

$1.19

14

PAD-BATTERY

5810290

$7.27

15

Kit, Battery Bolt, Short

2200361

Unavailable

16

Cable, Battery/Engine

4010095

Unavailable

17

Hook, Strap, Battery

7010032

$1.59

18

Strap, Holddown, Battery

5410424

$4.84

19

Tube, Vent, Battery

5432077

Unavailable

20

Battery

4140006

$99.99

21

Clip

7670102

$2.38

22

Cover, Battery

5431769

$15.37

23

Cable, Battery/Solenoid

4010094

Unavailable

24

Cable, Solenoid/Starter

4010093

$48.56

25

Switch, Thermister

4010249

Unavailable

26

Screw

7512017

$4.76

27

Sink, Heat

5132214

$8.17

28

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

28

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

29

Rectifier, Regulator, LR 35

4060191

Unavailable

30

Switch, LR-84

4010285

Unavailable

31

CLIP, ROSEBUD

4020139

$4.76

32

Clip, Rosebud

4020149

$6.35

33

CLIP, ROUTING

7670109

$2.38
