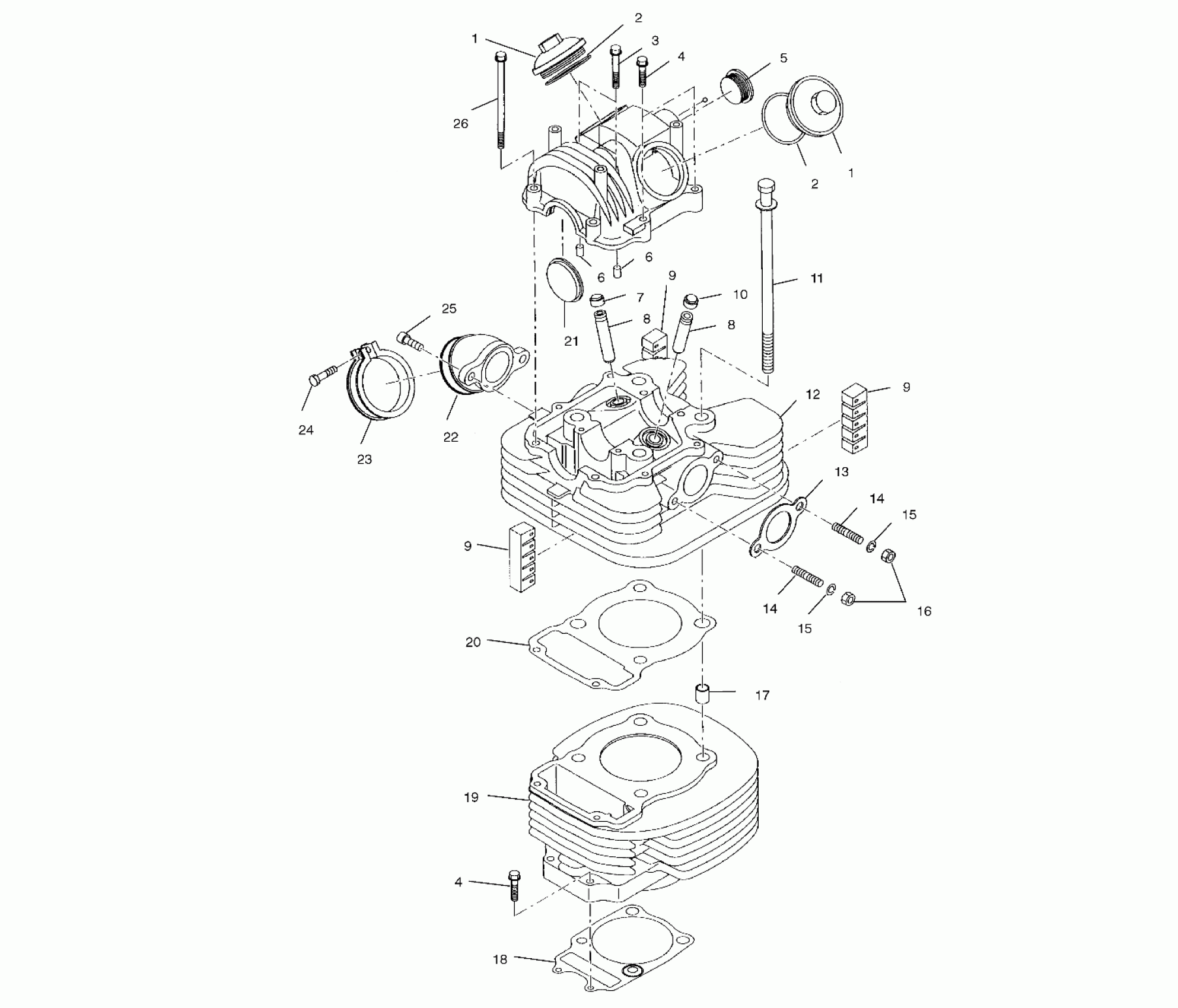

Polaris XPEDITION 325 - A02CK32AA CYLINDER - A02CK32AA (4970287028C07) Diagram

#

Description
Price

1

Cover, Valve

3086413

Unavailable

1

Cover, Valve

3086413

Unavailable

2

O-Ring

3086414

Unavailable

2

O-Ring

3086414

Unavailable

3

Bolt, Flange

3086412

$3.97

4

BOLT, FLANGE

3084874

Unavailable

4

BOLT, FLANGE

3084874

Unavailable

5

Plug, Cylinder Block

3086417

Unavailable

6

Pin, Straight

3086410

Unavailable

6

Pin, Straight

3086410

Unavailable

7

Seal, Intake Valve

3084858

$13.75

8

GUIDE, VALVE

3084994

Unavailable

8

GUIDE, VALVE

3084994

Unavailable

9

Fin Damper A

3084798

$36.41

9

Fin Damper A

3084798

$36.41

9

Fin Damper A

3084798

$36.41

10

SEAL, EXHAUST VALVE

3084859

$24.27

11

Bolt and Washer

3086418

$12.99

12

Asm., Cylinder Head [Incl. 3,4,6-10, 12,14]

3086796

Unavailable

13

Gasket, Exhaust

3086421

Unavailable

14

Stud

3085326

Unavailable

14

Stud

3085326

Unavailable

15

Washer, Lock

3080530

$3.17

15

Washer, Lock

3080530

$3.17

16

Nut

3080285

Unavailable

17

Pin, Straight

3084838

Unavailable

18

Gasket, Cylinder

3086407

$32.37

19

Cylinder

3086883

Unavailable

20

Gasket, Head

3086415

Unavailable

21

Gasket, Cam

3086416

Unavailable

22

Adapter

3087050

$72.84

23

Asm., Adapter Band [Incl. 24]

3083166

$19.84

24

SCREW

3081497

$2.38

25

Bolt

3081330

$3.97

26

Bolt, Flange

3086419

Unavailable
