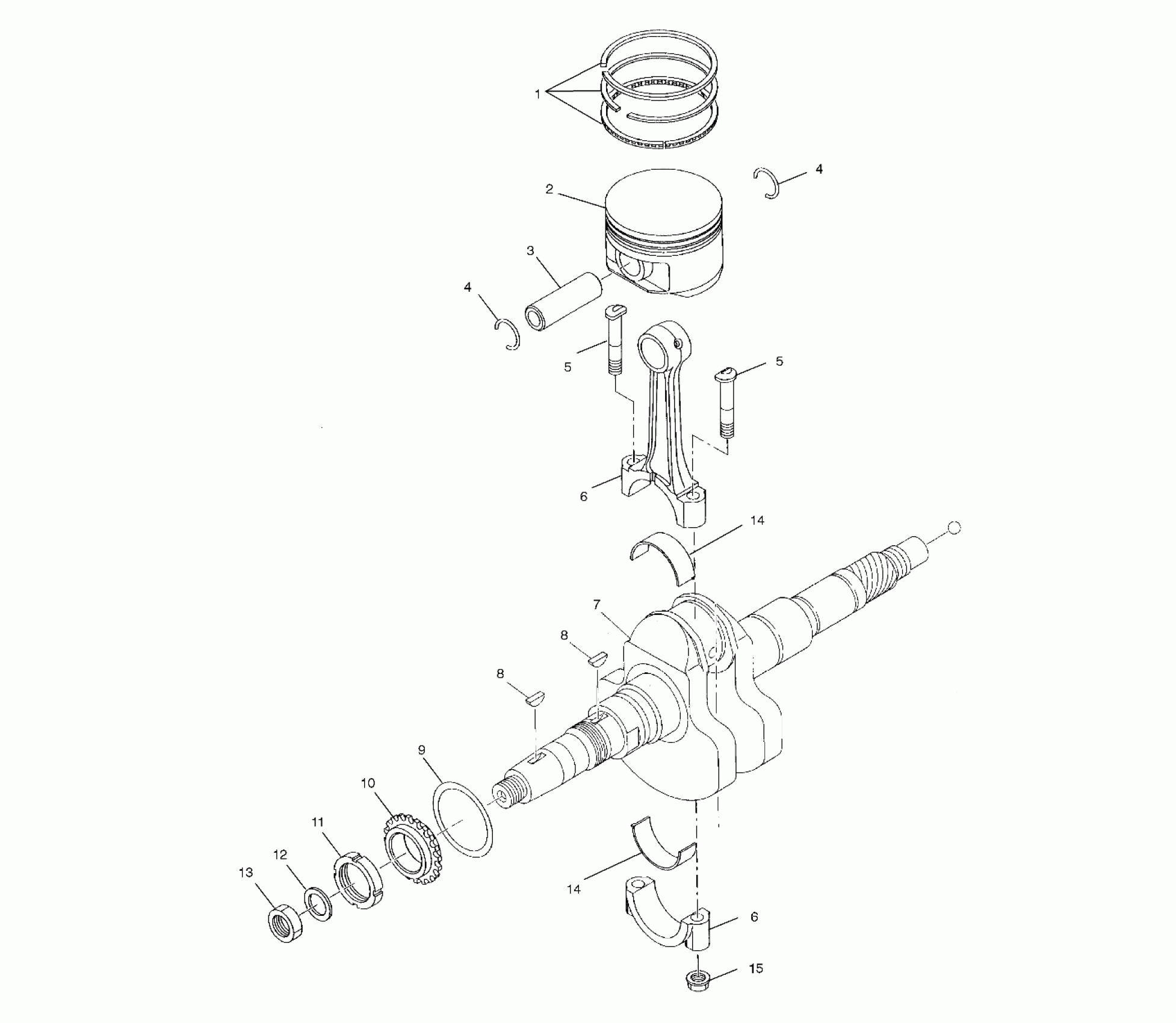

Polaris XPEDITION 325 - A02CK32AA CRANKSHAFT and PISTON - A02CK32AA (4970287028C08) Diagram

#

Description
Price

1

Piston Ring Set [STD]

3085774

Unavailable

1

Piston Ring Set [0.25 O/S]

3085775

Unavailable

1

Piston Ring Set [0.50 O/S]

3085776

Unavailable

2

Piston Set [STD][Incl. 4]

3086800

Unavailable

2

Piston Set [0.25 O/S][Incl. 4]

3086801

$100.79

2

Piston Set [0.50 O/S][Incl. 4]

3086802

$120.94

3

Pin, Piston

3086846

Unavailable

4

Clip

3084167

$6.39

4

Clip

3084167

$6.39

5

Bolt

3086425

Unavailable

5

Bolt

3086425

Unavailable

6

Asm., Connecting Rod [Incl. 5,15]

3087151

Unavailable

6

Asm., Connecting Rod [Incl. 5,15]

3087151

Unavailable

7

Crankshaft

3087075

$549.98

8

KEY, WOODRUFF

3240168

$19.99

8

KEY, WOODRUFF

3240168

$19.99

9

Spacer

3086888

$4.55

9

Spacer

3086889

$4.55

9

Spacer

3086890

Unavailable

9

Spacer

3086891

$4.39

10

Sprocket 1

3086492

$27.99

11

Nut

3085528

$35.99

12

Washer

3083904

Unavailable

13

Nut

3083905

Unavailable

14

Bearing [STD]

3086427

Unavailable

14

Bearing [0.05 U/S]

3086798

Unavailable

14

Bearing [0.25 U/S]

3086799

$15.99

14

Bearing [STD]

3086427

Unavailable

14

Bearing [0.05 U/S]

3086798

Unavailable

14

Bearing [0.25 U/S]

3086799

$15.99

15

Nut

3086426

$4.79
