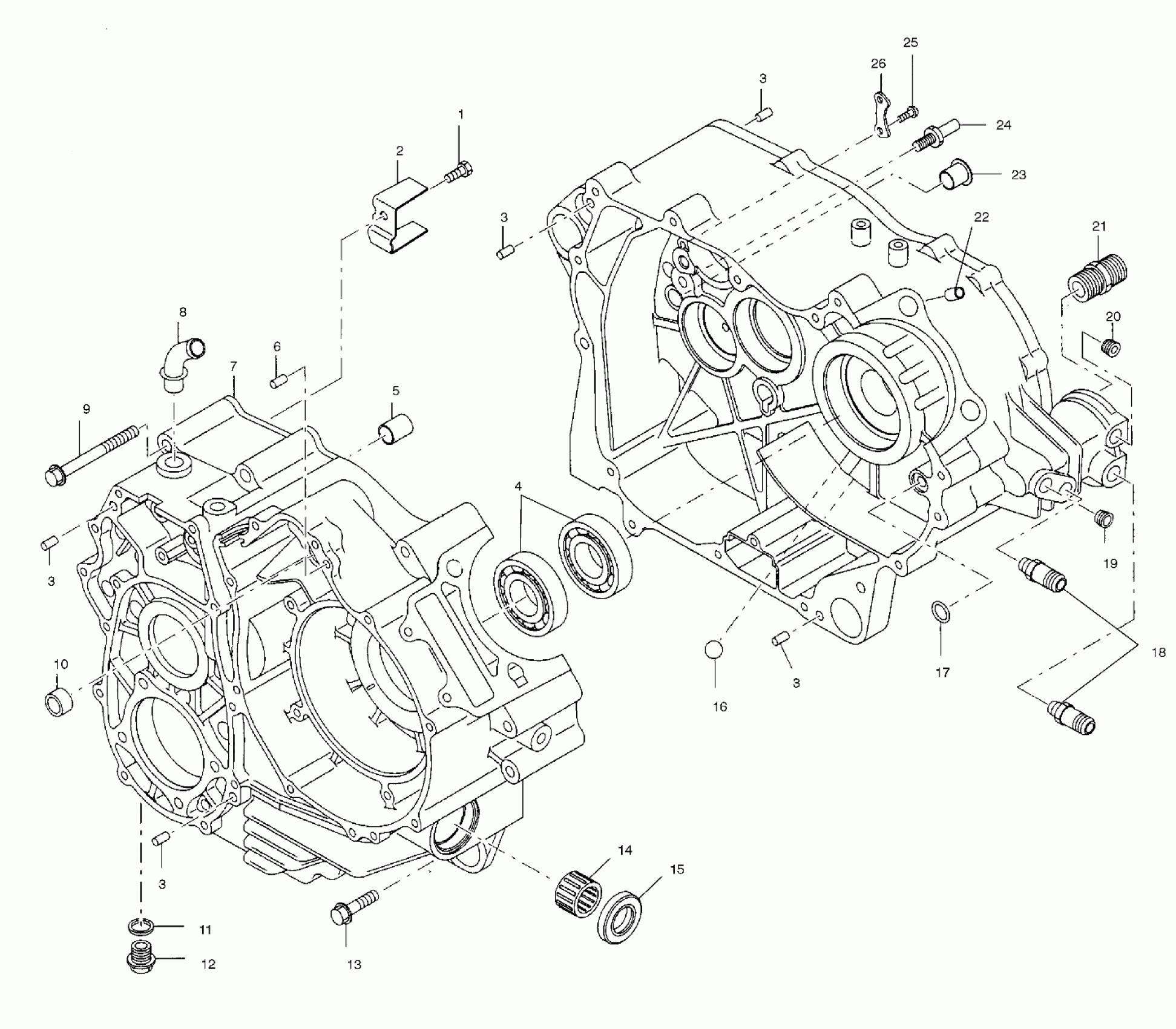

Polaris XPEDITION 325 - A02CK32AA CRANKCASE - A02CK32AA (4970287028C06) Diagram

#

Description
Price

1

Bolt

3087035

$3.85

2

Plate, Partition

3086881

$11.59

3

Pin, Dowel

3084840

Unavailable

3

Pin, Dowel

3084840

Unavailable

3

Pin, Dowel

3084840

Unavailable

3

Pin, Dowel

3084840

Unavailable

3

Pin, Dowel

3084840

Unavailable

4

BEARING, BALL

3085815

$43.99

5

Bush

3086193

$5.51

6

Pin, Dowel

3080103

$7.14

7

Asm., Crankcase [Incl. 3-10,13-16,19,20,23-26]

3086879

$919.99

8

Pipe

3085850

$51.99

9

BOLT, FLANGE

3084841

Unavailable

10

BUSHING, STARTER

3083669

Unavailable

11

GASKET

3082956

$4.84

12

PLUG

3083453

Unavailable

13

Bolt, Flange

3085295

$2.63

14

Bearing, Needle

3086191

Unavailable

15

Seal, Oil

3086192

Unavailable

16

Ball, Steel

3086194

$1.83

17

O-Ring

3086880

$1.19

18

Union

3087066

$39.99

19

Plug

3086397

Unavailable

20

PLUG, BLIND

3084862

Unavailable

21

Union, Oil Pump

3084849

Unavailable

22

Pin, Straight

3084838

Unavailable

23

Bushing

3086197

$9.83

24

Pin, Stopper

3086195

$11.43

25

Screw

3081890

$0.79

26

Bearing, Plate

3086196

$16.47
