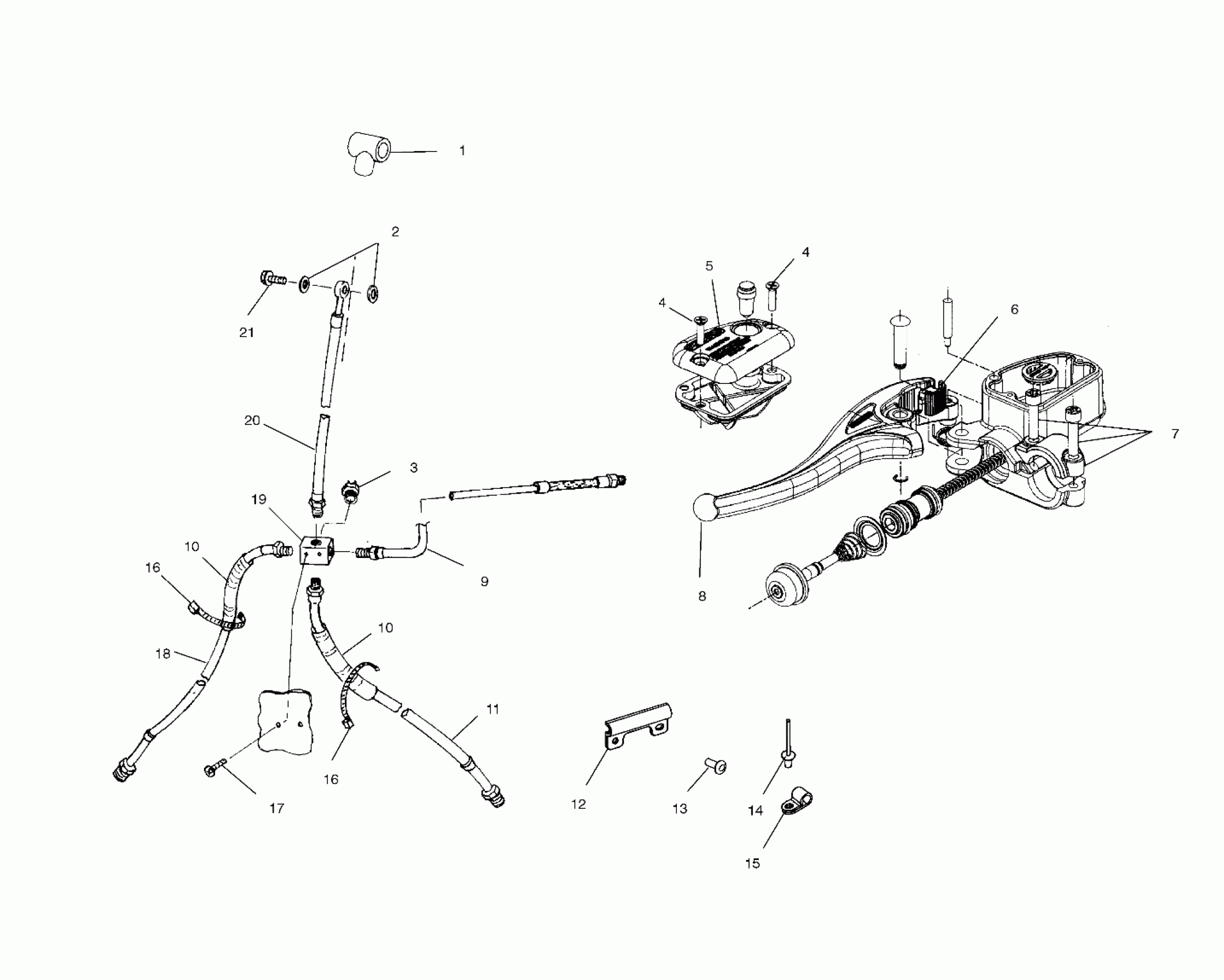

Polaris XPEDITION 325 - A02CK32AA CONTROLS - MASTER CYLINDER/BRAKE LINE - A02CK32AA (4970287028B08) Diagram

#

Description
Price

-

Asm., Master Cylinder

2010196

$246.89

1

Boot, Brake Line, Rubber

5411297

$2.06

2

Seal

5410988

$4.84

3

SWITCH

4110164

$204.24

4

SCREW

7517899

$1.19

4

SCREW

7517899

$1.19

5

Kit, Master Cylinder Cap [Incl. Cap, Screws, Sight, Gasket]

2201834

$52.60

6

KIT, MASTER CYLINDER PARK BRAKE LEVER [INCL. LEVER, SPRING]

2201836

$44.51

7

KIT, MASTER CYLINDER CLAMP [INCL. CLAMP, SCREWS]

2201833

$47.62

8

KIT, MASTER CYLINDER LEVER [INCL. PIN, LEVER, CLIP]

2201835

$60.70

9

Line, Brake

1910565

Unavailable

10

Conduit

8360031-34

Unavailable

10

Conduit

8360031-34

Unavailable

11

Line, Brake, Left Front

1910474

$89.03

12

Clamp, Brake Line

5434041

Unavailable

13

Screw

7512084

$1.19

14

Rivet

7621462

$1.19

15

Clamp, Nylon

7080539

$4.76

16

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

17

SCREW

7512024

$4.76

18

Line, Brake, Right Front

1910475

$89.03

19

FITTING, CROSS

7052292

$39.68

20

Line, Brake, Stainless Steel

1910470

$89.03

21

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94
