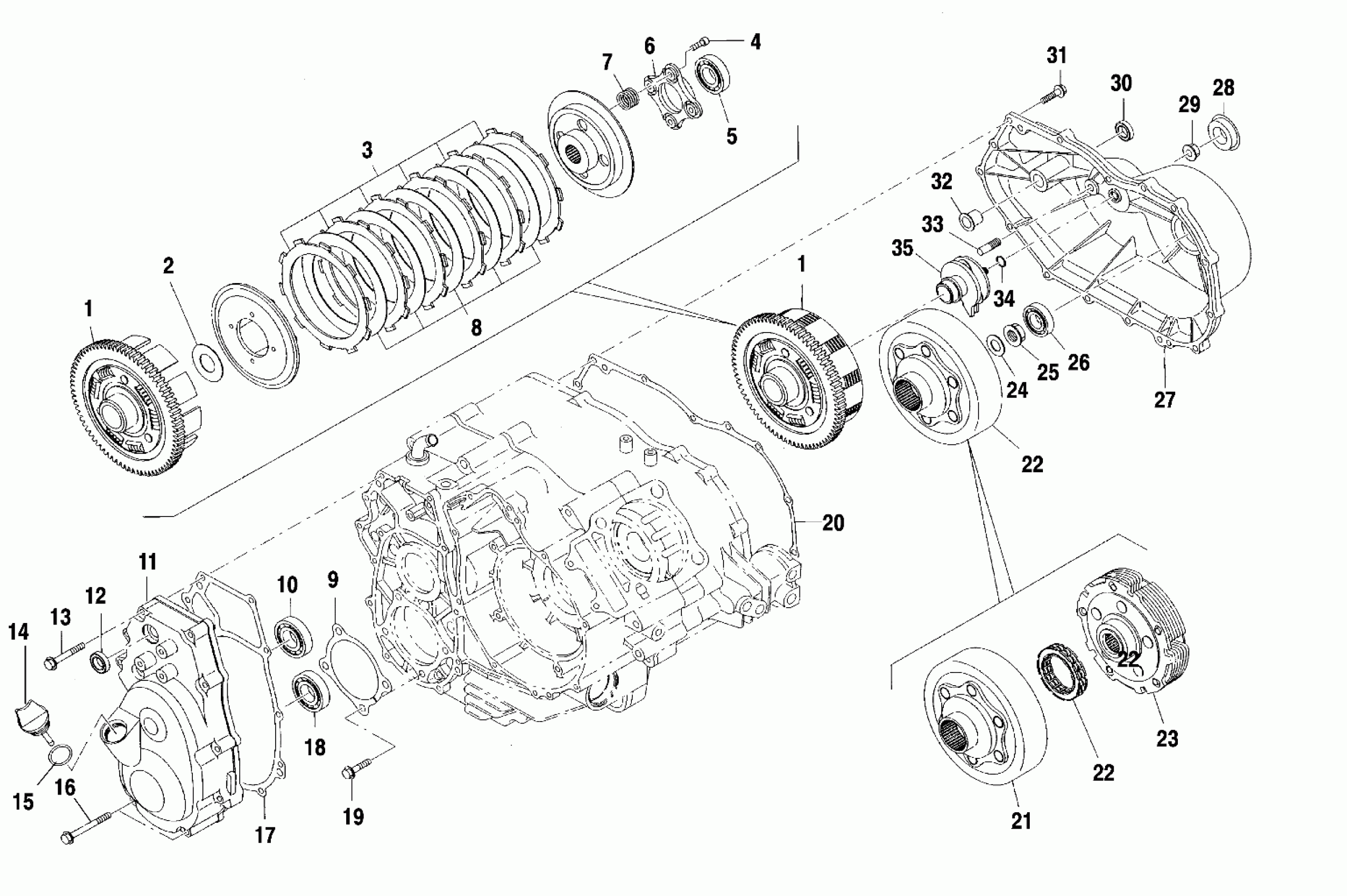

Polaris XPEDITION 325 - A02CK32AA CLUTCH - A02CK32AA (4970287028D04) Diagram

#

Description
Price

1

Asm., Clutch [Incl. 1-8]

3086913

Unavailable

1

Outer

3086914

$229.37

1

Asm., Clutch [Incl. 1-8]

3086913

Unavailable

1

Outer

3086914

$229.37

2

Washer, Thrust

3086278

$7.94

3

Disk, Clutch

3086276

Unavailable

4

Bolt, Socket

3086281

Unavailable

5

Bearing, Ball

3086282

Unavailable

6

Plate, Lifter

3086280

Unavailable

7

Spring

3086279

$11.51

8

Plate, Clutch

3086277

Unavailable

9

Shim, Drive Pinion [.15]

3086263

$3.17

9

Shim, Drive Pinion [.2]

3086264

Unavailable

9

Shim, Drive Pinion [.25]

3086265

$3.17

9

Shim, Drive Pinion [.3]

3086266

Unavailable

9

Shim, Drive Pinion [.5]

3086267

$3.17

9

Shim, Drive Pinion [.175]

3086268

$3.17

9

Shim, Drive Pinion [.225]

3086269

$3.02

9

Shim, Drive Pinion [.275]

3086270

Unavailable

10

Bearing, Ball

3086261

Unavailable

11

Asm., Reduction Cover [Incl. 10-12,14,15,18]

3086908

$369.05

11

Cover, Reduction

3086909

$139.68

12

Seal, Oil

3086258

Unavailable

13

Bolt, Flange

3086288

Unavailable

14

Plug

3086502

Unavailable

15

O-Ring

3086260

$2.46

16

Bolt, Flange

3084179

Unavailable

17

Gasket, Reduction Cover

3086915

$27.49

18

Bearing, Ball

3086503

Unavailable

19

Bolt, Flange

3086287

Unavailable

20

Gasket, Clutch Cover

3086916

Unavailable

21

Drum, Outer

3086911

Unavailable

22

Asm., Clutch [Incl. 21-23]

3086910

$436.51

22

Asm., Clutch [Incl. 21-23]

3086910

$436.51

23

Asm., Plate

3086912

Unavailable

24

Washer, Lock

3086381

$7.94

25

Nut, Lock

3086378

$35.71

26

Bearing, Ball

3086254

$20.63

27

Asm., Clutch Cover [Incl. 26,27,29,30,32-35]

3086906

$147.62

27

Cover, Clutch

3086907

$147.62

28

Plug, Blind

3086255

Unavailable

29

Nut, Flange

3086253

$1.43

30

Seal, Oil

3086258

Unavailable

31

BOLT, FLANGE

3084874

Unavailable

32

Bushing, Flange

3086248

Unavailable

33

Pin, Clutch Cover

3086251

$18.10

34

O-Ring

3086252

$3.49

35

Lever, Release

3086250

Unavailable
