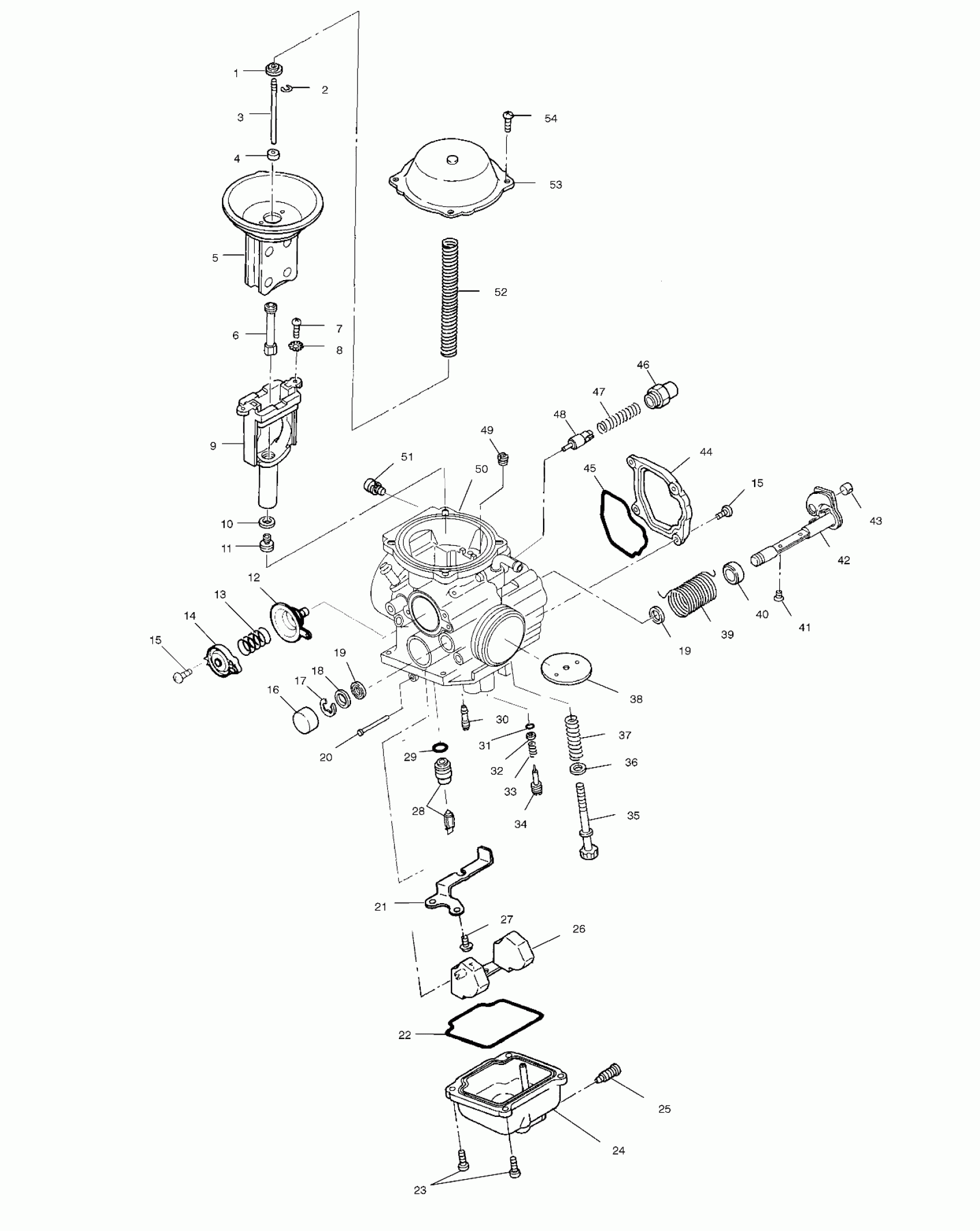

Polaris XPEDITION 325 - A02CK32AA CARBURETOR - A02CK32AA (4970287028C09) Diagram

#

Description
Price

1

RING

3130507

$5.59

2

E-RING

3130508

$6.46

3

Needle, Jet [J8-4HB40]

3130962

$27.99

4

RING

3130752

$5.59

5

Asm., Diaphragm

3130732

$123.99

6

Jet, Needle

3131130

Unavailable

7

SCREW

3130541

$11.19

8

WASHER, SPRING

3130540

$4.79

9

Asm., Jet Block

3131128

Unavailable

10

WASHER

3130014

$1.59

11

Jet, Main [#152.5]

3130570

$7.99

12

Diaphragm

3131115

Unavailable

13

Spring

3131116

$6.59

14

Cover

3131117

Unavailable

15

SCREW

3130535

$7.19

15

SCREW

3130535

$7.19

16

CAP

3130519

$10.39

17

E-RING

3130518

$1.59

18

PACKING

-------

Unavailable

19

SEAL

3130515

$11.99

19

SEAL

3130515

$11.99

20

PIN, FLOAT

3130361

$8.89

21

PLATE

3130594

$27.99

22

O-RING

3130532

$31.99

23

SCREW

3130520

$1.59

24

Asm., Float Body

3130590

$103.99

25

SCREW

3130521

$10.39

26

ASM., FLOAT

3130529

$79.99

27

SCREW

3130591

$3.99

28

Valve, Needle [1.5]

3131360

$47.99

29

O-RING

3130533

$5.59

30

Jet, Pilot [#47.5]

3131226

Unavailable

31

O-Ring

3130522

$5.65

32

Washer

3130523

$2.39

33

Spring

3130525

$4.79

34

Adjuster

3131131

$12.99

35

Screw, Adjust

3130546

$13.59

36

Ring

3130545

$12.13

37

Spring

3130544

$9.59

38

Valve, Throttle [120]

3131126

Unavailable

39

SPRING

3130589

$23.99

40

Ring

3130514

$7.19

41

SCREW

3130501

$3.99

42

Asm., Throttle Shaft

3130513

$79.99

43

GUIDE, CABLE

3130543

$27.99

44

COVER

3130511

$43.99

45

O-Ring

3130512

$39.99

46

Holder, Guide

3130199

$28.32

47

SPRING

3130538

$4.79

48

Asm., Plunger

3131228

$39.99

49

Jet, Air [#100]

3131229

$7.43

50

Asm., Carburetor [Incl. 1-14,16-42,46-54]

3131386

Unavailable

51

Screw and Washer

3084205

$3.99

52

Spring

3131129

$27.99

53

Asm., Cover

3131127

Unavailable

54

SCREW-MIKUNI C2=0408

3130592

Unavailable
