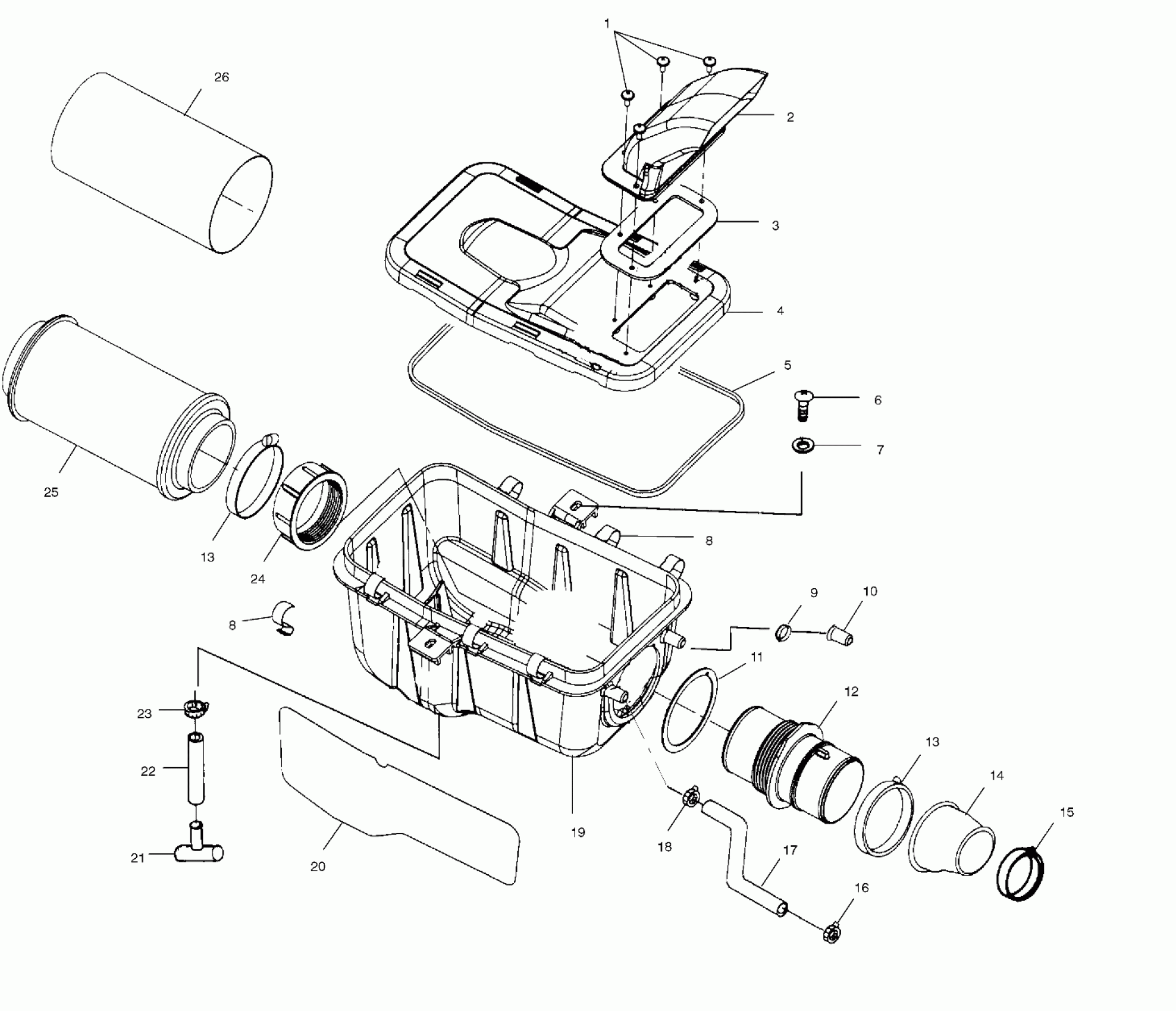

Polaris XPEDITION 325 - A02CK32AA AIR BOX - A02CK32AA (4970287028B01) Diagram

#

Description
Price

1

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

2

Duct, Inlet

5432859

Unavailable

3

Gasket, Intake

5411422

$6.63

4

Cover, Airbox

5432868

$51.99

5

Seal, Cover

5811482

Unavailable

6

Screw

7515179

$2.39

7

Washer, Flat

7558301

$1.49

8

Clip, Low Profile

5243694

Unavailable

8

Clip, Low Profile

5243694

Unavailable

9

Clamp

7080534

$1.59

10

Cap

5433396

$4.79

11

Gasket, Duct

5830128

Unavailable

12

Duct, Carburetor Inlet

5433180

$32.37

13

Clamp

7080413

$3.19

13

Clamp

7080413

$3.19

14

Boot, Carburetor

5411810

Unavailable

15

Clamp

7080511

$4.79

16

Clamp

7080694

$6.53

17

Hose, Breather

5411866

$11.59

18

Clamp

7080699

$1.59

19

Airbox

5433678

$127.99

20

Foil, Airbox

5811650

Unavailable

21

Plug

5432377

Unavailable

22

Line, Fuel

8450059-150

Unavailable

23

Clamp, Hose

7080650

$3.99

24

Collar, Carburetor Inlet

5432601

$12.79

25

FILTER, AIR INTAKE

7080595

Unavailable

26

Filter, Sleeve, Precleaner

5811633

$11.99
